Spheros - SP6000FB
Spheros

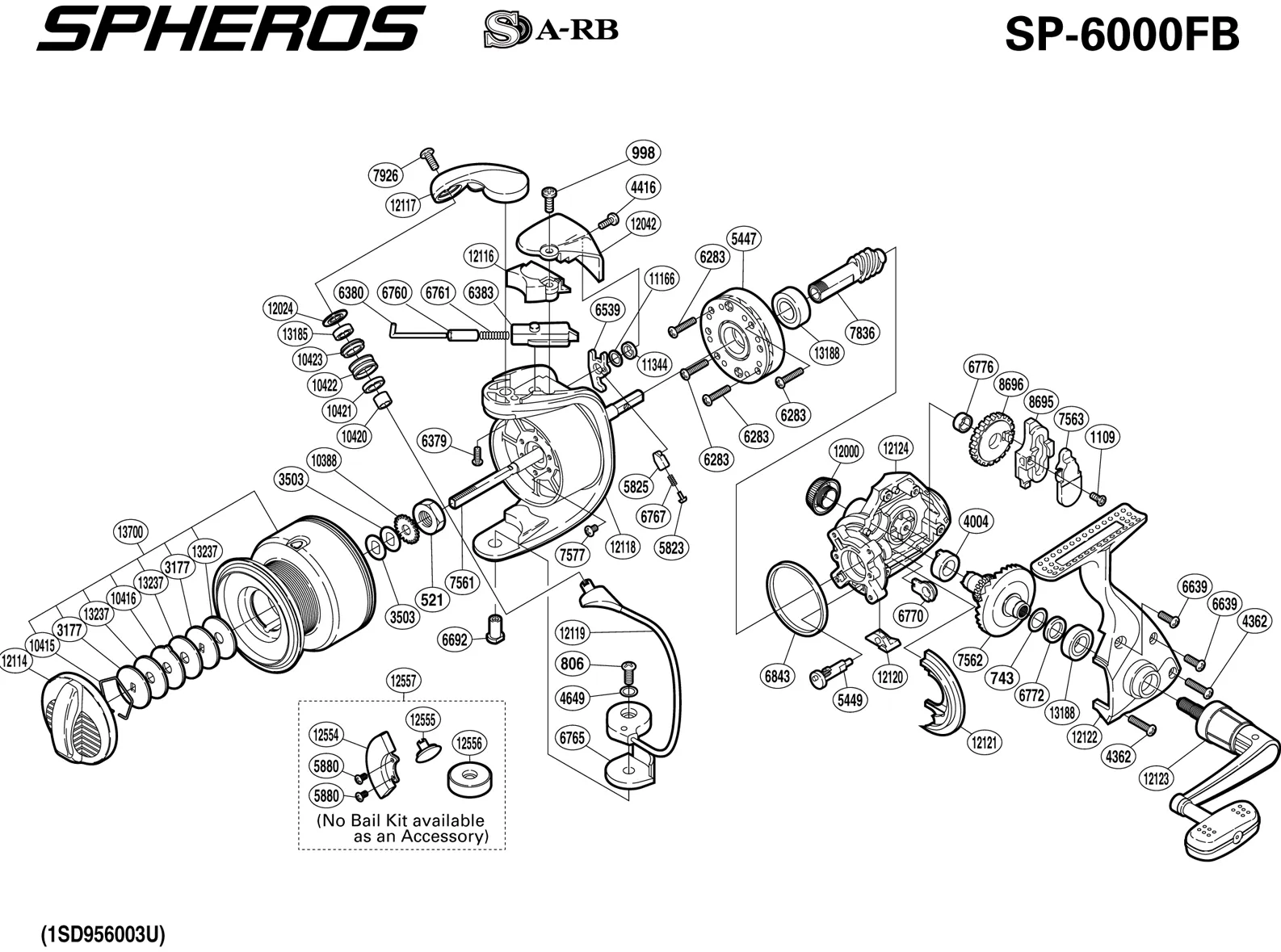

Spheros - SP6000FB: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0521 | ROTOR NUT |
| RD 0743 | DRIVE GEAR WASHER |
| RD 0806 | LINE ROLLER SCREW |
| RD 0998 | ANTI-REVERSE PAWL SCREW |
| RD 1109 | SLIDER RETAINER SCREW |
| RD 3503 | SPOOL WASHER |
| RD 4004 | DRIVE GEAR BUSHING |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4416 TGT0585 | BAIL ARM SCREW |
| RD 4649 | SPACER |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5449 | ANTI-REVERSE CAM |
| RD 5823 | LEVER SPRING GUIDE (A) |
| RD 5825 | LEVER SPRING GUIDE (B) |
| RD 6283 | ROLLER CLUTCH SCREW |
| RD 6379 | BAIL ARM SCREW |
| RD 6380 | BAIL SPRING GUIDE (A) |
| RD 6383 | BAIL SPRING GUIDE (B) |
| RD 6539 | BAIL TRIP LEVER |
| RD 6639 | SIDE COVER SCREW (SHORT) |
| RD 6692 | BAIL HOLD SUPPORT SHAFT |
| RD 6760 | BAIL SPRING GUIDE (A) COLLAR |
| RD 6761 | BAIL SPRING |
| RD 6765 | BAIL HOLD SUPPORT SPACER |
| RD 6767 | BAIL TRIP LEVER SPRING |
| RD 6770 | BUSHING |
| RD 6772 | DRIVE GEAR SPACER |
| RD 6776 | OSCILLATING GEAR BUSHING |
| RD 6843 | FRICTION RING |
| RD 7561 | MAIN SHAFT |
| Part Number | Part Description |
| RD 0521 | ROTOR NUT |
| RD 0743 | DRIVE GEAR WASHER |
| RD 0806 | LINE ROLLER SCREW |
| RD 0998 | ANTI-REVERSE PAWL SCREW |
| RD 1109 | SLIDER RETAINER SCREW |
| RD 3503 | SPOOL WASHER |
| RD 4004 | DRIVE GEAR BUSHING |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4416 TGT0585 | BAIL ARM SCREW |
| RD 4649 | SPACER |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5449 | ANTI-REVERSE CAM |
| RD 5823 | LEVER SPRING GUIDE (A) |
| RD 5825 | LEVER SPRING GUIDE (B) |
| RD 6283 | ROLLER CLUTCH SCREW |
| RD 6379 | BAIL ARM SCREW |
| RD 6380 | BAIL SPRING GUIDE (A) |
| RD 6383 | BAIL SPRING GUIDE (B) |
| RD 6539 | BAIL TRIP LEVER |
| RD 6639 | SIDE COVER SCREW (SHORT) |
| RD 6692 | BAIL HOLD SUPPORT SHAFT |
| RD 6760 | BAIL SPRING GUIDE (A) COLLAR |
| RD 6761 | BAIL SPRING |
| RD 6765 | BAIL HOLD SUPPORT SPACER |
| RD 6767 | BAIL TRIP LEVER SPRING |
| RD 6770 | BUSHING |
| RD 6772 | DRIVE GEAR SPACER |
| RD 6776 | OSCILLATING GEAR BUSHING |
| RD 6843 | FRICTION RING |
| RD 7561 | MAIN SHAFT |
