STELLA SW - STL18000SWBHG
STELLA SW

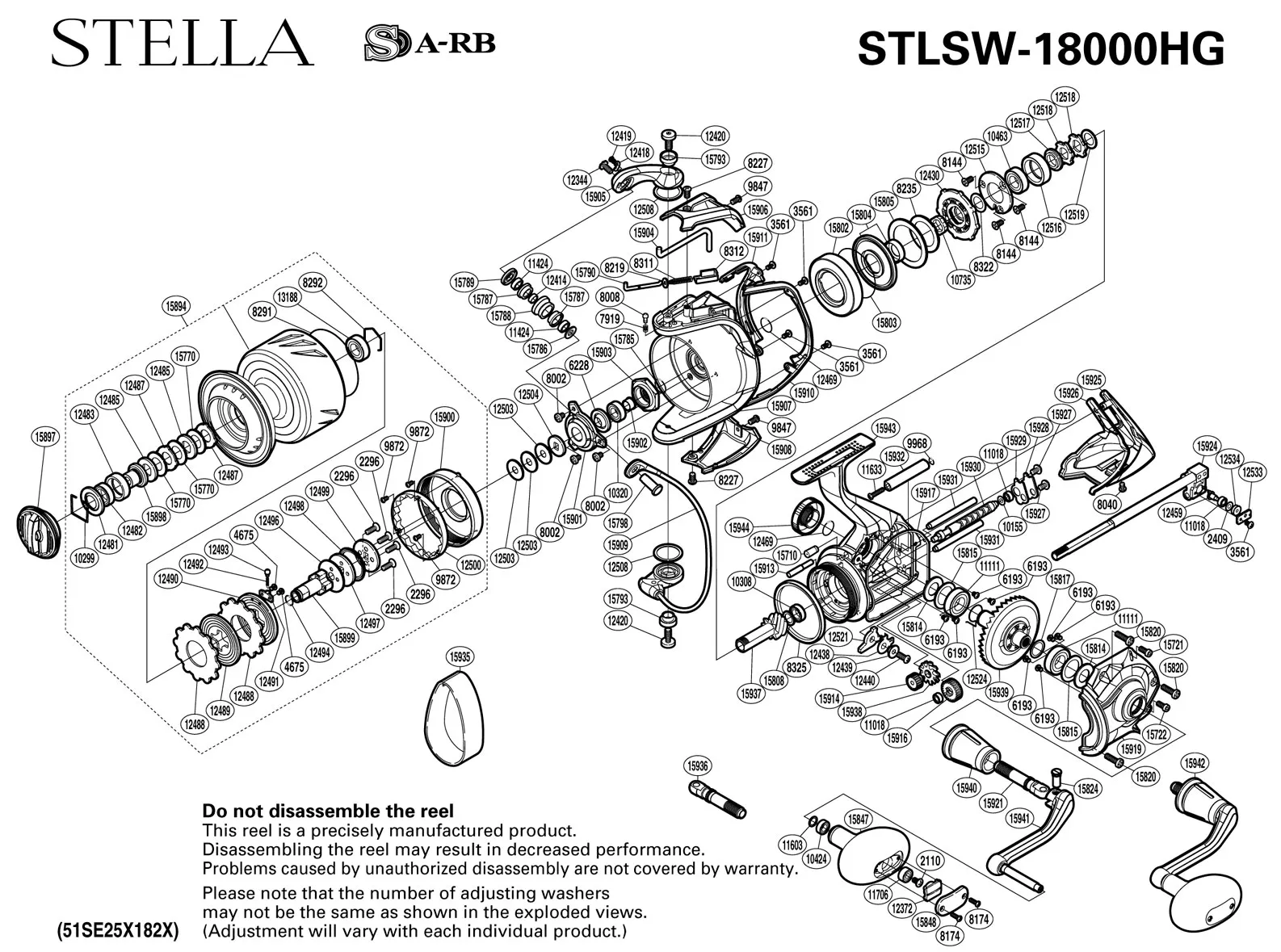

STELLA SW - STL18000SWBHG: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 2110 | SLIDER RETAINER SCREW |
| RD 2296 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3561 TT 0632 | ANTI-REVERSE CAM SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 6193 TT 0594 | BEARING SCREW |
| RD 6228 | BEARING WATER PROOF (B) |
| RD 7919 | CLICK SPRING |
| RD 8002 | NUT LOCK SCREW |
| RD 8008 | CLICK PIN |
| RD 8040 | GEAR COVER SCREW |
| RD 8144 | BEARING RETAINER SCREW |
| RD 8174 | HANDLE KNOB SCREW |
| RD 8219 | SPRING GUIDE (A) SUPPORT |
| RD 8227 | PROTECTOR SCREW (A) |
| RD 8235 | ROLLER CLUTCH REINFORCE |
| RD 8291 | O RING |
| RD 8292 | BEARING RETAINER |
| RD 8311 | BAIL SPRING |
| RD 8312 | BAIL SPRING SEAT |
| RD 8322 | ADJUSTING WASHER |
| RD 8325 | FRICTION RING |
| RD 9847 | SCREW |
| RD 9872 | SCREW |
| RD 9968 | O RING |
| RD10155 | SPACER |
| RD10299 | DRAG WASHERS RETAINER |
| RD10308 | BALL BEARING MADE IN JAPAN |
| RD10320 RD13241 | BALL BEARING |
| RD10424 BNT3819 | BALL BEARING |
| RD10463 | BALL BEARING |
| RD10735 | STOPPER |
| RD11018 | BALL BEARING MADE IN JAPAN |
| RD11111 | BALL BEARING MADE IN JAPAN |
| RD11424 BNT3633 | BALL BEARING |
| RD11603 | WASHER |
| RD11633 | SCREW |
| RD11706 | BALL BEARING |
| RD12344 | SCREW |
| RD12372 | HANDLE KNOB SEAL |
| RD12414 | BEARING SPACER |
| RD12418 | SCREW RETAINER |
| RD12419 | SCREW SUPPORT |
| RD12420 | SCREW |
| RD12430 | ROLLER CLUTCH ASSEMBLY |
| RD12438 | ANTI-REVERSE PAWL COVER |
| RD12439 | ANTI-REVERSE PAWL COLLAR |
| RD12440 | SCREW |
| RD12459 | OSCILLATING PAWL |
| RD12469 | O RING |
| RD12481 | SEAL PLATE |
| RD12482 | BALL BEARING MADE IN JAPAN |
| RD12483 | THRUST BUSHING |
| RD12485 | KEY WASHER |
| RD12487 | EARED WASHER |
| RD12488 | DRAG WASHER |
| RD12489 | SPOOL DRAG DISK |
| RD12490 | SPOOL DRAG DISK |
| RD12491 | CLICK SPRING HOLDER |
| RD12492 | CLICK SPRING |
| RD12493 | CLICK PIN |
| RD12494 | O RING |
| RD12496 | SPOOL SUPPORT C |
| RD12497 | SPOOL SUPPORT A |
| RD12498 | BEARING WATER PROOF |
| RD12499 | SPOOL SUPPORT B |
| RD12500 | DRAG CLICK RATCHET |
| RD12503 | SPOOL WASHER |
| RD12504 | SPOOL SUPPORT D |
| RD12508 | WASHER |
| RD12515 | BEARING RETAINER |
| RD12516 | BEARING HOUSING |
| RD12517 | PINION GEAR COLLAR |
