STELLA SW - STL6000SWBHG
STELLA SW

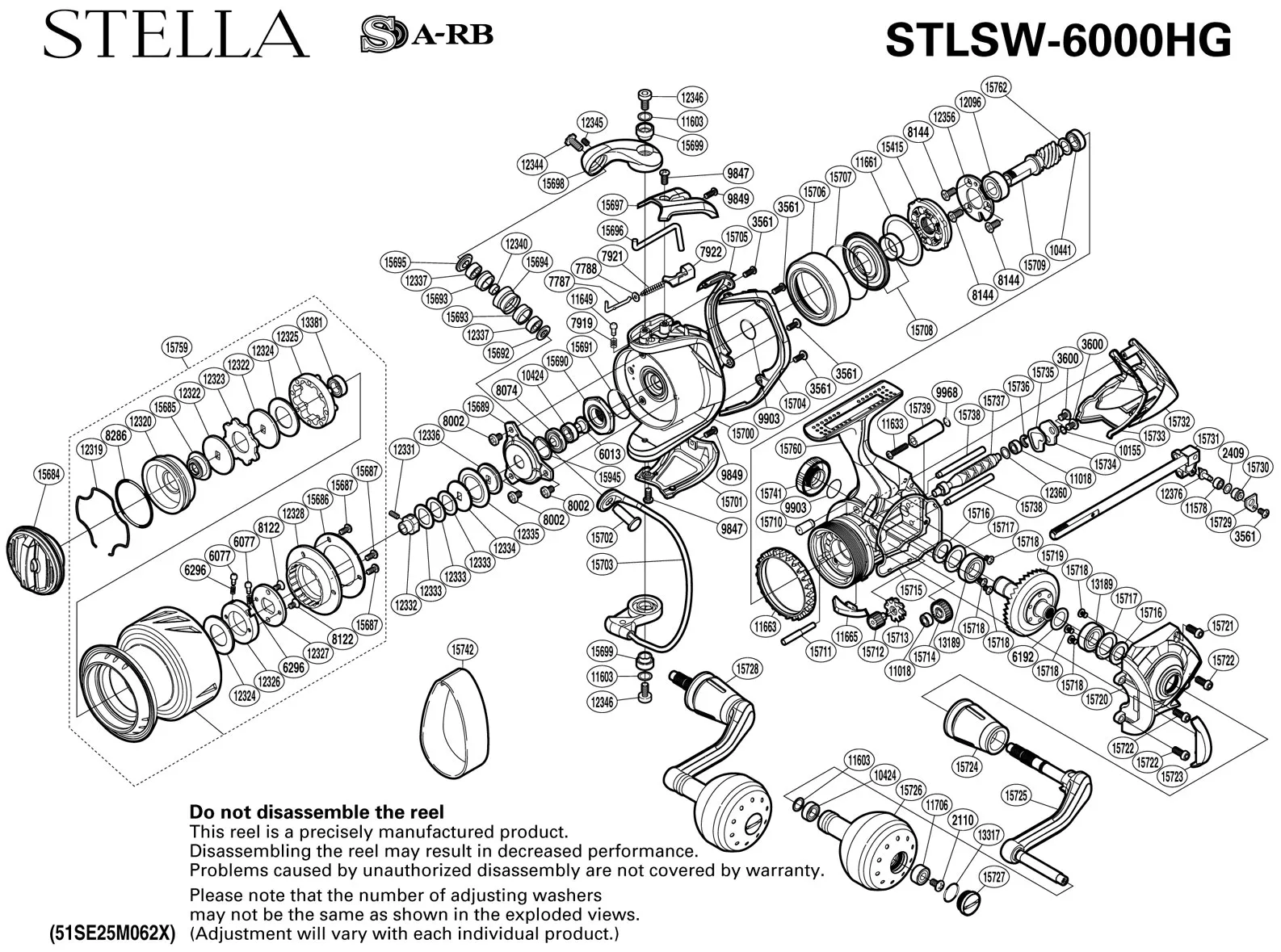

STELLA SW - STL6000SWBHG: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 2110 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3561 TT 0632 | ANTI-REVERSE CAM SCREW |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 6013 | MAIN SHAFT SPACER |
| RD 6077 TT 0479 | CLICK PIN |
| RD 6192 | DRIVE GEAR WASHER |
| RD 6296 | CLICK SPRING |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7788 | SPRING GUIDE (A) SUPPORT |
| RD 7919 | CLICK SPRING |
| RD 7921 | BAIL SPRING |
| RD 7922 | BAIL SPRING SEAT |
| RD 8002 | NUT LOCK SCREW |
| RD 8074 | BEARING WATER PROOF |
| RD 8122 | DRAG CLICK HOLDER COVER SCREW |
| RD 8144 | BEARING RETAINER SCREW |
| RD 8286 BNT3053 | """O"" RING" |
| RD 9847 | SCREW |
| RD 9849 | SCREW |
| RD 9903 | O RING |
| RD 9968 | O RING |
| RD10155 | SPACER |
| RD10424 BNT3819 | BALL BEARING |
| RD10441 | BALL BEARING MADE IN JAPAN |
| RD11018 | BALL BEARING MADE IN JAPAN |
| RD11578 | BALL BEARING |
| RD11603 | WASHER |
| RD11633 | SCREW |
| RD11649 | CLICK PIN |
| RD11661 | ROLLER CLUTCH OUTER SPACER |
| RD11663 | FRICTION RING |
| RD11665 | BAIL TRIP STRIKE |
| RD11706 | BALL BEARING |
| RD12096 | BALL BEARING |
| RD12319 | DRAG WASHERS RETAINER |
| RD12320 | THRUST BUSHING |
| RD12322 | KEY WASHER |
| RD12323 | EARED WASHER |
| RD12324 | DRAG WASHER |
| RD12325 | SPOOL BUSHING |
| RD12326 | DRAG CLICK HOLDER |
| RD12327 | DRAG CLICK HOLDER COVER |
| RD12328 | DRAG COVER |
| RD12331 | SET SCREW |
| RD12332 | BEARING BUSHING |
| RD12333 | SPOOL WASHER |
| RD12334 | SPOOL SUPPORT |
| RD12335 | BEARING WATER PROOF |
| RD12336 | SPOOL SUPPORT |
| RD12337 | BALL BEARING |
| RD12340 | BEARING SPACER |
| RD12344 | SCREW |
| RD12345 | SET SCREW |
| RD12346 | SCREW |
| RD12356 | BEARING RETAINER |
| RD12360 | WASHER |
| RD12376 | OSCILLATING PAWL |
| RD13189 | BALL BEARING MADE IN Thailand |
| RD13317 | O RING |
| RD13381 | BALL BEARING MADE IN Thailand |
| RD15415 | ROLLER CLUTCH ASSEMBLY |
| Part Number | Part Description |
| RD 2110 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3561 TT 0632 | ANTI-REVERSE CAM SCREW |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 6013 | MAIN SHAFT SPACER |
| RD 6077 TT 0479 | CLICK PIN |
| RD 6192 | DRIVE GEAR WASHER |
| RD 6296 | CLICK SPRING |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7788 | SPRING GUIDE (A) SUPPORT |
| RD 7919 | CLICK SPRING |
| RD 7921 | BAIL SPRING |
| RD 7922 | BAIL SPRING SEAT |
| RD 8002 | NUT LOCK SCREW |
| RD 8074 | BEARING WATER PROOF |
| RD 8122 | DRAG CLICK HOLDER COVER SCREW |
| RD 8144 | BEARING RETAINER SCREW |
| RD 8286 BNT3053 | """O"" RING" |
| RD 9847 | SCREW |
| RD 9849 | SCREW |
| RD 9903 | O RING |
| RD 9968 | O RING |
| RD10155 | SPACER |
| RD10424 BNT3819 | BALL BEARING |
| RD10441 | BALL BEARING MADE IN JAPAN |
| RD11018 | BALL BEARING MADE IN JAPAN |
| RD11578 | BALL BEARING |
| RD11603 | WASHER |
| RD11633 | SCREW |
| RD11649 | CLICK PIN |
| RD11661 | ROLLER CLUTCH OUTER SPACER |
| RD11663 | FRICTION RING |
| RD11665 | BAIL TRIP STRIKE |
| RD11706 | BALL BEARING |
| RD12096 | BALL BEARING |
| RD12319 | DRAG WASHERS RETAINER |
| RD12320 | THRUST BUSHING |
| RD12322 | KEY WASHER |
| RD12323 | EARED WASHER |
| RD12324 | DRAG WASHER |
| RD12325 | SPOOL BUSHING |
| RD12326 | DRAG CLICK HOLDER |
| RD12327 | DRAG CLICK HOLDER COVER |
| RD12328 | DRAG COVER |
| RD12331 | SET SCREW |
| RD12332 | BEARING BUSHING |
| RD12333 | SPOOL WASHER |
| RD12334 | SPOOL SUPPORT |
| RD12335 | BEARING WATER PROOF |
| RD12336 | SPOOL SUPPORT |
| RD12337 | BALL BEARING |
| RD12340 | BEARING SPACER |
| RD12344 | SCREW |
| RD12345 | SET SCREW |
| RD12346 | SCREW |
| RD12356 | BEARING RETAINER |
| RD12360 | WASHER |
| RD12376 | OSCILLATING PAWL |
| RD13189 | BALL BEARING MADE IN Thailand |
| RD13317 | O RING |
| RD13381 | BALL BEARING MADE IN Thailand |
| RD15415 | ROLLER CLUTCH ASSEMBLY |
