THUNNUS CI4 - TU12000CI4
THUNNUS CI4

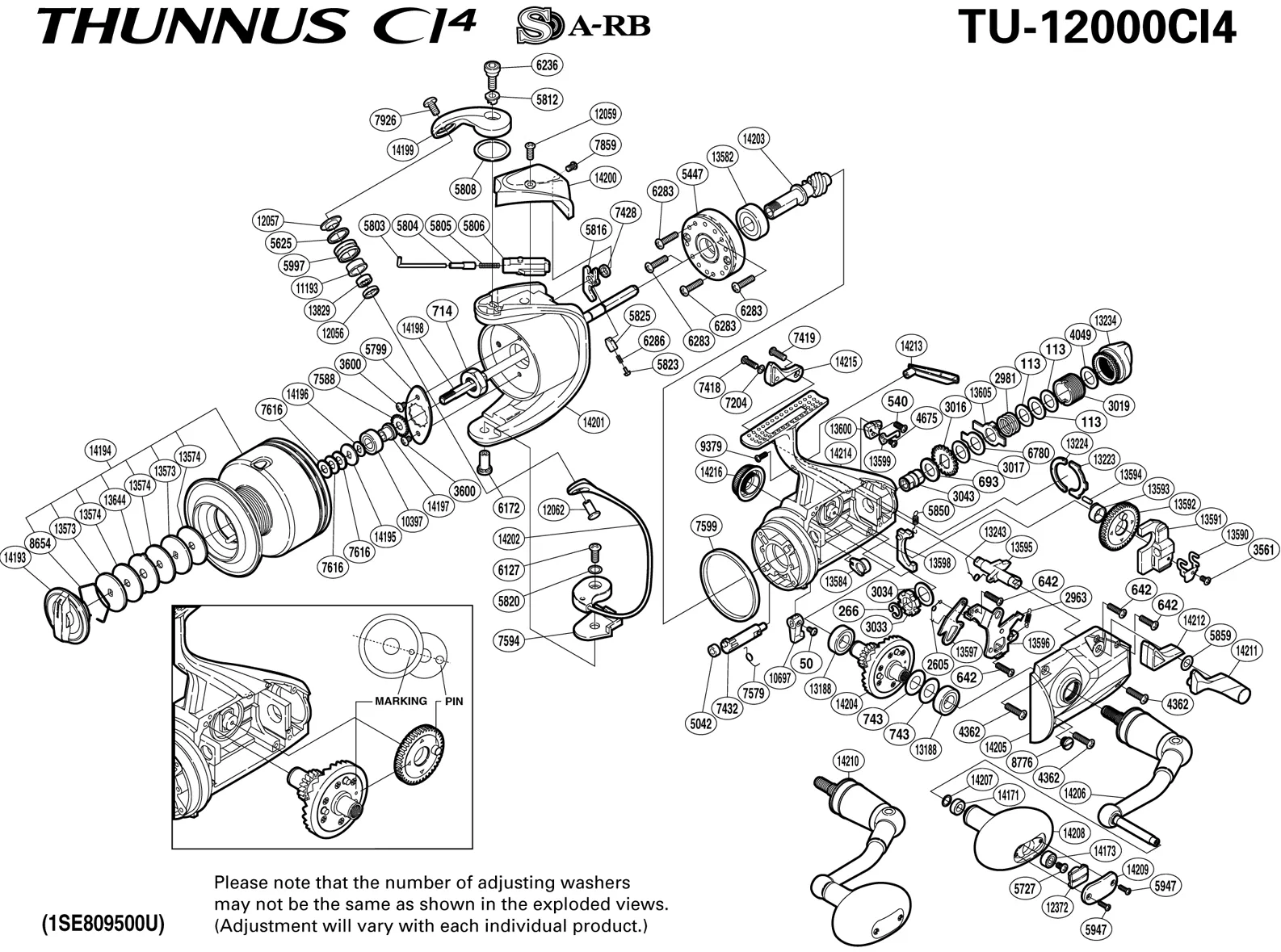

THUNNUS CI4 - TU12000CI4: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0050 BNT0191 | SCREW |
| RD 0113 | DRAG SPRING WASHER B |
| RD 0266 | CLICK GEAR "C" LOCK |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0693 | DRAG WASHER "C2" (WHITE) |
| RD 0714 | ROTOR NUT |
| RD 0743 | DRIVE GEAR WASHER |
| RD 2605 | CLUTCH PAWL SPRING |
| RD 2963 | BAITRUNNER CLICK SPRING |
| RD 2981 | FREE SPOOL TENSION SPRING |
| RD 3016 | CLICK GEAR |
| RD 3017 | FREE SPOOL TENSION SHAFT |
| RD 3019 | FREE SPOOL TENSION SCREW |
| RD 3033 | BAITRUNNER RATCHET |
| RD 3034 | RATCHET SPACER |
| RD 3043 | FREE SPOOL TENSION SHAFT |
| RD 3561 TT 0632 | ANTI-REVERSE CAM SCREW |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 4049 | DRAG SPRING WASHER |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 5042 | ANTI-REVERSE CAM RING |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5625 | LINE ROLLER SPACER |
| RD 5727 | SLIDER RETAINER SCREW (B) |
| RD 5799 | ROTOR NUT RETAINER |
| RD 5803 | BAIL SPRING GUIDE (A) |
| RD 5804 | SPRING GUIDE (A) SUPPORT |
| RD 5805 | BAIL SPRING |
| RD 5806 | BAIL SPRING GUIDE (B) |
| RD 5808 | BAIL ARM WASHER |
| RD 5812 | BAIL ARM SCREW COLLAR |
| RD 5816 | BAIL TRIP LEVER |
| RD 5820 | SPACER |
| RD 5823 | LEVER SPRING GUIDE (A) |
| RD 5825 | LEVER SPRING GUIDE (B) |
| RD 5850 | BAITRUNNER PAWL SPRING |
| RD 5859 | BAITRUNNER LEVER SPACER |
| RD 5947 | DIAL CLICK SCREW |
| RD 5997 | LINE ROLLER |
| RD 6127 | BAIL HOLD SUPPORT SCREW |
| RD 6172 | BAIL HOLD SUPPORT SHAFT |
| RD 6236 | BAIL ARM SCREW |
| RD 6283 | ROLLER CLUTCH SCREW |
| RD 6286 | BAIL TRIP LEVER SPRING |
| RD 6780 | SINGLE EARED WASHER |
| RD 7204 | LOCK WASHER(A) |
| RD 7418 | BAITRUNNER LEVER SCREW |
| RD 7419 | LINE ROLLER SCREW |
| RD 7428 | BAIL TRIP LEVER WASHER |
| RD 7432 | ANTI-REVERSE CAM |
| RD 7579 | ANTI-REVERSE CAM SPRING |
| RD 7588 | SPOOL SUPPORT |
| RD 7594 | BAIL HOLD SUPPORT SPACER |
| RD 7599 | FRICTION RING |
| RD 7616 | SPOOL WASHER |
| RD 7859 | SLIDER RETAINER SCREW |
| RD 7926 | LINE ROLLER SCREW |
| Part Number | Part Description |
| RD 0050 BNT0191 | SCREW |
| RD 0113 | DRAG SPRING WASHER B |
| RD 0266 | CLICK GEAR "C" LOCK |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0693 | DRAG WASHER "C2" (WHITE) |
| RD 0714 | ROTOR NUT |
| RD 0743 | DRIVE GEAR WASHER |
| RD 2605 | CLUTCH PAWL SPRING |
| RD 2963 | BAITRUNNER CLICK SPRING |
| RD 2981 | FREE SPOOL TENSION SPRING |
| RD 3016 | CLICK GEAR |
| RD 3017 | FREE SPOOL TENSION SHAFT |
| RD 3019 | FREE SPOOL TENSION SCREW |
| RD 3033 | BAITRUNNER RATCHET |
| RD 3034 | RATCHET SPACER |
| RD 3043 | FREE SPOOL TENSION SHAFT |
| RD 3561 TT 0632 | ANTI-REVERSE CAM SCREW |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 4049 | DRAG SPRING WASHER |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 5042 | ANTI-REVERSE CAM RING |
| RD 5447 | ROLLER CLUTCH ASSEMBLY |
| RD 5625 | LINE ROLLER SPACER |
| RD 5727 | SLIDER RETAINER SCREW (B) |
| RD 5799 | ROTOR NUT RETAINER |
| RD 5803 | BAIL SPRING GUIDE (A) |
| RD 5804 | SPRING GUIDE (A) SUPPORT |
| RD 5805 | BAIL SPRING |
| RD 5806 | BAIL SPRING GUIDE (B) |
| RD 5808 | BAIL ARM WASHER |
| RD 5812 | BAIL ARM SCREW COLLAR |
| RD 5816 | BAIL TRIP LEVER |
| RD 5820 | SPACER |
| RD 5823 | LEVER SPRING GUIDE (A) |
| RD 5825 | LEVER SPRING GUIDE (B) |
| RD 5850 | BAITRUNNER PAWL SPRING |
| RD 5859 | BAITRUNNER LEVER SPACER |
| RD 5947 | DIAL CLICK SCREW |
| RD 5997 | LINE ROLLER |
| RD 6127 | BAIL HOLD SUPPORT SCREW |
| RD 6172 | BAIL HOLD SUPPORT SHAFT |
| RD 6236 | BAIL ARM SCREW |
| RD 6283 | ROLLER CLUTCH SCREW |
| RD 6286 | BAIL TRIP LEVER SPRING |
| RD 6780 | SINGLE EARED WASHER |
| RD 7204 | LOCK WASHER(A) |
| RD 7418 | BAITRUNNER LEVER SCREW |
| RD 7419 | LINE ROLLER SCREW |
| RD 7428 | BAIL TRIP LEVER WASHER |
| RD 7432 | ANTI-REVERSE CAM |
| RD 7579 | ANTI-REVERSE CAM SPRING |
| RD 7588 | SPOOL SUPPORT |
| RD 7594 | BAIL HOLD SUPPORT SPACER |
| RD 7599 | FRICTION RING |
| RD 7616 | SPOOL WASHER |
| RD 7859 | SLIDER RETAINER SCREW |
| RD 7926 | LINE ROLLER SCREW |
