THUNNUS CI4 - TU16000F
THUNNUS CI4

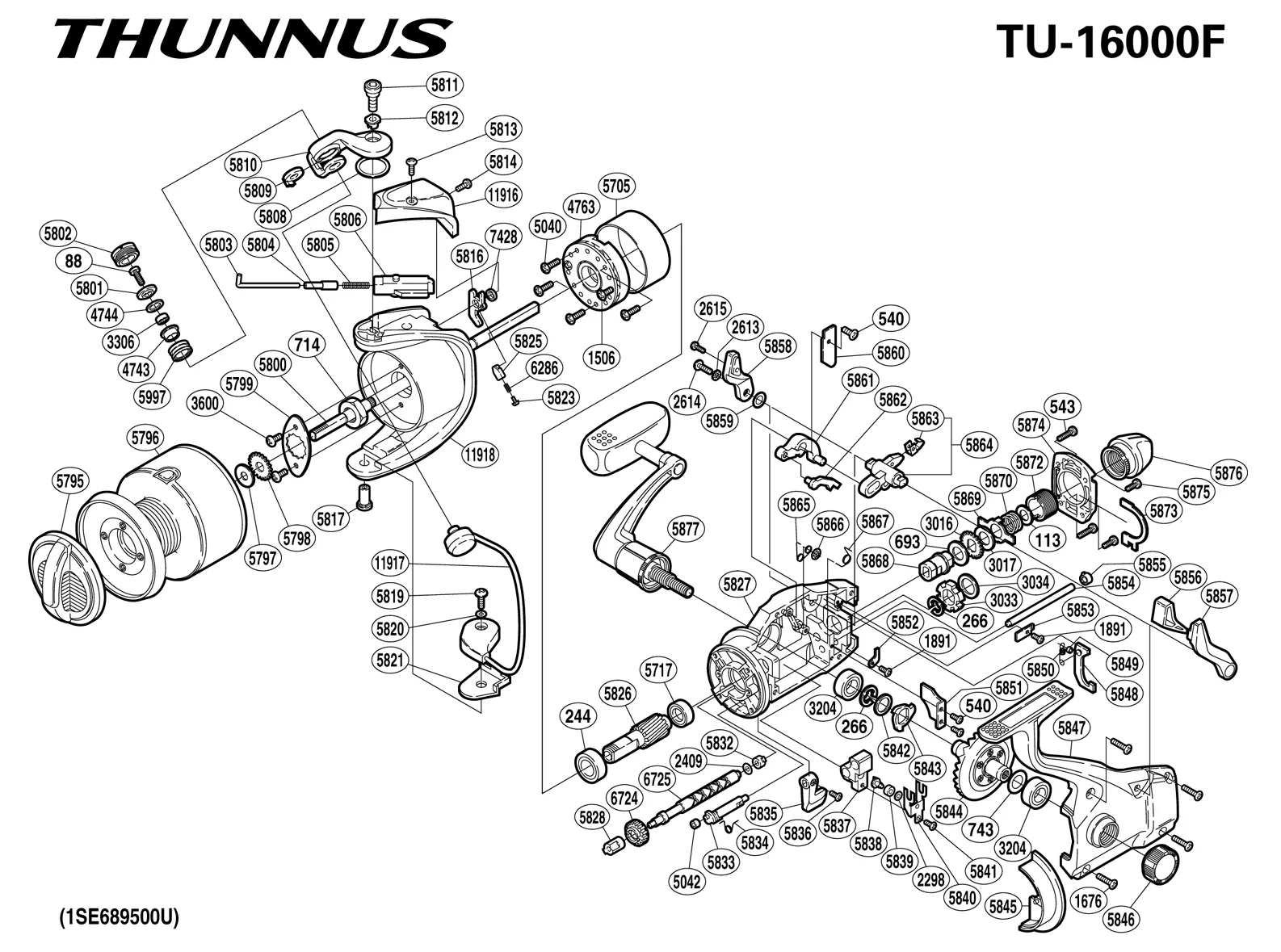

THUNNUS CI4 - TU16000F: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0088 | LINE ROLLER SCREW (NYLOCK) |
| RD 0113 | DRAG SPRING WASHER B |
| RD 0266 | CLICK GEAR "C" LOCK |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0543 | SIDE COVER SCREW (B) |
| RD 0693 | DRAG WASHER "C2" (WHITE) |
| RD 0714 | ROTOR NUT |
| RD 0743 | DRIVE GEAR WASHER |
| RD 1506 | |
| RD 1676 | SIDE COVER SCREW |
| RD 1891 | REAR PROTECTOR SCREW |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 2613 | LOCK WASHER (B) |
| RD 2614 | CLUTCH ARM SCREW |
| RD 2615 | BAITRUNNER LEVER SCREW |
| RD 3016 | CLICK GEAR |
| RD 3017 | FREE SPOOL TENSION SHAFT |
| RD 3033 | BAITRUNNER RATCHET |
| RD 3034 | RATCHET SPACER |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 4743 | LINE ROLLER BUSHING |
| RD 4744 | ROLLER BEARING SEAL |
| RD 4763 | ROLLER CLUTCH ASSEMBLY |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5042 | ANTI-REVERSE CAM RING |
| RD 5705 | ROLLER CLUTCH RING |
| RD 5795 | DRAG KNOB |
| RD 5796 | SPOOL ASSEMBLY |
| RD 5797 | SPOOL WASHER |
| RD 5798 | SPOOL SUPPORT |
| RD 5799 | ROTOR NUT RETAINER |
| RD 5800 | MAIN SHAFT |
| RD 5801 | LINE ROLLER WASHER |
| RD 5802 | |
| RD 5803 | BAIL SPRING GUIDE (A) |
| RD 5804 | SPRING GUIDE (A) SUPPORT |
| RD 5805 | BAIL SPRING |
| RD 5806 | BAIL SPRING GUIDE (B) |
| RD 5807 | |
| RD 5808 | BAIL ARM WASHER |
| RD 5809 | |
| RD 5810 | |
| RD 5811 | BAIL ARM SCREW |
| RD 5812 | BAIL ARM SCREW COLLAR |
| RD 5813 | GUARD SCREW (A) |
| RD 5814 | GUARD SCREW (B) |
| RD 5815 | |
| RD 5816 | BAIL TRIP LEVER |
| RD 5817 | BAIL HOLD SUPPORT SHAFT |
| RD 5818 | BAIL ASSEMBLY USE RD11917 |
| RD 5819 | BAIL HOLD SUPPORT SCREW |
| RD 5820 | SPACER |
| RD 5821 | |
| RD 5822 | |
| RD 5823 | LEVER SPRING GUIDE (A) |
| RD 5825 | LEVER SPRING GUIDE (B) |
| Part Number | Part Description |
| RD 0088 | LINE ROLLER SCREW (NYLOCK) |
| RD 0113 | DRAG SPRING WASHER B |
| RD 0266 | CLICK GEAR "C" LOCK |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0543 | SIDE COVER SCREW (B) |
| RD 0693 | DRAG WASHER "C2" (WHITE) |
| RD 0714 | ROTOR NUT |
| RD 0743 | DRIVE GEAR WASHER |
| RD 1506 | |
| RD 1676 | SIDE COVER SCREW |
| RD 1891 | REAR PROTECTOR SCREW |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 2613 | LOCK WASHER (B) |
| RD 2614 | CLUTCH ARM SCREW |
| RD 2615 | BAITRUNNER LEVER SCREW |
| RD 3016 | CLICK GEAR |
| RD 3017 | FREE SPOOL TENSION SHAFT |
| RD 3033 | BAITRUNNER RATCHET |
| RD 3034 | RATCHET SPACER |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 4743 | LINE ROLLER BUSHING |
| RD 4744 | ROLLER BEARING SEAL |
| RD 4763 | ROLLER CLUTCH ASSEMBLY |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5042 | ANTI-REVERSE CAM RING |
| RD 5705 | ROLLER CLUTCH RING |
| RD 5795 | DRAG KNOB |
| RD 5796 | SPOOL ASSEMBLY |
| RD 5797 | SPOOL WASHER |
| RD 5798 | SPOOL SUPPORT |
| RD 5799 | ROTOR NUT RETAINER |
| RD 5800 | MAIN SHAFT |
| RD 5801 | LINE ROLLER WASHER |
| RD 5802 | |
| RD 5803 | BAIL SPRING GUIDE (A) |
| RD 5804 | SPRING GUIDE (A) SUPPORT |
| RD 5805 | BAIL SPRING |
| RD 5806 | BAIL SPRING GUIDE (B) |
| RD 5807 | |
| RD 5808 | BAIL ARM WASHER |
| RD 5809 | |
| RD 5810 | |
| RD 5811 | BAIL ARM SCREW |
| RD 5812 | BAIL ARM SCREW COLLAR |
| RD 5813 | GUARD SCREW (A) |
| RD 5814 | GUARD SCREW (B) |
| RD 5815 | |
| RD 5816 | BAIL TRIP LEVER |
| RD 5817 | BAIL HOLD SUPPORT SHAFT |
| RD 5818 | BAIL ASSEMBLY USE RD11917 |
| RD 5819 | BAIL HOLD SUPPORT SCREW |
| RD 5820 | SPACER |
| RD 5821 | |
| RD 5822 | |
| RD 5823 | LEVER SPRING GUIDE (A) |
| RD 5825 | LEVER SPRING GUIDE (B) |
