CALCUTTA B - CT100B
CALCUTTA B

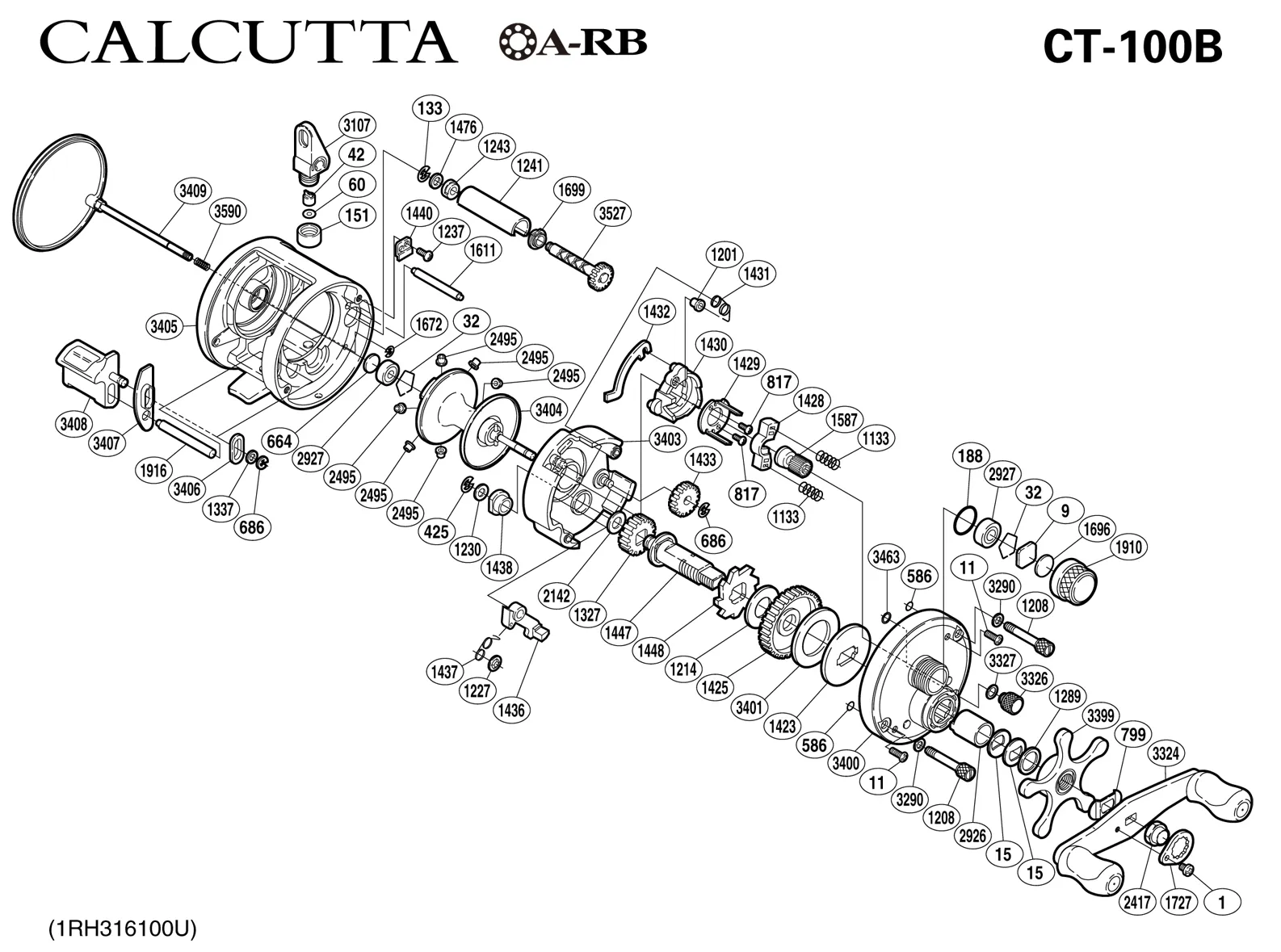

CALCUTTA B - CT100B: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0001 | |
| BNT0009 TGT0182 | SPACER (A) |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0151 | PAWL CAP |
| BNT0188 | O-RING |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0586 | BOLT RETAINER |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0799 | FRICTION WASHER |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT1133 | YOKE SPRING |
| BNT1201 | RETRACTOR SPRING COLLAR |
| BNT1208 | RIGHT SIDE PLATE BOLT |
| BNT1214 | DRAG WASHER (A) |
| BNT1227 | CLUTCH PAWL SPRING RETAINER |
| BNT1230 | DRIVE SHAFT SPACER |
| BNT1237 | WORM BUSHING A RETAINER SCREW |
| BNT1241 | LEVEL WIND GUARD |
| BNT1243 | WORM BUSHING (B) |
| BNT1289 | STAR DRAG SPACER |
| BNT1327 | IDLE GEAR |
| BNT1337 | CLUTCH BAR SUPPORT SPACER |
| BNT1423 | KEY WASHER |
| BNT1425 | DRIVE GEAR |
| BNT1428 | YOKE |
| BNT1429 | |
| BNT1430 | CLUTCH CAM |
| BNT1431 | RETRACTOR SPRING |
| BNT1432 | CLUTCH PLATE |
| BNT1433 | IDLE GEAR (B) |
| BNT1436 | CLUTCH PAWL |
| Part Number | Part Description |
| BNT0001 | |
| BNT0009 TGT0182 | SPACER (A) |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0151 | PAWL CAP |
| BNT0188 | O-RING |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0586 | BOLT RETAINER |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0799 | FRICTION WASHER |
| BNT0817 RD 5690 | MULTI PURPOSE SCREW |
| BNT1133 | YOKE SPRING |
| BNT1201 | RETRACTOR SPRING COLLAR |
| BNT1208 | RIGHT SIDE PLATE BOLT |
| BNT1214 | DRAG WASHER (A) |
| BNT1227 | CLUTCH PAWL SPRING RETAINER |
| BNT1230 | DRIVE SHAFT SPACER |
| BNT1237 | WORM BUSHING A RETAINER SCREW |
| BNT1241 | LEVEL WIND GUARD |
| BNT1243 | WORM BUSHING (B) |
| BNT1289 | STAR DRAG SPACER |
| BNT1327 | IDLE GEAR |
| BNT1337 | CLUTCH BAR SUPPORT SPACER |
| BNT1423 | KEY WASHER |
| BNT1425 | DRIVE GEAR |
| BNT1428 | YOKE |
| BNT1429 | |
| BNT1430 | CLUTCH CAM |
| BNT1431 | RETRACTOR SPRING |
| BNT1432 | CLUTCH PLATE |
| BNT1433 | IDLE GEAR (B) |
| BNT1436 | CLUTCH PAWL |
