CALCUTTA B - CT201B
CALCUTTA B

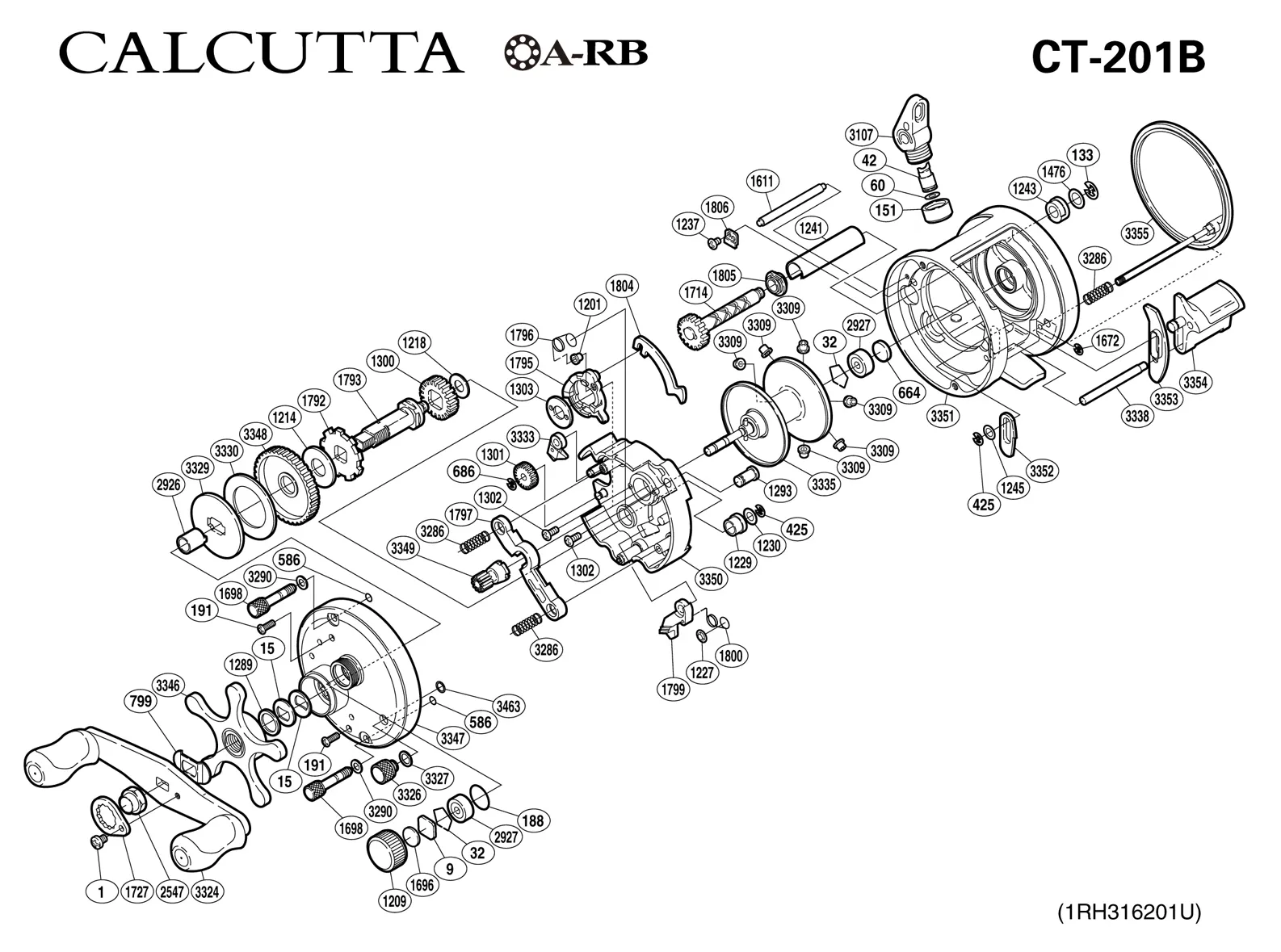

CALCUTTA B - CT201B: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0001 | |
| BNT0009 TGT0182 | SPACER (A) |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0151 | PAWL CAP |
| BNT0188 | O-RING |
| BNT0191 | SIDE PLATE SCREW |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0586 | BOLT RETAINER |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0799 | FRICTION WASHER |
| BNT1201 | RETRACTOR SPRING COLLAR |
| BNT1209 | CAST CONTROL CAP |
| BNT1214 | DRAG WASHER (A) |
| BNT1218 | IDLE GEAR (A) SPACER |
| BNT1227 | CLUTCH PAWL SPRING RETAINER |
| BNT1229 | DRIVE SHAFT BUSHING |
| BNT1230 | DRIVE SHAFT SPACER |
| BNT1237 | WORM BUSHING A RETAINER SCREW |
| BNT1241 | LEVEL WIND GUARD |
| BNT1243 | WORM BUSHING (B) |
| BNT1245 | CLUTCH BAR SUPPORT SPACER |
| BNT1289 | STAR DRAG SPACER |
| BNT1293 | RETRACTOR SPRING PIN |
| BNT1300 | IDLE GEAR (A) |
| BNT1301 | IDLE GEAR (B) |
| BNT1302 RD 4812 | CLUTCH CAM SCREW |
| BNT1303 | CLUTCH CAM RETAINER |
| BNT1476 | DRIVE SHAFT WASHER D |
| BNT1611 | LEVEL WIND GUIDE |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1698 | RIGHT SIDE PLATE BOLT |
| Part Number | Part Description |
| BNT0001 | |
| BNT0009 TGT0182 | SPACER (A) |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0151 | PAWL CAP |
| BNT0188 | O-RING |
| BNT0191 | SIDE PLATE SCREW |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0586 | BOLT RETAINER |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0799 | FRICTION WASHER |
| BNT1201 | RETRACTOR SPRING COLLAR |
| BNT1209 | CAST CONTROL CAP |
| BNT1214 | DRAG WASHER (A) |
| BNT1218 | IDLE GEAR (A) SPACER |
| BNT1227 | CLUTCH PAWL SPRING RETAINER |
| BNT1229 | DRIVE SHAFT BUSHING |
| BNT1230 | DRIVE SHAFT SPACER |
| BNT1237 | WORM BUSHING A RETAINER SCREW |
| BNT1241 | LEVEL WIND GUARD |
| BNT1243 | WORM BUSHING (B) |
| BNT1245 | CLUTCH BAR SUPPORT SPACER |
| BNT1289 | STAR DRAG SPACER |
| BNT1293 | RETRACTOR SPRING PIN |
| BNT1300 | IDLE GEAR (A) |
| BNT1301 | IDLE GEAR (B) |
| BNT1302 RD 4812 | CLUTCH CAM SCREW |
| BNT1303 | CLUTCH CAM RETAINER |
| BNT1476 | DRIVE SHAFT WASHER D |
| BNT1611 | LEVEL WIND GUIDE |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1698 | RIGHT SIDE PLATE BOLT |
