Calcutta TE - CTE101GT
Calcutta TE

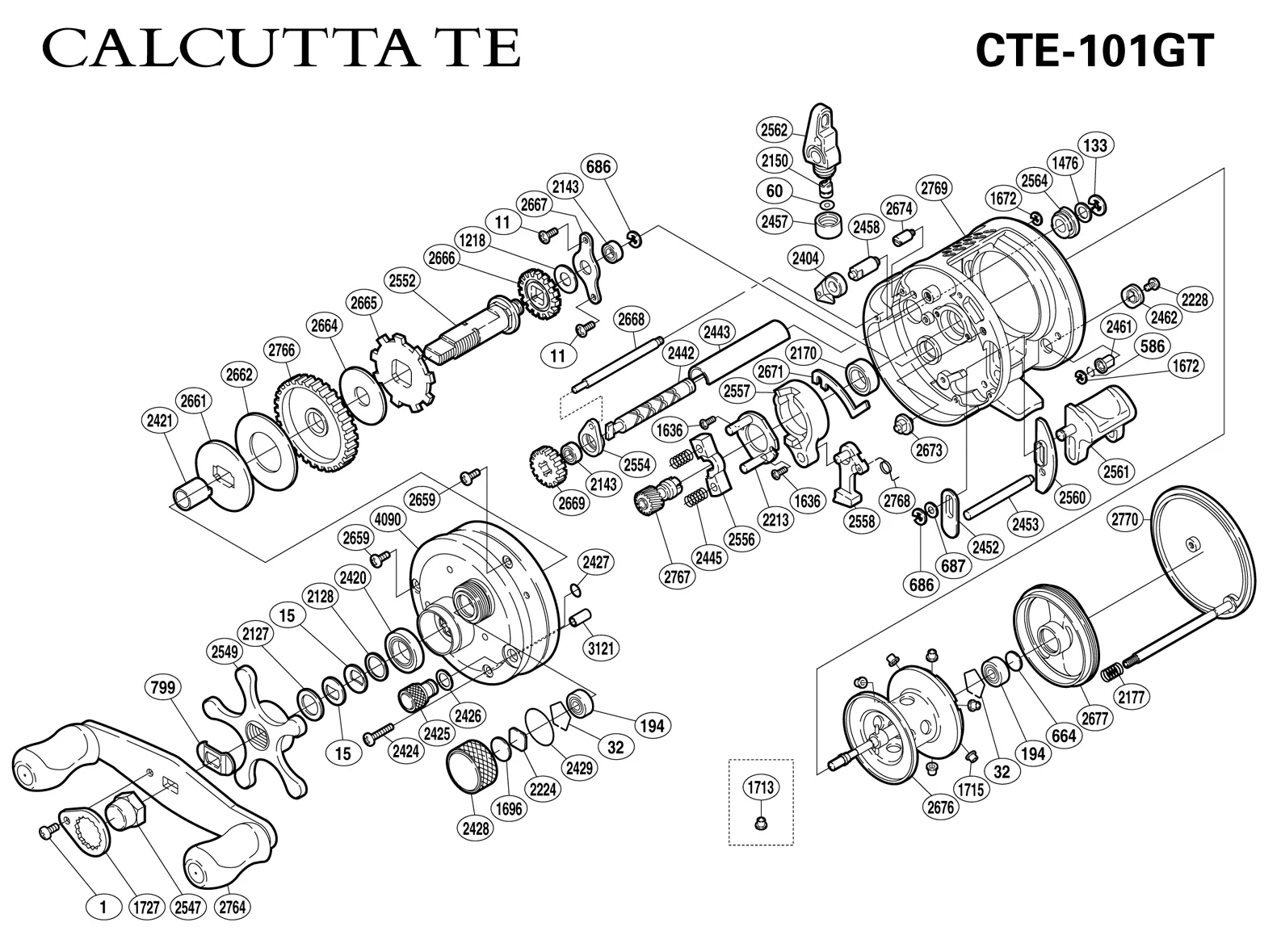

Calcutta TE - CTE101GT: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0001 | |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0586 | BOLT RETAINER |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0687 | CLICK PAWL SPACER |
| BNT0799 | FRICTION WASHER |
| BNT1218 | IDLE GEAR (A) SPACER |
| BNT1476 | DRIVE SHAFT WASHER D |
| BNT1636 | CLUTCH CAM SCREW |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1713 | BRAKE COLLAR (GREEN) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1727 | HANDLE NUT PLATE |
| BNT2127 | STAR DRAG SPACER |
| BNT2128 | BEARING WASHER |
| BNT2143 | BALL BEARING |
| BNT2150 | LINE GUIDE PAWL |
| BNT2170 | BALL BEARING |
| BNT2177 | LEFT SIDE PLATE SPRING |
| BNT2213 | CLUTCH CAM RETAINER |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2228 | CLUTCH CAM SCREW |
| BNT2396 | ROLLER CLUTCH BEARING |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2420 | STAR DRAG BEARING |
| BNT2421 | ROLLER CLUTCH INNER TUBE |
| BNT2424 | RIGHT SIDE PLATE SCREW (LONG) |
| BNT2425 | SIDE PLATE OPEN NUT |
| BNT2426 | OPEN NUT WASHER |
| BNT2427 | O RING |
| BNT2428 | CAST CONTROL CAP |
| BNT2429 TGT0438 | "O" RING |
| BNT2442 | WORM SHAFT |
| Part Number | Part Description |
| BNT0001 | |
| BNT0011 | DRIVE SHAFT RETAINER SCREW |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0586 | BOLT RETAINER |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0687 | CLICK PAWL SPACER |
| BNT0799 | FRICTION WASHER |
| BNT1218 | IDLE GEAR (A) SPACER |
| BNT1476 | DRIVE SHAFT WASHER D |
| BNT1636 | CLUTCH CAM SCREW |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1713 | BRAKE COLLAR (GREEN) |
| BNT1715 | BRAKE COLLAR (RED) |
| BNT1727 | HANDLE NUT PLATE |
| BNT2127 | STAR DRAG SPACER |
| BNT2128 | BEARING WASHER |
| BNT2143 | BALL BEARING |
| BNT2150 | LINE GUIDE PAWL |
| BNT2170 | BALL BEARING |
| BNT2177 | LEFT SIDE PLATE SPRING |
| BNT2213 | CLUTCH CAM RETAINER |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2228 | CLUTCH CAM SCREW |
| BNT2396 | ROLLER CLUTCH BEARING |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2420 | STAR DRAG BEARING |
| BNT2421 | ROLLER CLUTCH INNER TUBE |
| BNT2424 | RIGHT SIDE PLATE SCREW (LONG) |
| BNT2425 | SIDE PLATE OPEN NUT |
| BNT2426 | OPEN NUT WASHER |
| BNT2427 | O RING |
| BNT2428 | CAST CONTROL CAP |
| BNT2429 TGT0438 | "O" RING |
| BNT2442 | WORM SHAFT |
