CARDIFF - CDF200A
CARDIFF

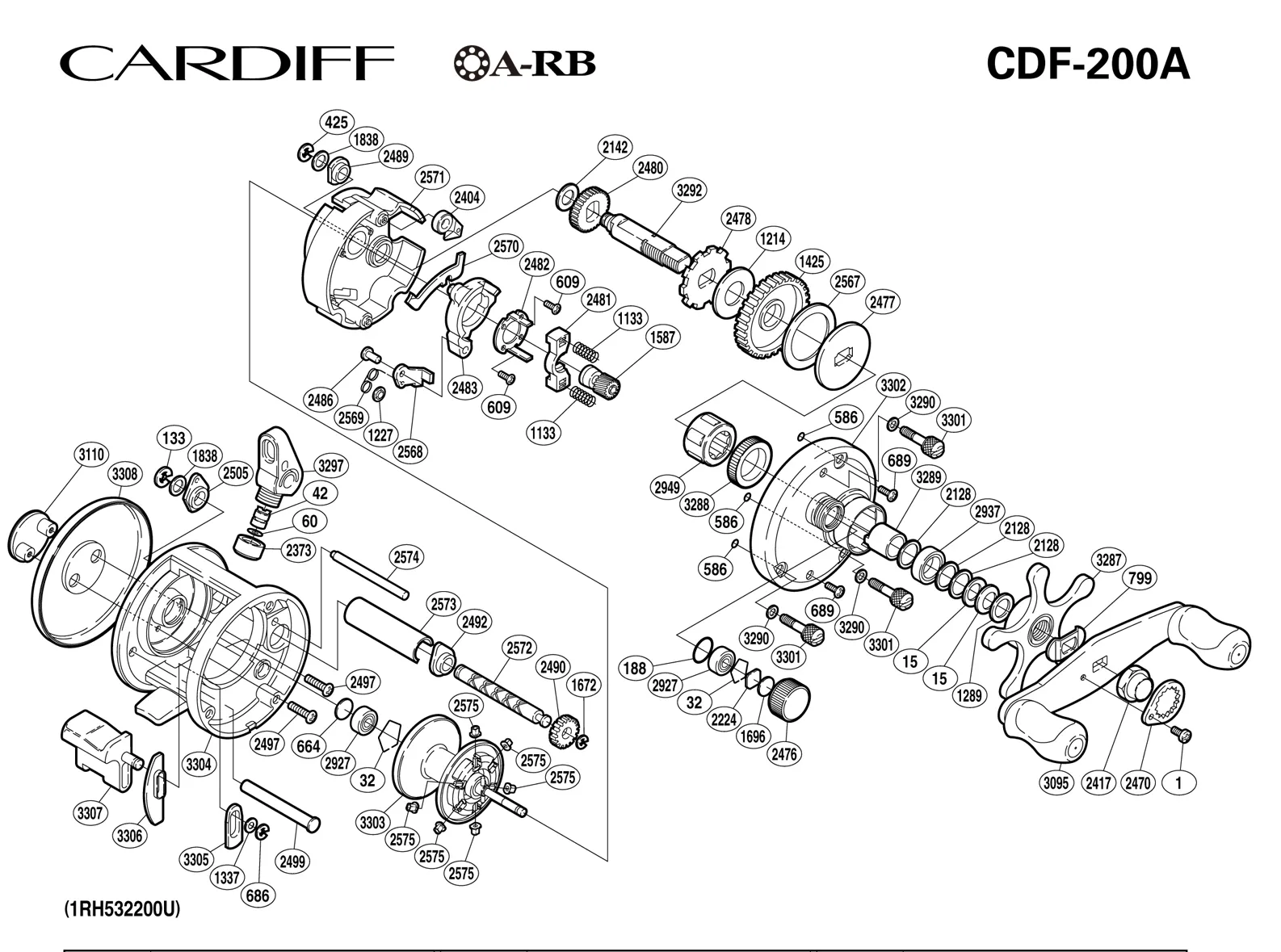

CARDIFF - CDF200A: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0001 | |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0188 | O-RING |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0586 | BOLT RETAINER |
| BNT0609 | DRIVE SHAFT RETAINER SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0689 TT 0187 | MULTI PURPOSE SCREW |
| BNT0799 | FRICTION WASHER |
| BNT1133 | YOKE SPRING |
| BNT1214 | DRAG WASHER (A) |
| BNT1227 | CLUTCH PAWL SPRING RETAINER |
| BNT1289 | STAR DRAG SPACER |
| BNT1337 | CLUTCH BAR SUPPORT SPACER |
| BNT1425 | DRIVE GEAR |
| BNT1587 | PINION GEAR |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1838 | SPACER |
| BNT2128 | BEARING WASHER |
| BNT2142 | IDLE GEAR (A) SPACER |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2373 | PAWL CAP |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2417 | HANDLE NUT |
| BNT2470 | HANDLE NUT PLATE |
| BNT2476 | CAST CONTROL CAP |
| BNT2477 | KEY WASHER |
| BNT2478 | ANTI-REVERSE RATCHET |
| BNT2480 | IDLE GEAR (A) |
| BNT2481 | YOKE |
| Part Number | Part Description |
| BNT0001 | |
| BNT0015 | DRAG SPRING WASHER |
| BNT0032 | BEARING RETAINER |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0060 | SPACER (OPTIONAL) |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0188 | O-RING |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0586 | BOLT RETAINER |
| BNT0609 | DRIVE SHAFT RETAINER SCREW |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0689 TT 0187 | MULTI PURPOSE SCREW |
| BNT0799 | FRICTION WASHER |
| BNT1133 | YOKE SPRING |
| BNT1214 | DRAG WASHER (A) |
| BNT1227 | CLUTCH PAWL SPRING RETAINER |
| BNT1289 | STAR DRAG SPACER |
| BNT1337 | CLUTCH BAR SUPPORT SPACER |
| BNT1425 | DRIVE GEAR |
| BNT1587 | PINION GEAR |
| BNT1672 | E LOCK |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1838 | SPACER |
| BNT2128 | BEARING WASHER |
| BNT2142 | IDLE GEAR (A) SPACER |
| BNT2224 | SPOOL TENSION SPACER (A) |
| BNT2373 | PAWL CAP |
| BNT2404 | ANTI-REVERSE PAWL |
| BNT2417 | HANDLE NUT |
| BNT2470 | HANDLE NUT PLATE |
| BNT2476 | CAST CONTROL CAP |
| BNT2477 | KEY WASHER |
| BNT2478 | ANTI-REVERSE RATCHET |
| BNT2480 | IDLE GEAR (A) |
| BNT2481 | YOKE |
