CORVALUS - CVL200
CORVALUS

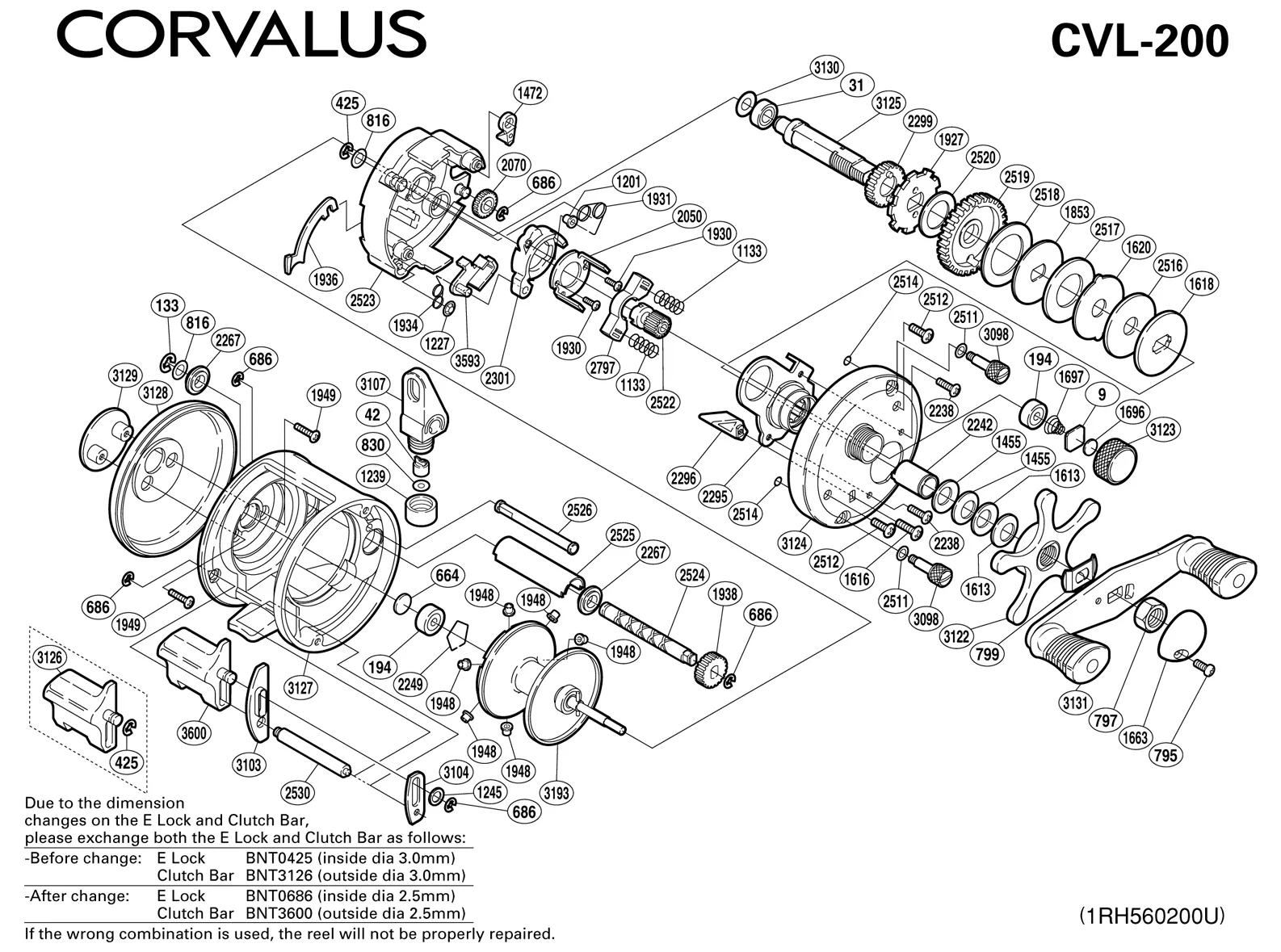

CORVALUS - CVL200: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| BNT0009 TGT0182 | SPACER (A) |
| BNT0031 TGT0309 | SPOOL SHAFT BEARING (0.65G)MAD |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0795 | HANDLE NUT PLATE SCREW |
| BNT0797 TGT0214 | HANDLE NUT |
| BNT0799 | FRICTION WASHER |
| BNT0816 TGT0527 | DRIVE SHAFT WASHER |
| BNT0830 | SPACER (OPTIONAL) |
| BNT1133 | YOKE SPRING |
| BNT1201 | RETRACTOR SPRING COLLAR |
| BNT1227 | CLUTCH PAWL SPRING RETAINER |
| BNT1245 | CLUTCH BAR SUPPORT SPACER |
| BNT1455 RD 8341 | DRAG SPRING WASHER |
| BNT1472 | ANTI-REVERSE PAWL |
| BNT1560 BNT1239 | PAWL CAP |
| BNT1613 | DRAG SPRING WASHER (L) |
| BNT1616 | RIGHT SIDE PLATE SCREW |
| BNT1618 TGT0509 | KEY WASHER (C) |
| BNT1620 TGT0511 | EARED WASHER |
| BNT1663 | HANDLE NUT PLATE |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1697 | SPOOL TENSION SPRING |
| BNT1853 | KEY WASHER (A) |
| BNT1927 | ANTI-REVERSE RATCHET |
| BNT1930 RD 5947 | CLUTCH CAM SCREW |
| BNT1931 | RETRACTOR SPRING |
| BNT1934 | CLUTCH PAWL SPRING |
| BNT1936 | CLUTCH PLATE |
| BNT1938 | IDLE GEAR (C) |
| BNT1948 | BRAKE COLLAR (CLEAR SQUARE) |
| BNT1949 | LEFT SIDE PLATE SCREW |
| BNT2050 | CLUTCH CAM RETAINER |
| BNT2070 | IDLE GEAR (B) |
| Part Number | Part Description |
| BNT0009 TGT0182 | SPACER (A) |
| BNT0031 TGT0309 | SPOOL SHAFT BEARING (0.65G)MAD |
| BNT0042 TGT0520 | LINE GUIDE PAWL |
| BNT0133 TLD0132 | WORM SHAFT RETAINER |
| BNT0194 | BALL BEARING(1.64G)MADE IN JAP |
| BNT0425 | CLUTCH BUTTON LOCK |
| BNT0664 | SPACER (B) |
| BNT0686 | E LOCK |
| BNT0795 | HANDLE NUT PLATE SCREW |
| BNT0797 TGT0214 | HANDLE NUT |
| BNT0799 | FRICTION WASHER |
| BNT0816 TGT0527 | DRIVE SHAFT WASHER |
| BNT0830 | SPACER (OPTIONAL) |
| BNT1133 | YOKE SPRING |
| BNT1201 | RETRACTOR SPRING COLLAR |
| BNT1227 | CLUTCH PAWL SPRING RETAINER |
| BNT1245 | CLUTCH BAR SUPPORT SPACER |
| BNT1455 RD 8341 | DRAG SPRING WASHER |
| BNT1472 | ANTI-REVERSE PAWL |
| BNT1560 BNT1239 | PAWL CAP |
| BNT1613 | DRAG SPRING WASHER (L) |
| BNT1616 | RIGHT SIDE PLATE SCREW |
| BNT1618 TGT0509 | KEY WASHER (C) |
| BNT1620 TGT0511 | EARED WASHER |
| BNT1663 | HANDLE NUT PLATE |
| BNT1696 | CAST CONTROL SPACER (B) |
| BNT1697 | SPOOL TENSION SPRING |
| BNT1853 | KEY WASHER (A) |
| BNT1927 | ANTI-REVERSE RATCHET |
| BNT1930 RD 5947 | CLUTCH CAM SCREW |
| BNT1931 | RETRACTOR SPRING |
| BNT1934 | CLUTCH PAWL SPRING |
| BNT1936 | CLUTCH PLATE |
| BNT1938 | IDLE GEAR (C) |
| BNT1948 | BRAKE COLLAR (CLEAR SQUARE) |
| BNT1949 | LEFT SIDE PLATE SCREW |
| BNT2050 | CLUTCH CAM RETAINER |
| BNT2070 | IDLE GEAR (B) |
