AX - AXULSA
AX

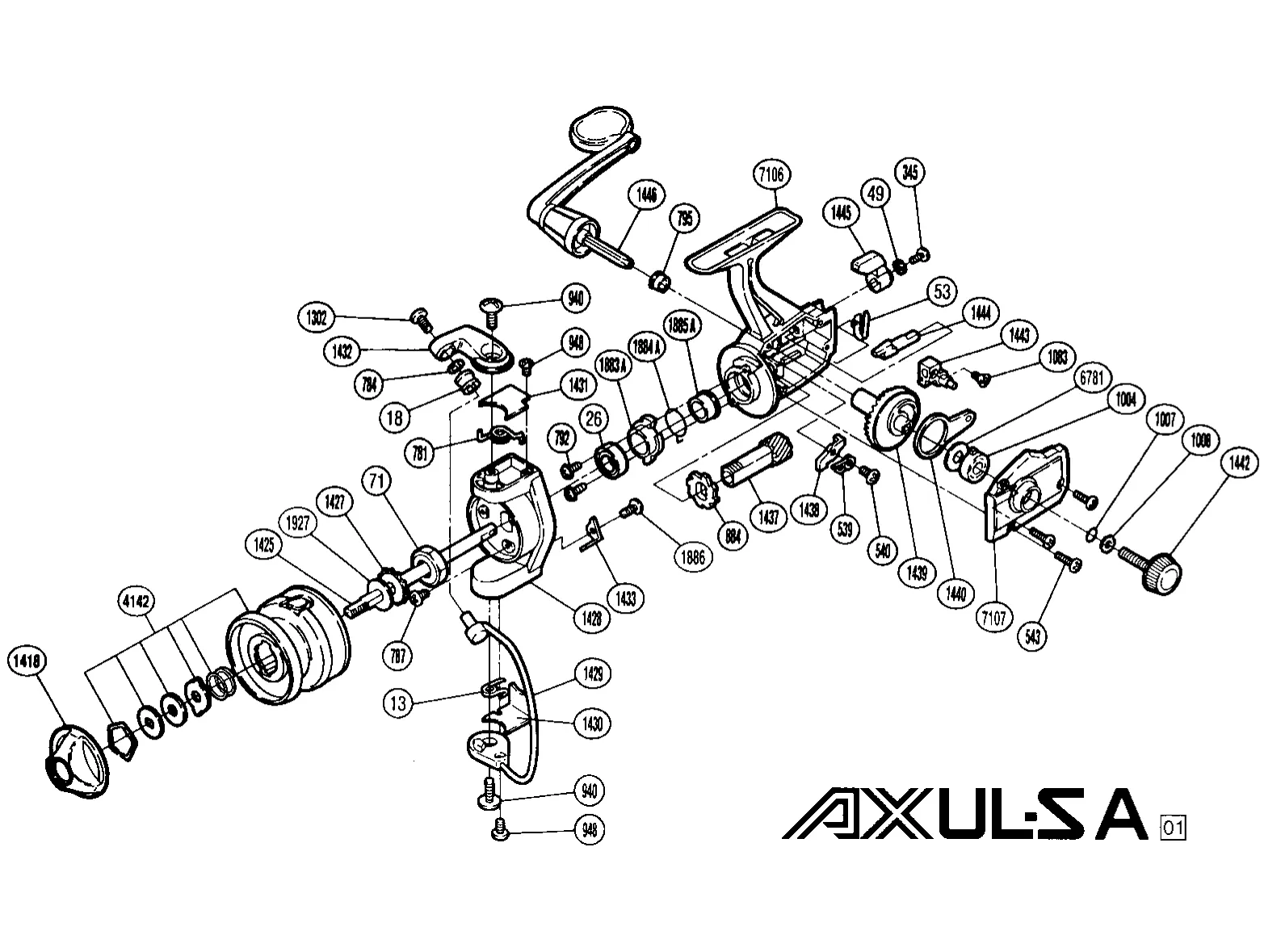

AX - AXULSA: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0013 | |
| RD 0018 | LINE ROLLER |
| RD 0026 TT 0117 | BALL BEARING (2.83G) |
| RD 0049 | |
| RD 0053 | ANTI-REVERSE CAM SPRING |
| RD 0071 | ROTOR NUT |
| RD 0345 BNT2964 | ANTI-REVERSE LEVER SCREW |
| RD 0539 | |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0543 | SIDE COVER SCREW (B) |
| RD 0781 | |
| RD 0784 | LINE ROLLER WASHER |
| RD 0787 | |
| RD 0792 | BEARING RETAINER SCREW |
| RD 0795 | |
| RD 0884 | |
| RD 0940 | |
| RD 0948 | |
| RD 1004 | |
| RD 1007 | |
| RD 1008 | HANDLE LOCK WASHER |
| RD 1083 | SLIDER RETAINER SCREW |
| RD 1302 | LINE ROLLER SCREW |
| RD 1418 | |
| RD 1425 |
| Part Number | Part Description |
| RD 0013 | |
| RD 0018 | LINE ROLLER |
| RD 0026 TT 0117 | BALL BEARING (2.83G) |
| RD 0049 | |
| RD 0053 | ANTI-REVERSE CAM SPRING |
| RD 0071 | ROTOR NUT |
| RD 0345 BNT2964 | ANTI-REVERSE LEVER SCREW |
| RD 0539 | |
| RD 0540 | ANTI-REVERSE PAWL SCREW |
| RD 0543 | SIDE COVER SCREW (B) |
| RD 0781 | |
| RD 0784 | LINE ROLLER WASHER |
| RD 0787 | |
| RD 0792 | BEARING RETAINER SCREW |
| RD 0795 | |
| RD 0884 | |
| RD 0940 | |
| RD 0948 | |
| RD 1004 | |
| RD 1007 | |
| RD 1008 | HANDLE LOCK WASHER |
| RD 1083 | SLIDER RETAINER SCREW |
| RD 1302 | LINE ROLLER SCREW |
| RD 1418 | |
| RD 1425 |
