FX - FX1000FB
FX

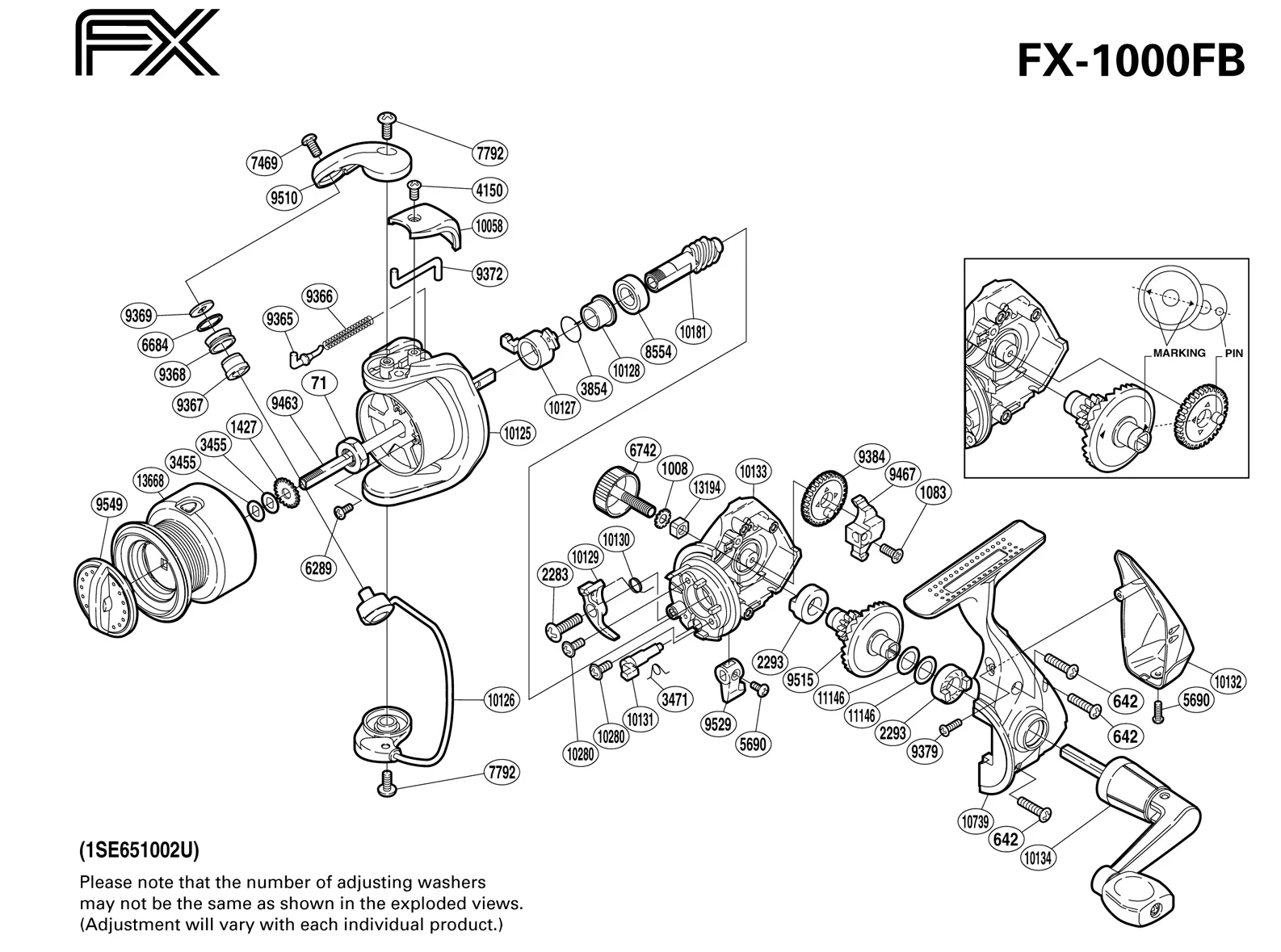

FX - FX1000FB: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0041 | DRIVE GEAR WASHER |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 1008 | HANDLE LOCK WASHER |
| RD 1083 | SLIDER RETAINER SCREW |
| RD 1427 | SPOOL SUPPORT |
| RD 2283 | ANTI-REVERSE PAWL SCREW |
| RD 2293 | DRIVE GEAR BUSHING |
| RD 2852 | HANDLE SCREW LOCK |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3471 | ANTI-REVERSE CAM SPRING |
| RD 3854 | |
| RD 4150 | BAIL SPRING COVER |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 6742 | |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 8554 | BALL BEARING |
| RD 9365 | BAIL SPRING GUIDE |
| RD 9366 | BAIL SPRING |
| RD 9367 | LINE ROLLER BUSHING |
| RD 9368 | LINE ROLLER |
| Part Number | Part Description |
| RD 0041 | DRIVE GEAR WASHER |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 1008 | HANDLE LOCK WASHER |
| RD 1083 | SLIDER RETAINER SCREW |
| RD 1427 | SPOOL SUPPORT |
| RD 2283 | ANTI-REVERSE PAWL SCREW |
| RD 2293 | DRIVE GEAR BUSHING |
| RD 2852 | HANDLE SCREW LOCK |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3471 | ANTI-REVERSE CAM SPRING |
| RD 3854 | |
| RD 4150 | BAIL SPRING COVER |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 6742 | |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 8554 | BALL BEARING |
| RD 9365 | BAIL SPRING GUIDE |
| RD 9366 | BAIL SPRING |
| RD 9367 | LINE ROLLER BUSHING |
| RD 9368 | LINE ROLLER |
