SAHARA - SH2500FD
SAHARA

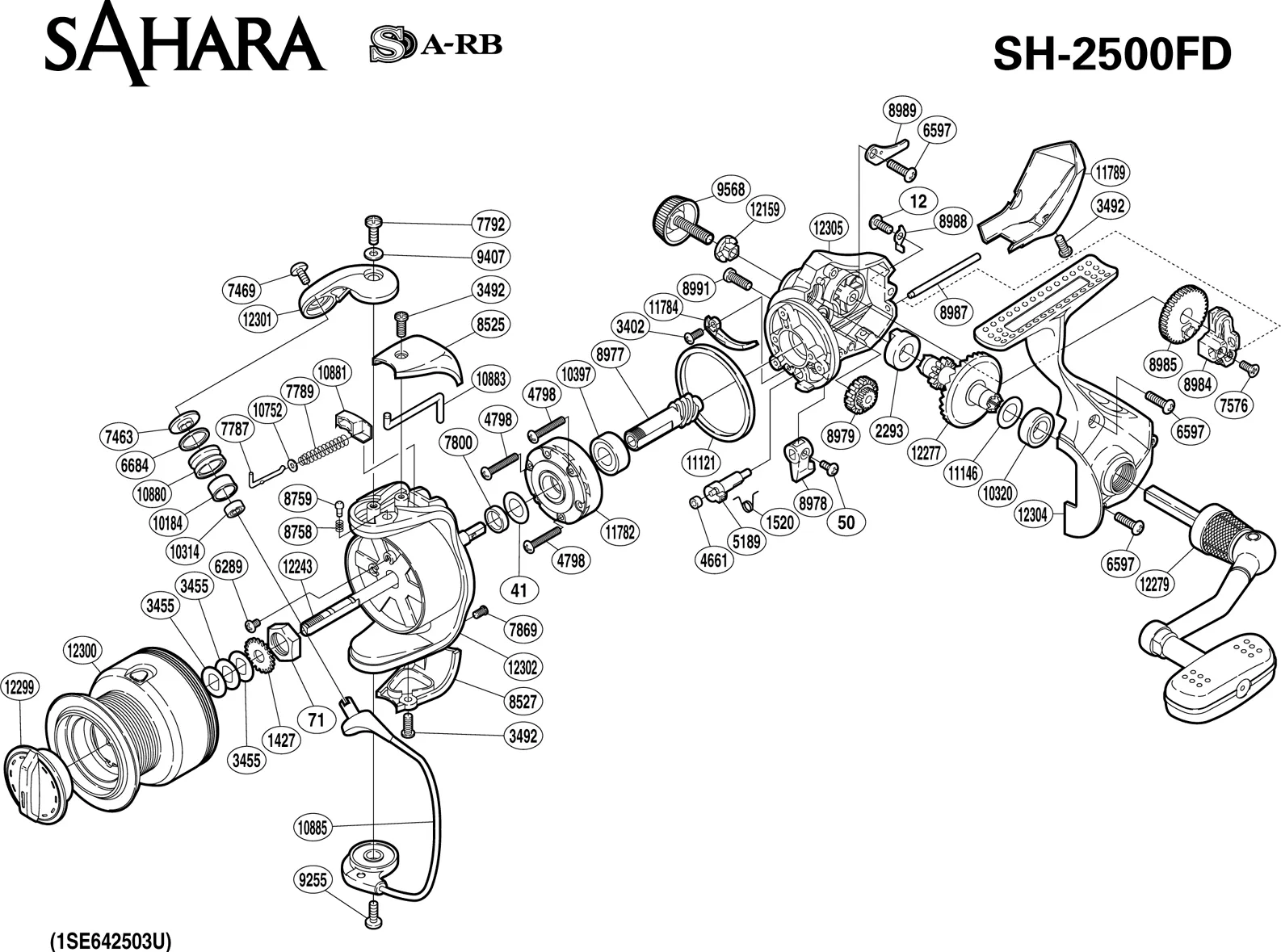

SAHARA - SH2500FD: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0012 BNT2379 | BAIL SPRING COVER SCREW |
| RD 0041 | DRIVE GEAR WASHER |
| RD 0050 BNT0191 | SCREW |
| RD 0071 | ROTOR NUT |
| RD 1427 | SPOOL SUPPORT |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 2293 | DRIVE GEAR BUSHING |
| RD 3402 | COVER SCREW |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 4661 | ANTI-REVERSE CAM RING |
| RD 4798 | ROLLER CLUTCH SCREW |
| RD 5189 | ANTI-REVERSE CAM |
| RD 6289 | NUT LOCK SCREW |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7463 | LINE ROLLER WASHER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7576 | SLIDER RETAINER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8525 | BAIL SPRING COVER |
| RD 8527 | BAIL HOLD SUPPORT GUARD |
| RD 8758 | CLICK SPRING |
| RD 8759 | CLICK PIN |
| RD 8977 | PINION GEAR |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 8979 | IDLE GEAR |
| RD 8984 | OSCILLATING SLIDER |
| Part Number | Part Description |
| RD 0012 BNT2379 | BAIL SPRING COVER SCREW |
| RD 0041 | DRIVE GEAR WASHER |
| RD 0050 BNT0191 | SCREW |
| RD 0071 | ROTOR NUT |
| RD 1427 | SPOOL SUPPORT |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 2293 | DRIVE GEAR BUSHING |
| RD 3402 | COVER SCREW |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 4661 | ANTI-REVERSE CAM RING |
| RD 4798 | ROLLER CLUTCH SCREW |
| RD 5189 | ANTI-REVERSE CAM |
| RD 6289 | NUT LOCK SCREW |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7463 | LINE ROLLER WASHER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7576 | SLIDER RETAINER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8525 | BAIL SPRING COVER |
| RD 8527 | BAIL HOLD SUPPORT GUARD |
| RD 8758 | CLICK SPRING |
| RD 8759 | CLICK PIN |
| RD 8977 | PINION GEAR |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 8979 | IDLE GEAR |
| RD 8984 | OSCILLATING SLIDER |
