SAHARA - SH2500FE
SAHARA

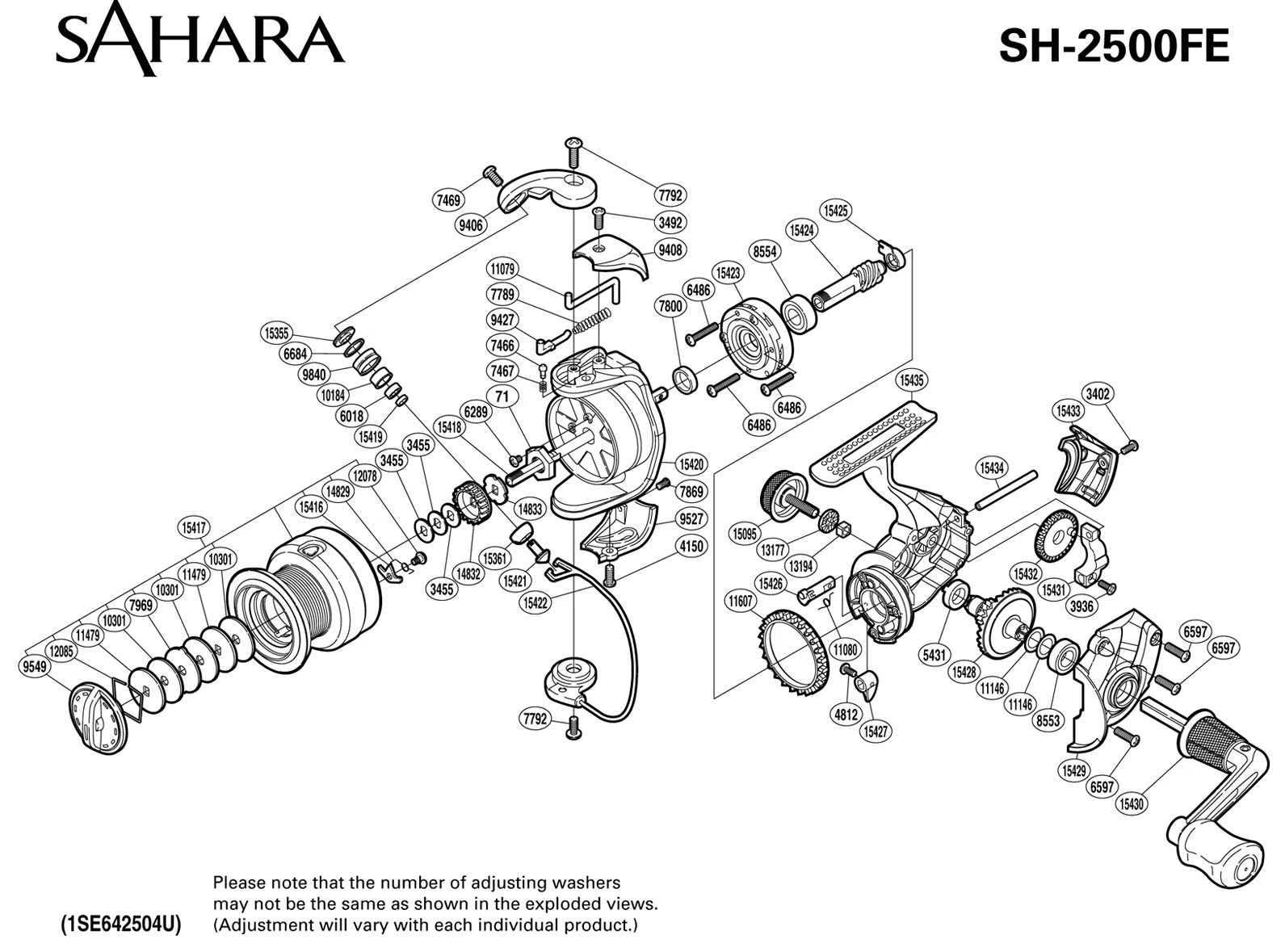

SAHARA - SH2500FE: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 3402 | COVER SCREW |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3936 TGT1167 | OSCILLATING PAWL COVER SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 5431 | DRIVE GEAR BUSHING |
| RD 6018 | BALL BEARING |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7466 | CLICK PIN |
| RD 7467 | CLICK SPRING |
| RD 7469 | LINE ROLLER SCREW |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 7969 | EARED WASHER |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 9406 | BAIL ARM |
| RD 9408 | BAIL SPRING COVER |
| RD 9427 | BAIL SPRING GUIDE |
| RD 9527 | BAIL HOLD SUPPORT GUARD |
| RD 9549 | DRAG KNOB |
| RD 9840 | LINE ROLLER |
| RD10184 | LINE ROLLER BUSHING |
| RD10301 | DRAG WASHER |
| RD11079 | BAIL TRIP LEVER |
| RD11080 | ANTI-REVERSE CAM SPRING |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 3402 | COVER SCREW |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3936 TGT1167 | OSCILLATING PAWL COVER SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 5431 | DRIVE GEAR BUSHING |
| RD 6018 | BALL BEARING |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7466 | CLICK PIN |
| RD 7467 | CLICK SPRING |
| RD 7469 | LINE ROLLER SCREW |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 7969 | EARED WASHER |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 9406 | BAIL ARM |
| RD 9408 | BAIL SPRING COVER |
| RD 9427 | BAIL SPRING GUIDE |
| RD 9527 | BAIL HOLD SUPPORT GUARD |
| RD 9549 | DRAG KNOB |
| RD 9840 | LINE ROLLER |
| RD10184 | LINE ROLLER BUSHING |
| RD10301 | DRAG WASHER |
| RD11079 | BAIL TRIP LEVER |
| RD11080 | ANTI-REVERSE CAM SPRING |
