SAHARA - SH4000FD

SAHARA - SH4000FD

SAHARA

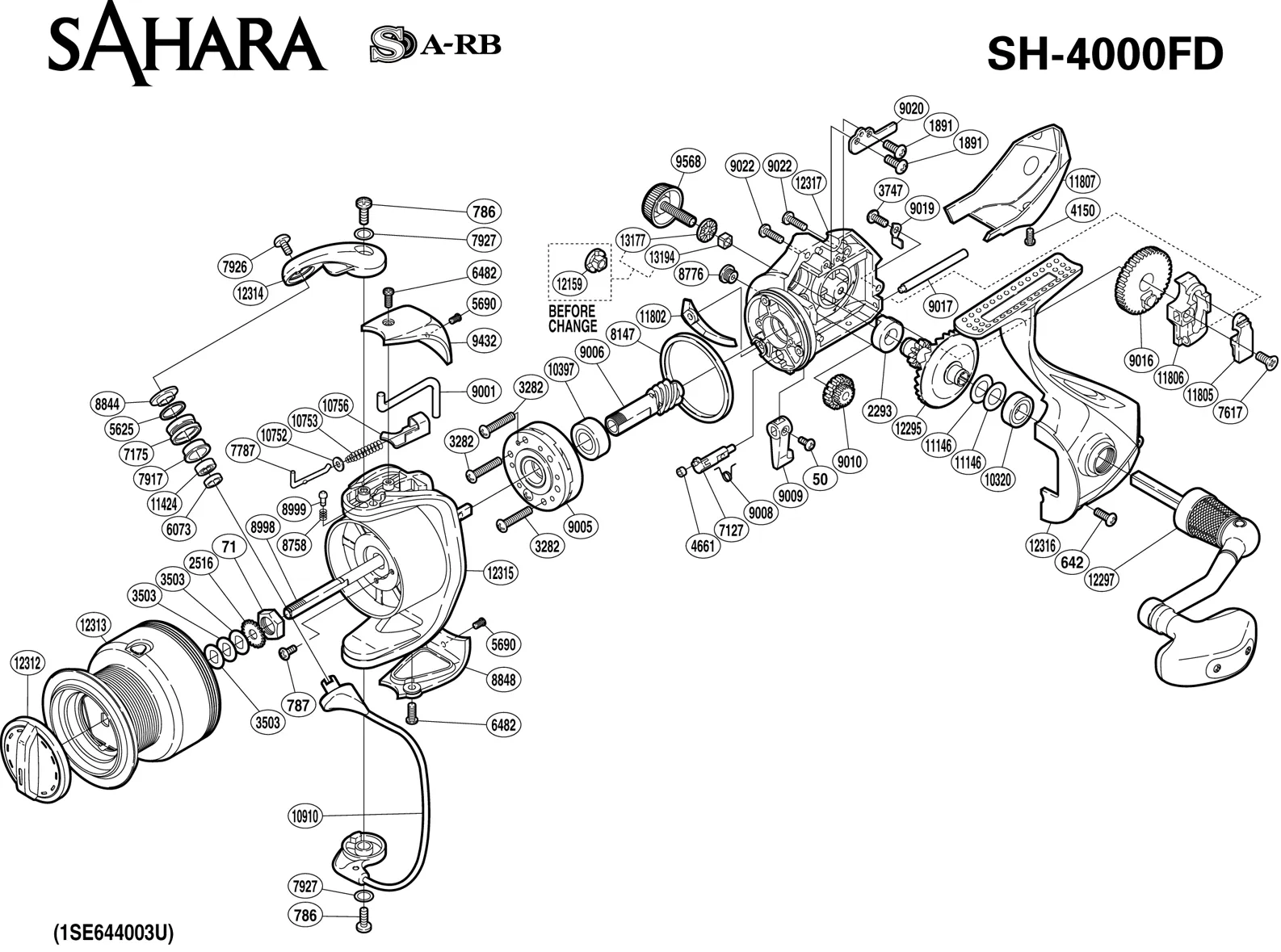

SAHARA - SH4000FD: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
RD 0050 BNT0191SCREW
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 0786BAIL ARM SCREW
RD 0787
RD 1891REAR PROTECTOR SCREW
RD 2293DRIVE GEAR BUSHING
RD 2516SPOOL SUPPORT
RD 3282ANTI-REVERSE PAWL SCREW
RD 3503SPOOL WASHER
RD 3747SLIDER RETAINER SCREW
RD 4150BAIL SPRING COVER
RD 4661ANTI-REVERSE CAM RING
RD 5625LINE ROLLER SPACER
RD 5690MULTI-PURPOSE SCREW
RD 6073BEARING SPACER
RD 6482PROTECTOR SCREW
RD 7127ANTI-REVERSE CAM
RD 7175LINE ROLLER
RD 7617SLIDER RETAINER SCREW
RD 7787BAIL SPRING GUIDE (A)
RD 7917LINE ROLLER BUSHING
RD 7926LINE ROLLER SCREW
RD 7927ADJUSTING WASHER
RD 8147FRICTION RING
RD 8758CLICK SPRING
RD 8776OIL CAP
RD 8844LINE ROLLER WASHER
RD 8848BAIL HOLD SUPPORT GUARD
RD 8998MAIN SHAFT
RD 8999CLICK PIN
RD 9001BAIL TRIP LEVER
Part NumberPart Description
RD 0050 BNT0191SCREW
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 0786BAIL ARM SCREW
RD 0787
RD 1891REAR PROTECTOR SCREW
RD 2293DRIVE GEAR BUSHING
RD 2516SPOOL SUPPORT
RD 3282ANTI-REVERSE PAWL SCREW
RD 3503SPOOL WASHER
RD 3747SLIDER RETAINER SCREW
RD 4150BAIL SPRING COVER
RD 4661ANTI-REVERSE CAM RING
RD 5625LINE ROLLER SPACER
RD 5690MULTI-PURPOSE SCREW
RD 6073BEARING SPACER
RD 6482PROTECTOR SCREW
RD 7127ANTI-REVERSE CAM
RD 7175LINE ROLLER
RD 7617SLIDER RETAINER SCREW
RD 7787BAIL SPRING GUIDE (A)
RD 7917LINE ROLLER BUSHING
RD 7926LINE ROLLER SCREW
RD 7927ADJUSTING WASHER
RD 8147FRICTION RING
RD 8758CLICK SPRING
RD 8776OIL CAP
RD 8844LINE ROLLER WASHER
RD 8848BAIL HOLD SUPPORT GUARD
RD 8998MAIN SHAFT
RD 8999CLICK PIN
RD 9001BAIL TRIP LEVER
