SAHARA - SH4000FE

SAHARA - SH4000FE

SAHARA

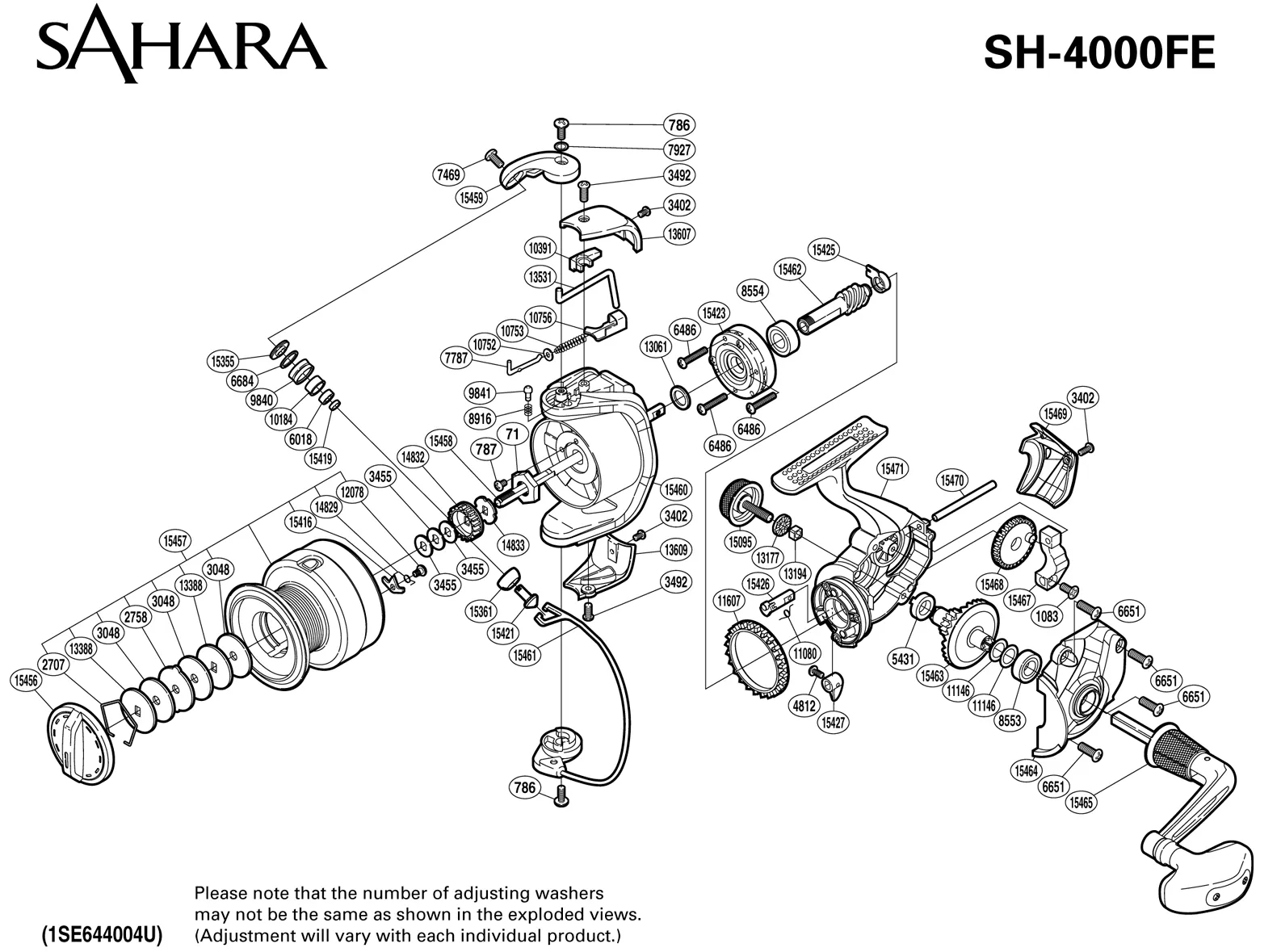

SAHARA - SH4000FE: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
RD 0071ROTOR NUT
RD 0786BAIL ARM SCREW
RD 0787
RD 2707DRAG WASHERS RETAINER
RD 2758
RD 3048
RD 3402COVER SCREW
RD 3455SPOOL WASHER (3PK)
RD 3492REAR PROTECTOR SCREW
RD 4812REAR COVER SCREW (SMALL)
RD 5431DRIVE GEAR BUSHING
RD 6018BALL BEARING
RD 6486ROLLER CLUTCH SCREW
RD 6651BAIL ARM SCREW
RD 6684LINE ROLLER SPACER
RD 7469LINE ROLLER SCREW
RD 7787BAIL SPRING GUIDE (A)
RD 7927ADJUSTING WASHER
RD 8553BALL BEARING
RD 8554BALL BEARING
RD 8916CLICK SPRING
RD 9840LINE ROLLER
RD 9841CLICK PIN
RD10184LINE ROLLER BUSHING
RD10313BEARING SPACER
RD10391BAIL TRIP COVER
RD10752BAIL SPRING GUIDE A SUPPORT
RD10753BAIL SPRING
RD10756BAIL SPRING SEAT
RD11080ANTI-REVERSE CAM SPRING
RD11146WASHER
RD11607FRICTION RING
RD12078SCREW
RD13061WASHER
Part NumberPart Description
RD 0071ROTOR NUT
RD 0786BAIL ARM SCREW
RD 0787
RD 2707DRAG WASHERS RETAINER
RD 2758
RD 3048
RD 3402COVER SCREW
RD 3455SPOOL WASHER (3PK)
RD 3492REAR PROTECTOR SCREW
RD 4812REAR COVER SCREW (SMALL)
RD 5431DRIVE GEAR BUSHING
RD 6018BALL BEARING
RD 6486ROLLER CLUTCH SCREW
RD 6651BAIL ARM SCREW
RD 6684LINE ROLLER SPACER
RD 7469LINE ROLLER SCREW
RD 7787BAIL SPRING GUIDE (A)
RD 7927ADJUSTING WASHER
RD 8553BALL BEARING
RD 8554BALL BEARING
RD 8916CLICK SPRING
RD 9840LINE ROLLER
RD 9841CLICK PIN
RD10184LINE ROLLER BUSHING
RD10313BEARING SPACER
RD10391BAIL TRIP COVER
RD10752BAIL SPRING GUIDE A SUPPORT
RD10753BAIL SPRING
RD10756BAIL SPRING SEAT
RD11080ANTI-REVERSE CAM SPRING
RD11146WASHER
RD11607FRICTION RING
RD12078SCREW
RD13061WASHER
