SAROS - SAR2500FA
SAROS

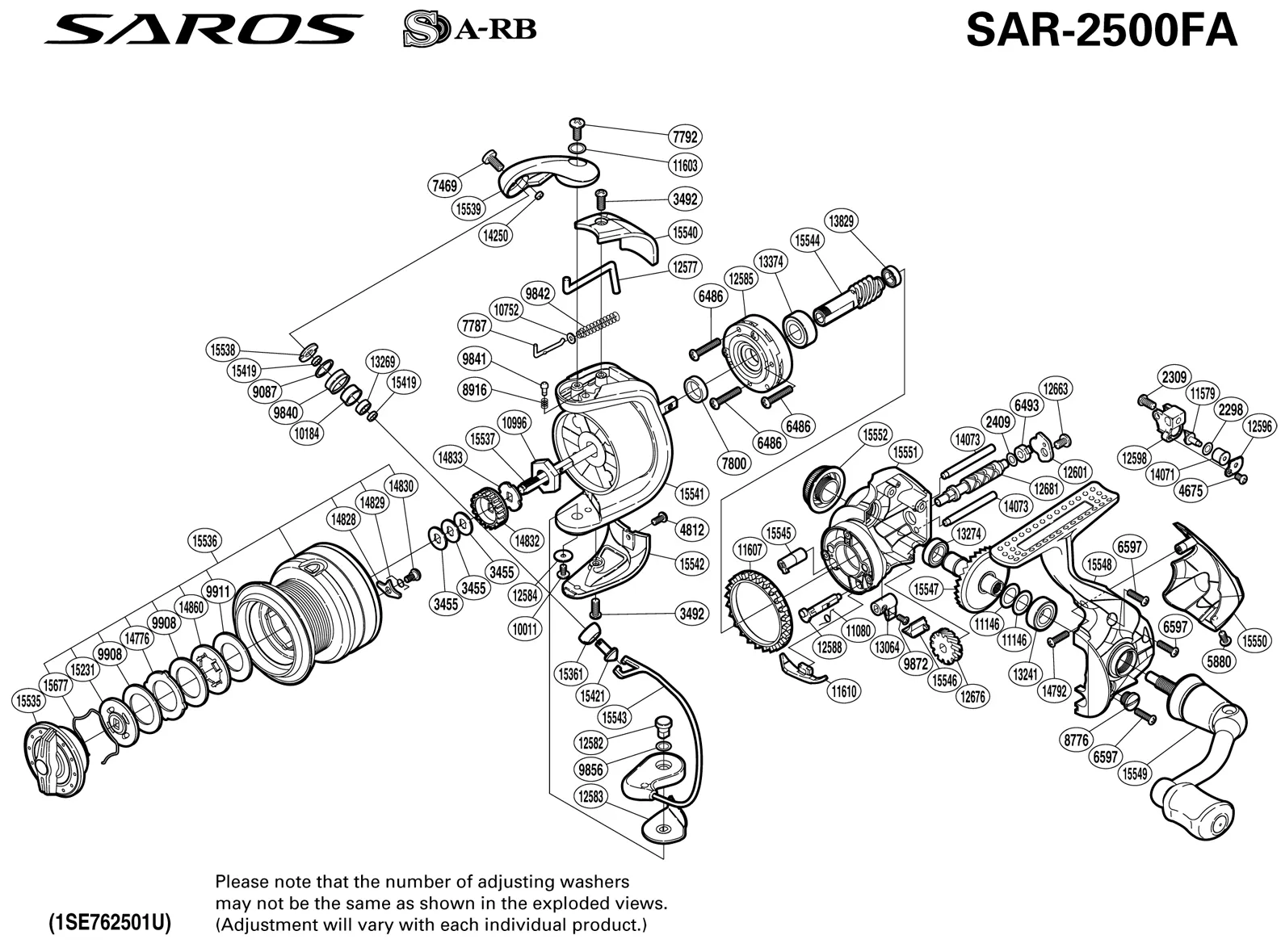

SAROS - SAR2500FA: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 8776 | OIL CAP |
| RD 8916 | CLICK SPRING |
| RD 9087 | LINE ROLLER SPACER |
| RD 9840 | LINE ROLLER |
| RD 9841 | CLICK PIN |
| RD 9842 | BAIL SPRING |
| RD 9856 | WASHER |
| RD 9872 | SCREW |
| RD 9908 | DRAG WASHER A |
| RD 9911 | DRAG WASHER B |
| RD10011 | SCREW |
| RD10184 | LINE ROLLER BUSHING |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10996 | ROTOR NUT |
| RD11080 | ANTI-REVERSE CAM SPRING |
| RD11146 | WASHER |
| RD11579 | OSCILLATING PAWL |
| RD11603 | WASHER |
| RD11607 | FRICTION RING |
| RD11610 | BAIL TRIP STRIKE |
| RD12577 | BAIL TRIP LEVER |
| RD12582 | BAIL HOLD SUPPORT SHAFT |
| RD12583 | BAIL HOLD SUPPORT SPACER |
| RD12584 | WASHER |
| RD12585 | ROLLER CLUTCH ASSEMBLY |
| RD12588 | ANTI-REVERSE CAM |
| RD12596 | OSCILLATING PAWL COVER |
| RD12598 | OSCILLATING SLIDER |
| Part Number | Part Description |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 8776 | OIL CAP |
| RD 8916 | CLICK SPRING |
| RD 9087 | LINE ROLLER SPACER |
| RD 9840 | LINE ROLLER |
| RD 9841 | CLICK PIN |
| RD 9842 | BAIL SPRING |
| RD 9856 | WASHER |
| RD 9872 | SCREW |
| RD 9908 | DRAG WASHER A |
| RD 9911 | DRAG WASHER B |
| RD10011 | SCREW |
| RD10184 | LINE ROLLER BUSHING |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10996 | ROTOR NUT |
| RD11080 | ANTI-REVERSE CAM SPRING |
| RD11146 | WASHER |
| RD11579 | OSCILLATING PAWL |
| RD11603 | WASHER |
| RD11607 | FRICTION RING |
| RD11610 | BAIL TRIP STRIKE |
| RD12577 | BAIL TRIP LEVER |
| RD12582 | BAIL HOLD SUPPORT SHAFT |
| RD12583 | BAIL HOLD SUPPORT SPACER |
| RD12584 | WASHER |
| RD12585 | ROLLER CLUTCH ASSEMBLY |
| RD12588 | ANTI-REVERSE CAM |
| RD12596 | OSCILLATING PAWL COVER |
| RD12598 | OSCILLATING SLIDER |
