SAROS - SAR4000F

SAROS - SAR4000F

SAROS

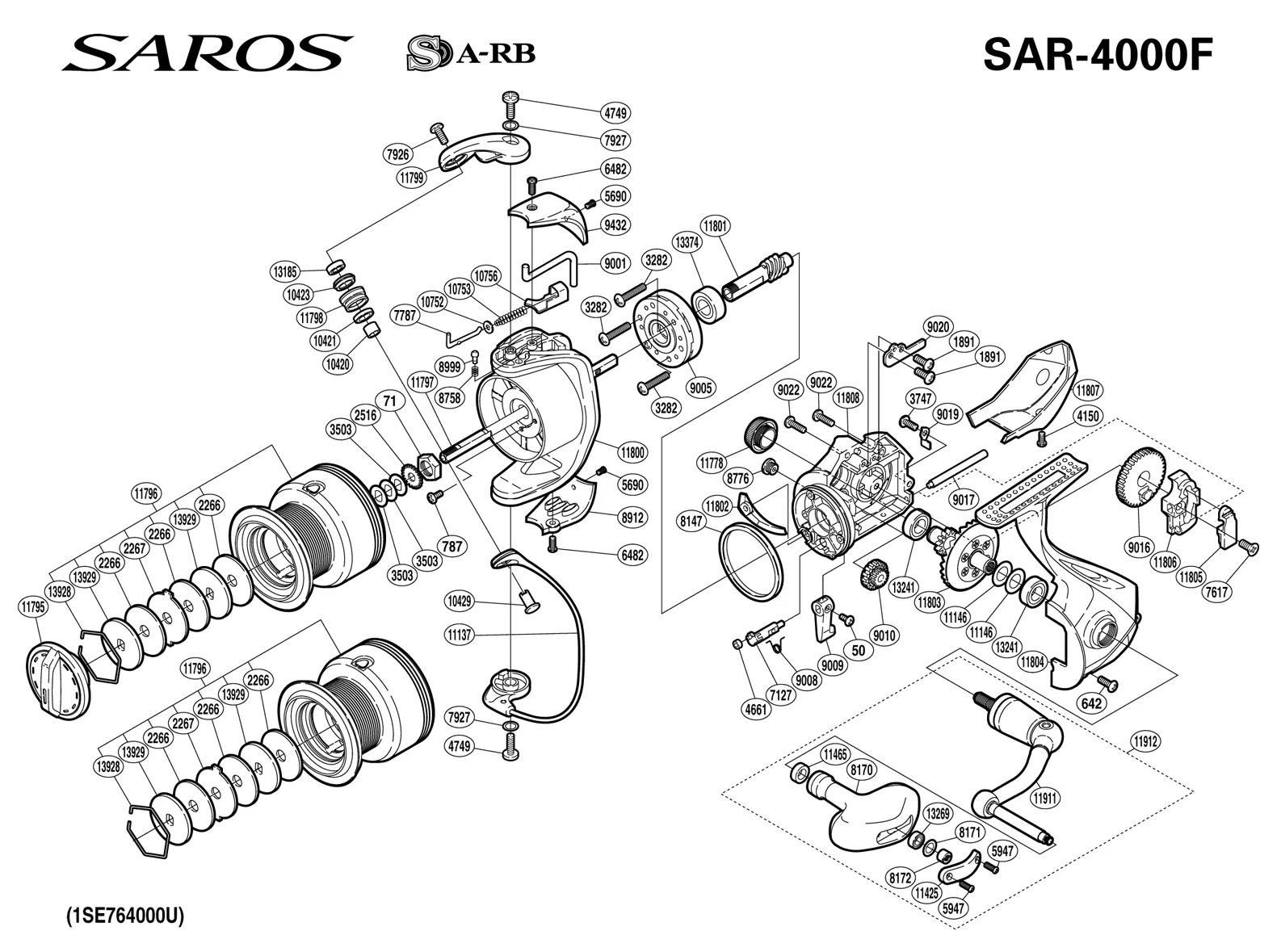

SAROS - SAR4000F: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
RD 0050 BNT0191SCREW
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 0787
RD 1891REAR PROTECTOR SCREW
RD 2516SPOOL SUPPORT
RD 3282ANTI-REVERSE PAWL SCREW
RD 3503SPOOL WASHER
RD 3747SLIDER RETAINER SCREW
RD 4150BAIL SPRING COVER
RD 4661ANTI-REVERSE CAM RING
RD 4749BAIL ARM SCREW
RD 5690MULTI-PURPOSE SCREW
RD 5947DIAL CLICK SCREW
RD 6482PROTECTOR SCREW
RD 7127ANTI-REVERSE CAM
RD 7617SLIDER RETAINER SCREW
RD 7787BAIL SPRING GUIDE (A)
RD 7926LINE ROLLER SCREW
RD 7927ADJUSTING WASHER
RD 8147FRICTION RING
RD 8170HANDLE KNOB (T TYPE A)
RD 8171HANDLE KNOB ADJUST WASHER
RD 8172HANDLE KNOB NUT
RD 8758CLICK SPRING
RD 8776OIL CAP
RD 8912BAIL HOLD SUPPORT GUARD
RD 8999CLICK PIN
RD 9001BAIL TRIP LEVER
RD 9005
RD 9008ANTI-REVERSE CAM SPRING
RD 9009ANTI-REVERSE LEVER
RD 9010IDLE GEAR
RD 9016
RD 9017OSCILLATING GUIDE
Part NumberPart Description
RD 0050 BNT0191SCREW
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 0787
RD 1891REAR PROTECTOR SCREW
RD 2516SPOOL SUPPORT
RD 3282ANTI-REVERSE PAWL SCREW
RD 3503SPOOL WASHER
RD 3747SLIDER RETAINER SCREW
RD 4150BAIL SPRING COVER
RD 4661ANTI-REVERSE CAM RING
RD 4749BAIL ARM SCREW
RD 5690MULTI-PURPOSE SCREW
RD 5947DIAL CLICK SCREW
RD 6482PROTECTOR SCREW
RD 7127ANTI-REVERSE CAM
RD 7617SLIDER RETAINER SCREW
RD 7787BAIL SPRING GUIDE (A)
RD 7926LINE ROLLER SCREW
RD 7927ADJUSTING WASHER
RD 8147FRICTION RING
RD 8170HANDLE KNOB (T TYPE A)
RD 8171HANDLE KNOB ADJUST WASHER
RD 8172HANDLE KNOB NUT
RD 8758CLICK SPRING
RD 8776OIL CAP
RD 8912BAIL HOLD SUPPORT GUARD
RD 8999CLICK PIN
RD 9001BAIL TRIP LEVER
RD 9005
RD 9008ANTI-REVERSE CAM SPRING
RD 9009ANTI-REVERSE LEVER
RD 9010IDLE GEAR
RD 9016
RD 9017OSCILLATING GUIDE
