SAROS - SAR4000FA
SAROS

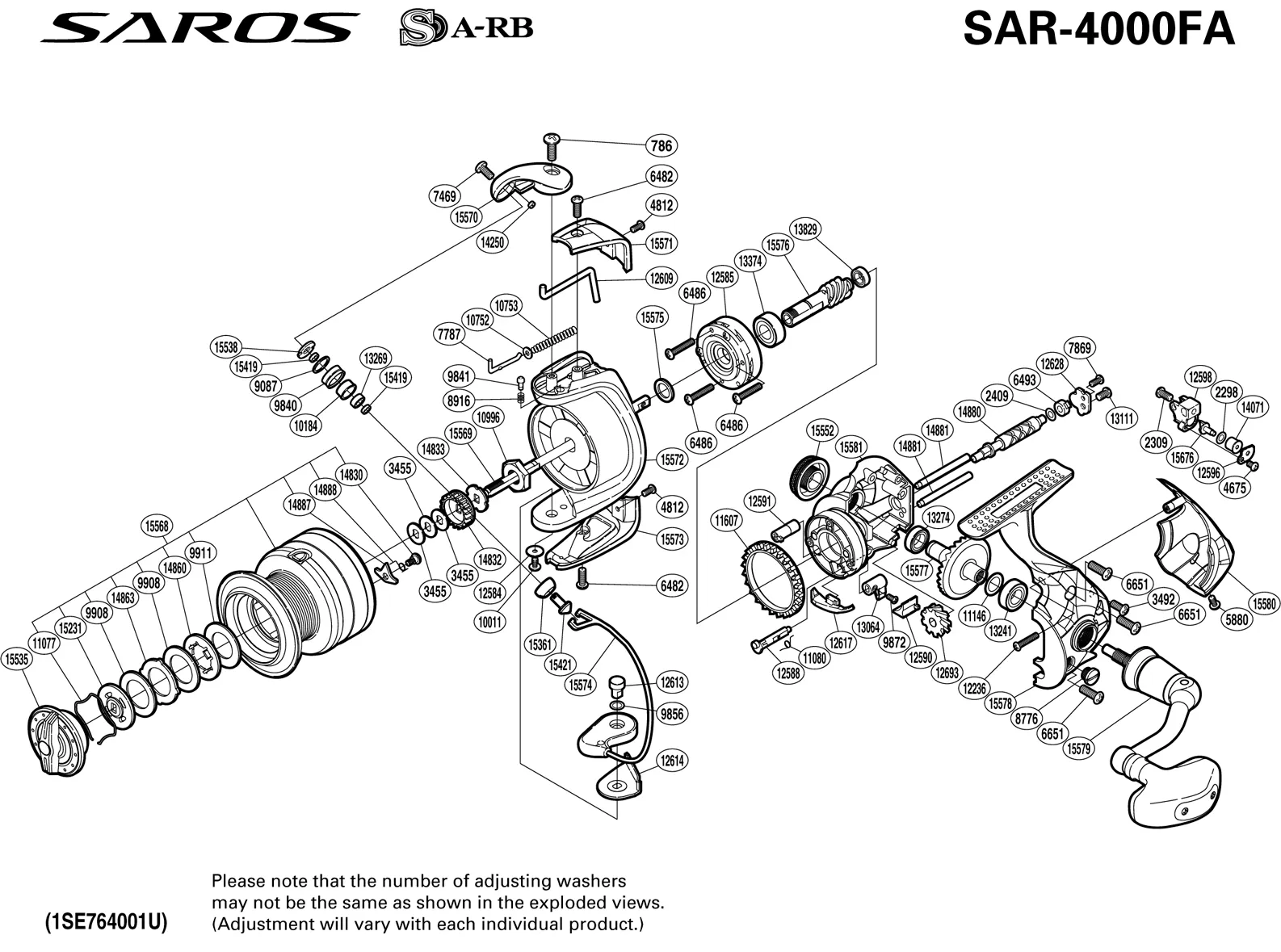

SAROS - SAR4000FA: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0786 | BAIL ARM SCREW |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 6482 | PROTECTOR SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6651 | BAIL ARM SCREW |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8776 | OIL CAP |
| RD 8916 | CLICK SPRING |
| RD 9087 | LINE ROLLER SPACER |
| RD 9840 | LINE ROLLER |
| RD 9841 | CLICK PIN |
| RD 9856 | WASHER |
| RD 9872 | SCREW |
| RD 9908 | DRAG WASHER A |
| RD 9911 | DRAG WASHER B |
| RD10011 | SCREW |
| RD10184 | LINE ROLLER BUSHING |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10753 | BAIL SPRING |
| RD10996 | ROTOR NUT |
| RD11077 | DRAG WASHERS RETAINER |
| RD11080 | ANTI-REVERSE CAM SPRING |
| RD11146 | WASHER |
| RD11607 | FRICTION RING |
| RD12236 | SCREW |
| RD12584 | WASHER |
| RD12585 | ROLLER CLUTCH ASSEMBLY |
| RD12588 | ANTI-REVERSE CAM |
| RD12590 | ANTI-REVERSE LEVER COVER |
| RD12591 | WORM BUSHING (FRONT) |
| RD12596 | OSCILLATING PAWL COVER |
| RD12598 | OSCILLATING SLIDER |
| RD12609 | BAIL TRIP LEVER |
| RD12613 | BAIL HOLD SUPPORT SHAFT |
| Part Number | Part Description |
| RD 0786 | BAIL ARM SCREW |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 6482 | PROTECTOR SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6651 | BAIL ARM SCREW |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8776 | OIL CAP |
| RD 8916 | CLICK SPRING |
| RD 9087 | LINE ROLLER SPACER |
| RD 9840 | LINE ROLLER |
| RD 9841 | CLICK PIN |
| RD 9856 | WASHER |
| RD 9872 | SCREW |
| RD 9908 | DRAG WASHER A |
| RD 9911 | DRAG WASHER B |
| RD10011 | SCREW |
| RD10184 | LINE ROLLER BUSHING |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10753 | BAIL SPRING |
| RD10996 | ROTOR NUT |
| RD11077 | DRAG WASHERS RETAINER |
| RD11080 | ANTI-REVERSE CAM SPRING |
| RD11146 | WASHER |
| RD11607 | FRICTION RING |
| RD12236 | SCREW |
| RD12584 | WASHER |
| RD12585 | ROLLER CLUTCH ASSEMBLY |
| RD12588 | ANTI-REVERSE CAM |
| RD12590 | ANTI-REVERSE LEVER COVER |
| RD12591 | WORM BUSHING (FRONT) |
| RD12596 | OSCILLATING PAWL COVER |
| RD12598 | OSCILLATING SLIDER |
| RD12609 | BAIL TRIP LEVER |
| RD12613 | BAIL HOLD SUPPORT SHAFT |
