SIENNA REAR DRAG - SN2500RD
SIENNA REAR DRAG

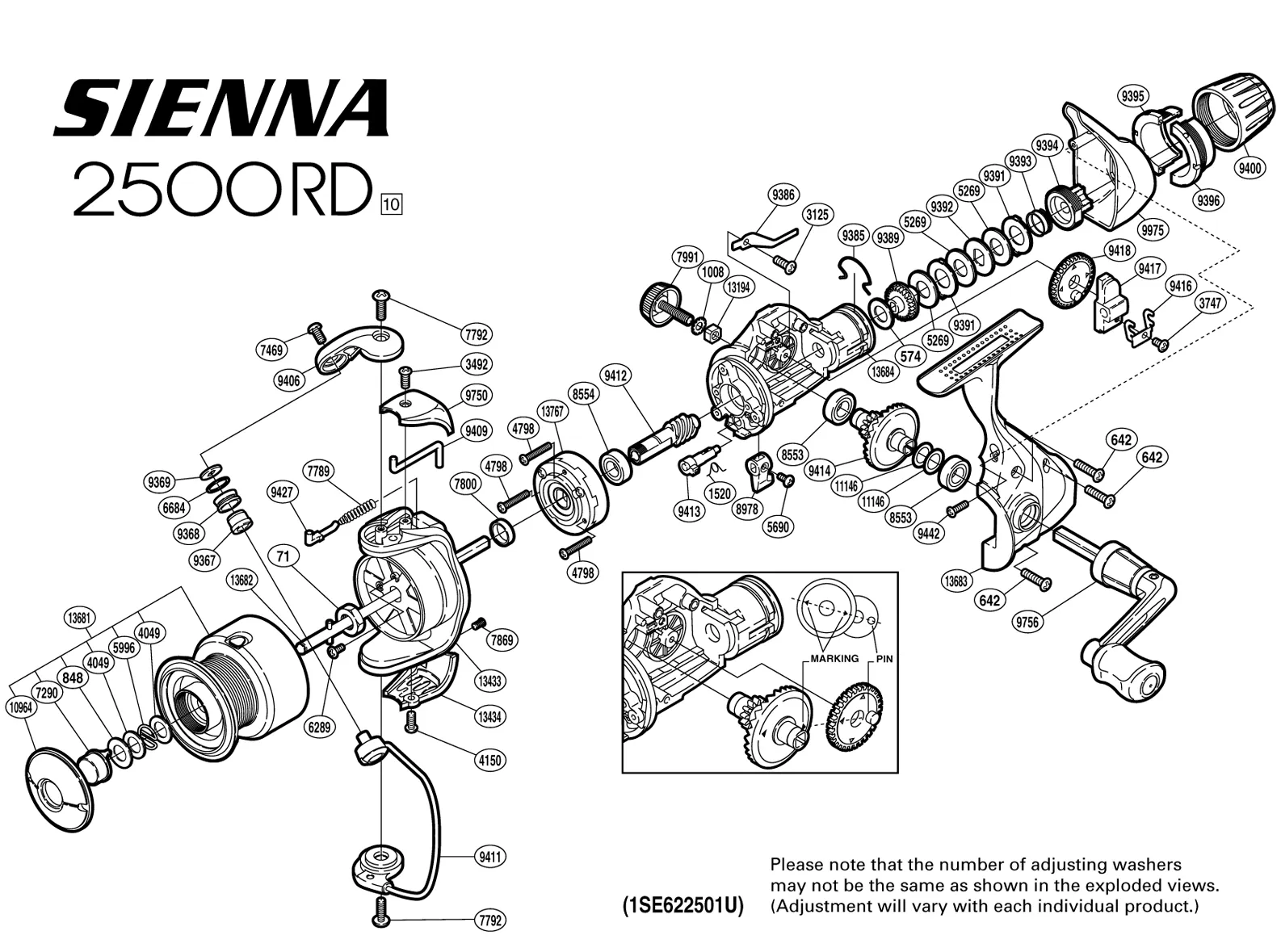

SIENNA REAR DRAG - SN2500RD: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0574 | |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0848 | DRAG SPRING WASHER A |
| RD 1008 | HANDLE LOCK WASHER |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 3125 | DRAG CLICK SCREW |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3747 | SLIDER RETAINER SCREW |
| RD 4049 | DRAG SPRING WASHER |
| RD 4150 | BAIL SPRING COVER |
| RD 4798 | ROLLER CLUTCH SCREW |
| RD 5269 | DRAG WASHER "H" BLUE |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5996 | SPOOL SPRING |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7290 | PUSH BUTTON |
| RD 7469 | LINE ROLLER SCREW |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 7991 | HANDLE SCREW CAP |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 9367 | LINE ROLLER BUSHING |
| RD 9368 | LINE ROLLER |
| RD 9369 | LINE ROLLER WASHER |
| RD 9385 | HOLD CLICK SPRING |
| RD 9386 | DRAG CLICK |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0574 | |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0848 | DRAG SPRING WASHER A |
| RD 1008 | HANDLE LOCK WASHER |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 3125 | DRAG CLICK SCREW |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3747 | SLIDER RETAINER SCREW |
| RD 4049 | DRAG SPRING WASHER |
| RD 4150 | BAIL SPRING COVER |
| RD 4798 | ROLLER CLUTCH SCREW |
| RD 5269 | DRAG WASHER "H" BLUE |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5996 | SPOOL SPRING |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7290 | PUSH BUTTON |
| RD 7469 | LINE ROLLER SCREW |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 7991 | HANDLE SCREW CAP |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 9367 | LINE ROLLER BUSHING |
| RD 9368 | LINE ROLLER |
| RD 9369 | LINE ROLLER WASHER |
| RD 9385 | HOLD CLICK SPRING |
| RD 9386 | DRAG CLICK |
