SOLSTACE FRONT DRAG - SO1000FI

SOLSTACE FRONT DRAG - SO1000FI

SOLSTACE FRONT DRAG

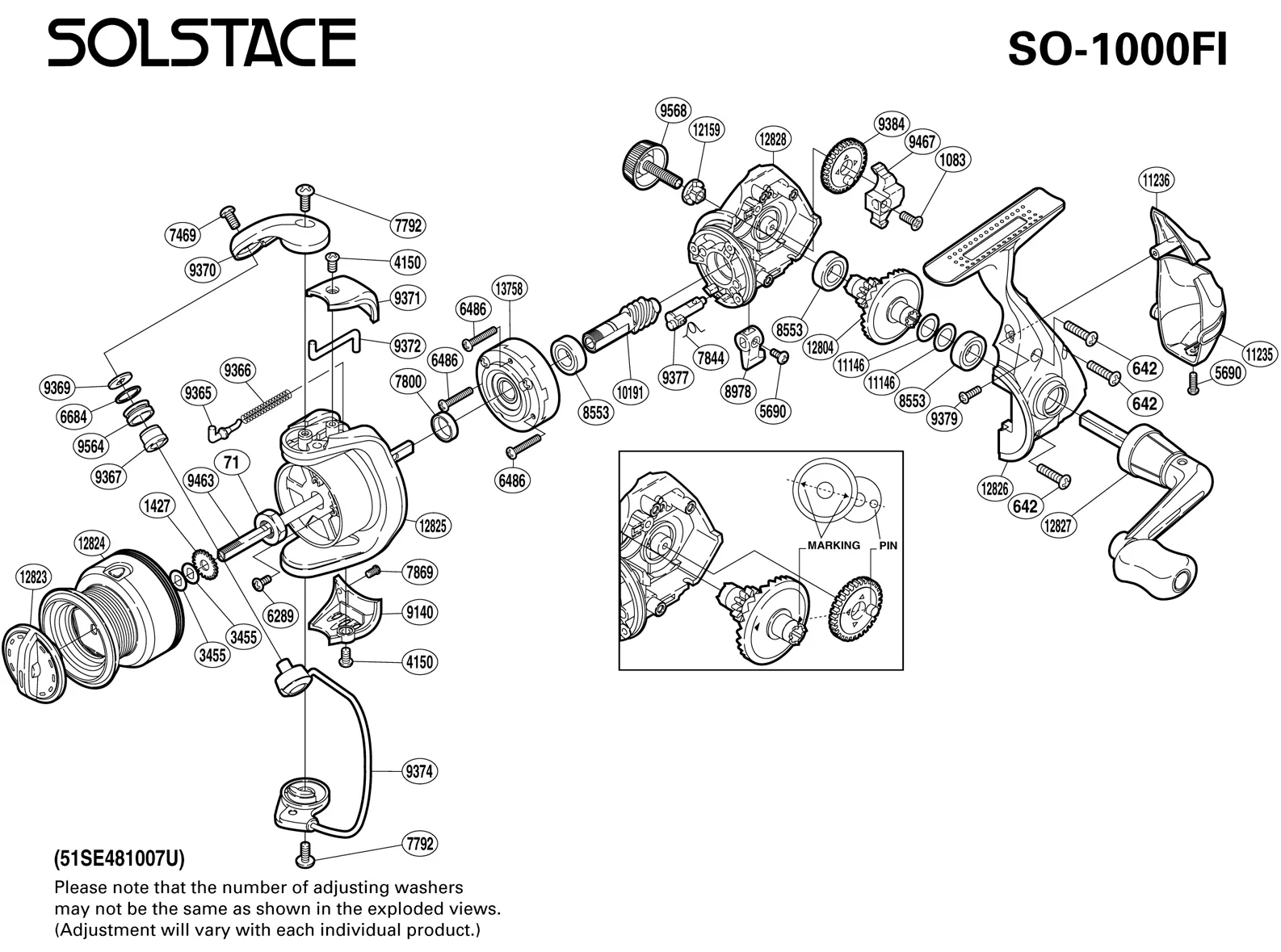

SOLSTACE FRONT DRAG - SO1000FI: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 1083SLIDER RETAINER SCREW
RD 1427SPOOL SUPPORT
RD 3455SPOOL WASHER (3PK)
RD 4150BAIL SPRING COVER
RD 5690MULTI-PURPOSE SCREW
RD 6289NUT LOCK SCREW
RD 6486ROLLER CLUTCH SCREW
RD 6684LINE ROLLER SPACER
RD 7469LINE ROLLER SCREW
RD 7792MULIT-PURPOSE SCREW
RD 7800ROTOR RING
RD 7844ANTI-REVERSE CAM SPRING
RD 7869ROTOR SIDE COVER SCREW
RD 8553BALL BEARING
RD 8978ANTI-REVERSE LEVER
RD 9140BAIL HOLD SUPPORT GUARD
RD 9365BAIL SPRING GUIDE
RD 9366BAIL SPRING
RD 9367LINE ROLLER BUSHING
RD 9369LINE ROLLER WASHER
RD 9370BAIL ARM
Part NumberPart Description
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 1083SLIDER RETAINER SCREW
RD 1427SPOOL SUPPORT
RD 3455SPOOL WASHER (3PK)
RD 4150BAIL SPRING COVER
RD 5690MULTI-PURPOSE SCREW
RD 6289NUT LOCK SCREW
RD 6486ROLLER CLUTCH SCREW
RD 6684LINE ROLLER SPACER
RD 7469LINE ROLLER SCREW
RD 7792MULIT-PURPOSE SCREW
RD 7800ROTOR RING
RD 7844ANTI-REVERSE CAM SPRING
RD 7869ROTOR SIDE COVER SCREW
RD 8553BALL BEARING
RD 8978ANTI-REVERSE LEVER
RD 9140BAIL HOLD SUPPORT GUARD
RD 9365BAIL SPRING GUIDE
RD 9366BAIL SPRING
RD 9367LINE ROLLER BUSHING
RD 9369LINE ROLLER WASHER
RD 9370BAIL ARM
