SONORA - SON1000FB
SONORA

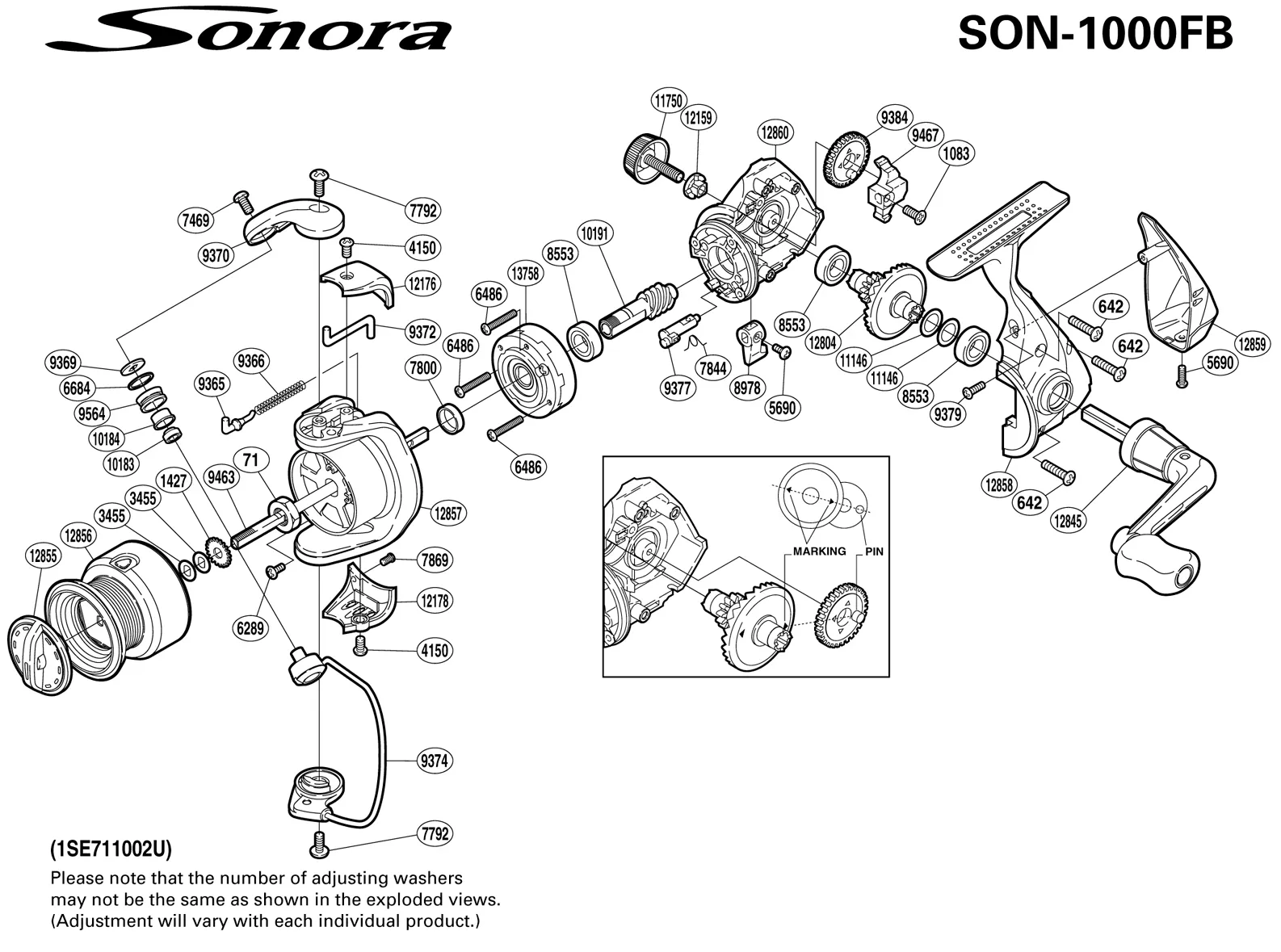

SONORA - SON1000FB: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 1083 | SLIDER RETAINER SCREW |
| RD 1427 | SPOOL SUPPORT |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 4150 | BAIL SPRING COVER |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7844 | ANTI-REVERSE CAM SPRING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8553 | BALL BEARING |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 9365 | BAIL SPRING GUIDE |
| RD 9366 | BAIL SPRING |
| RD 9369 | LINE ROLLER WASHER |
| RD 9370 | BAIL ARM |
| RD 9372 | BAIL TRIP LEVER |
| RD 9374 |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 1083 | SLIDER RETAINER SCREW |
| RD 1427 | SPOOL SUPPORT |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 4150 | BAIL SPRING COVER |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7844 | ANTI-REVERSE CAM SPRING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8553 | BALL BEARING |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 9365 | BAIL SPRING GUIDE |
| RD 9366 | BAIL SPRING |
| RD 9369 | LINE ROLLER WASHER |
| RD 9370 | BAIL ARM |
| RD 9372 | BAIL TRIP LEVER |
| RD 9374 |
