SONORA - SON2500FB
SONORA

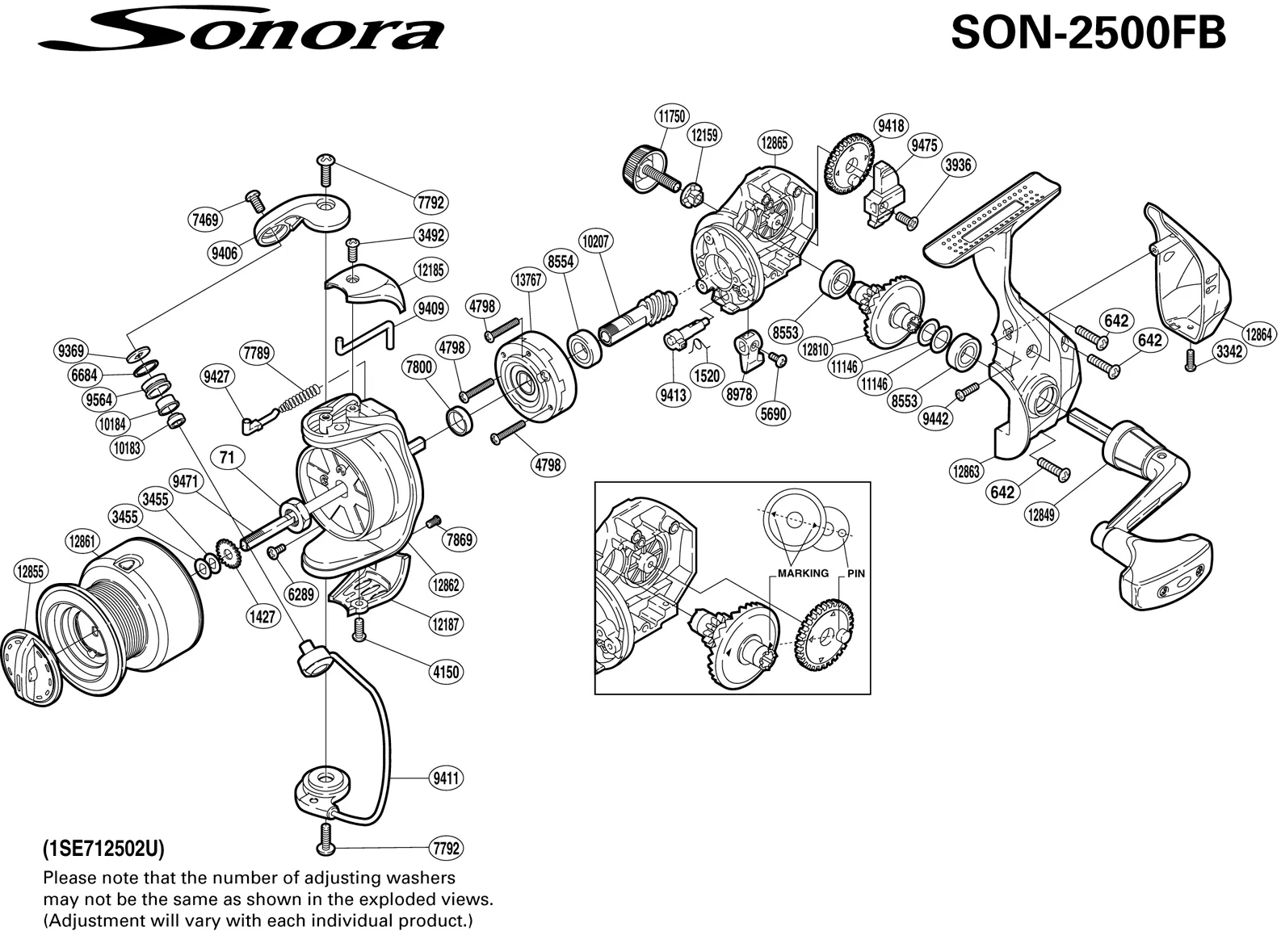

SONORA - SON2500FB: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 1427 | SPOOL SUPPORT |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 3342 | BEARING RETAINER SCREW |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3936 TGT1167 | OSCILLATING PAWL COVER SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4798 | ROLLER CLUTCH SCREW |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 1427 | SPOOL SUPPORT |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 3342 | BEARING RETAINER SCREW |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3936 TGT1167 | OSCILLATING PAWL COVER SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4798 | ROLLER CLUTCH SCREW |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
