SPIREX FRONT DRAG - SR1000FG

SPIREX FRONT DRAG - SR1000FG

SPIREX FRONT DRAG

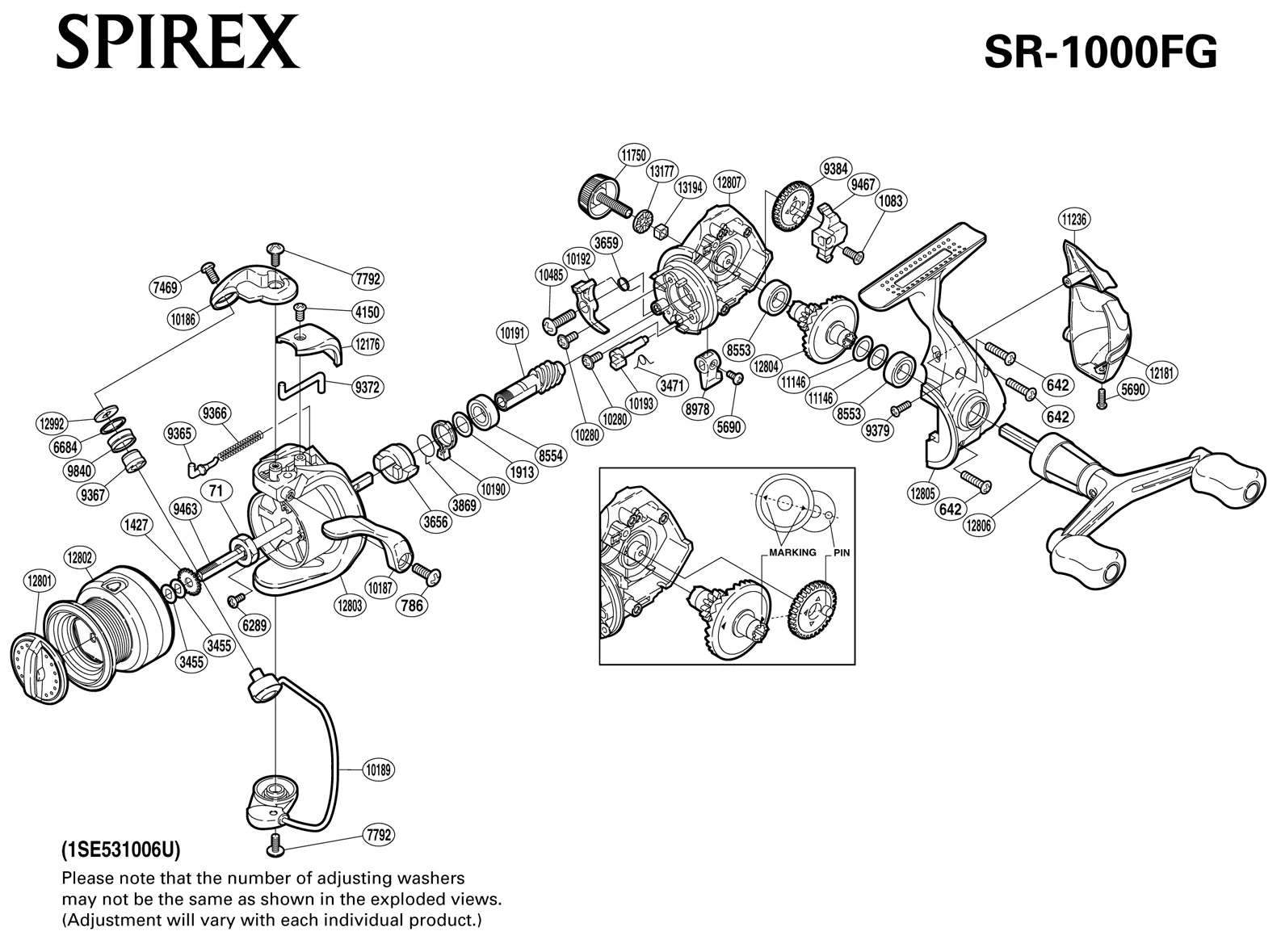

SPIREX FRONT DRAG - SR1000FG: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 0786BAIL ARM SCREW
RD 1083SLIDER RETAINER SCREW
RD 1427SPOOL SUPPORT
RD 1913
RD 3455SPOOL WASHER (3PK)
RD 3471ANTI-REVERSE CAM SPRING
RD 3656ANTI-REVERSE RATCHET
RD 3659ANTI-REVERSE PAWL SPRING
RD 3869ANTI-REVERSE LOCK OUT SPRING
RD 4150BAIL SPRING COVER
RD 5690MULTI-PURPOSE SCREW
RD 6289NUT LOCK SCREW
RD 6684LINE ROLLER SPACER
RD 7469LINE ROLLER SCREW
RD 7792MULIT-PURPOSE SCREW
RD 8553BALL BEARING
RD 8554BALL BEARING
RD 8978ANTI-REVERSE LEVER
RD 9365BAIL SPRING GUIDE
RD 9366BAIL SPRING
RD 9367LINE ROLLER BUSHING
RD 9372BAIL TRIP LEVER
RD 9379SCREW
RD 9384OSCILLATING GEAR
Part NumberPart Description
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 0786BAIL ARM SCREW
RD 1083SLIDER RETAINER SCREW
RD 1427SPOOL SUPPORT
RD 1913
RD 3455SPOOL WASHER (3PK)
RD 3471ANTI-REVERSE CAM SPRING
RD 3656ANTI-REVERSE RATCHET
RD 3659ANTI-REVERSE PAWL SPRING
RD 3869ANTI-REVERSE LOCK OUT SPRING
RD 4150BAIL SPRING COVER
RD 5690MULTI-PURPOSE SCREW
RD 6289NUT LOCK SCREW
RD 6684LINE ROLLER SPACER
RD 7469LINE ROLLER SCREW
RD 7792MULIT-PURPOSE SCREW
RD 8553BALL BEARING
RD 8554BALL BEARING
RD 8978ANTI-REVERSE LEVER
RD 9365BAIL SPRING GUIDE
RD 9366BAIL SPRING
RD 9367LINE ROLLER BUSHING
RD 9372BAIL TRIP LEVER
RD 9379SCREW
RD 9384OSCILLATING GEAR
