SPIREX FRONT DRAG - SR4000FG

SPIREX FRONT DRAG - SR4000FG

SPIREX FRONT DRAG

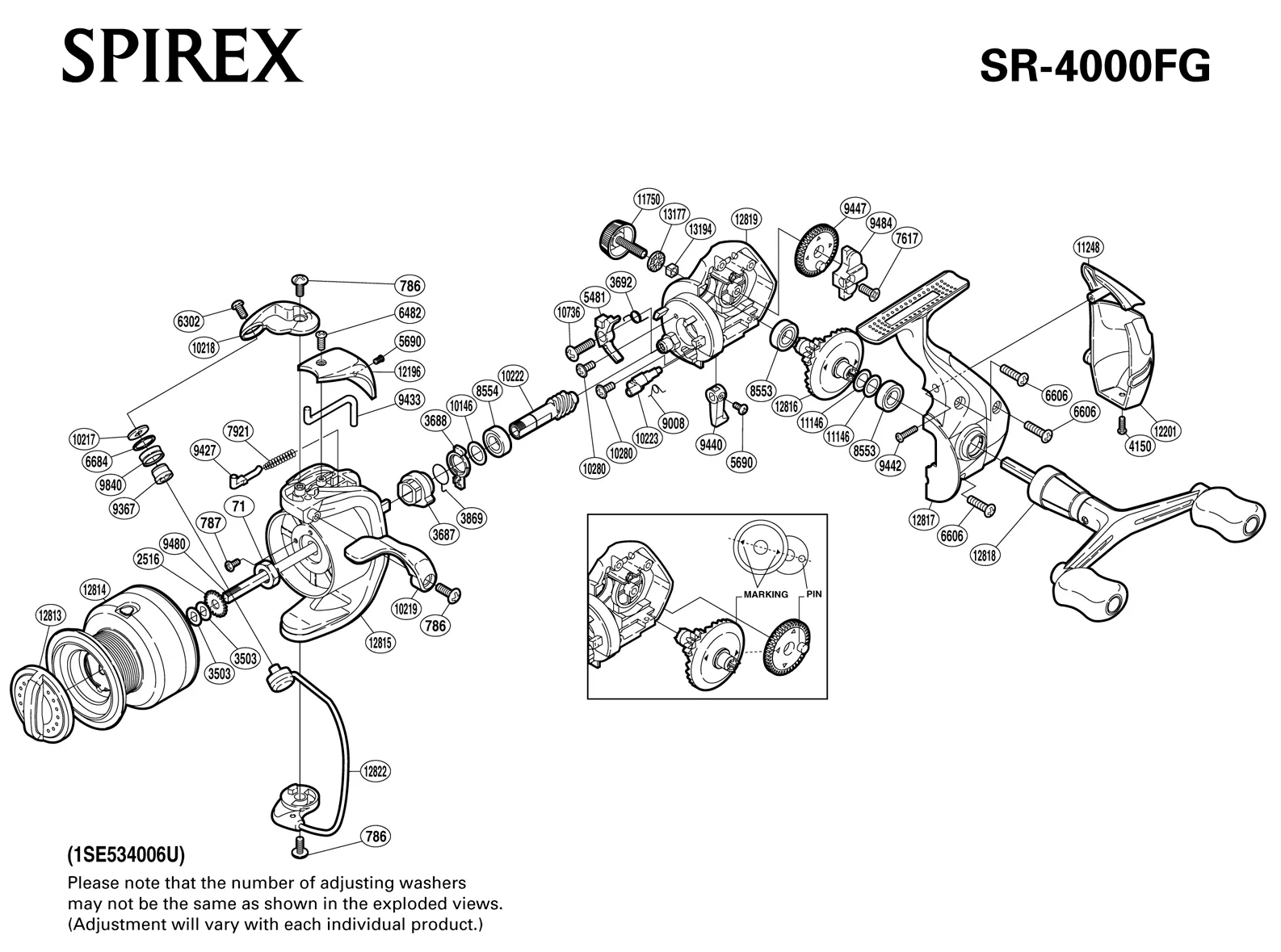

SPIREX FRONT DRAG - SR4000FG: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
RD 0071ROTOR NUT
RD 0786BAIL ARM SCREW
RD 0787
RD 2516SPOOL SUPPORT
RD 3503SPOOL WASHER
RD 3687ANTI-REVERSE RATCHET
RD 3688ANTI-REVERSE LOCK OUT
RD 3692ANTI-REVERSE PAWL SPRING
RD 3869ANTI-REVERSE LOCK OUT SPRING
RD 4150BAIL SPRING COVER
RD 5481ANTI-REVERSE PAWL
RD 5690MULTI-PURPOSE SCREW
RD 6302LINE ROLLER SCREW
RD 6482PROTECTOR SCREW
RD 6606SIDE COVER SCREW (MEDIUM)
RD 6684LINE ROLLER SPACER
RD 7617SLIDER RETAINER SCREW
RD 7921BAIL SPRING
RD 8553BALL BEARING
RD 8554BALL BEARING
RD 9008ANTI-REVERSE CAM SPRING
RD 9367LINE ROLLER BUSHING
RD 9427BAIL SPRING GUIDE
RD 9433BAIL TRIP LEVER
RD 9440ANTI-REVERSE LEVER
RD 9442SCREW
Part NumberPart Description
RD 0071ROTOR NUT
RD 0786BAIL ARM SCREW
RD 0787
RD 2516SPOOL SUPPORT
RD 3503SPOOL WASHER
RD 3687ANTI-REVERSE RATCHET
RD 3688ANTI-REVERSE LOCK OUT
RD 3692ANTI-REVERSE PAWL SPRING
RD 3869ANTI-REVERSE LOCK OUT SPRING
RD 4150BAIL SPRING COVER
RD 5481ANTI-REVERSE PAWL
RD 5690MULTI-PURPOSE SCREW
RD 6302LINE ROLLER SCREW
RD 6482PROTECTOR SCREW
RD 6606SIDE COVER SCREW (MEDIUM)
RD 6684LINE ROLLER SPACER
RD 7617SLIDER RETAINER SCREW
RD 7921BAIL SPRING
RD 8553BALL BEARING
RD 8554BALL BEARING
RD 9008ANTI-REVERSE CAM SPRING
RD 9367LINE ROLLER BUSHING
RD 9427BAIL SPRING GUIDE
RD 9433BAIL TRIP LEVER
RD 9440ANTI-REVERSE LEVER
RD 9442SCREW
