SPIREX REAR DRAG - SR1000RG
SPIREX REAR DRAG

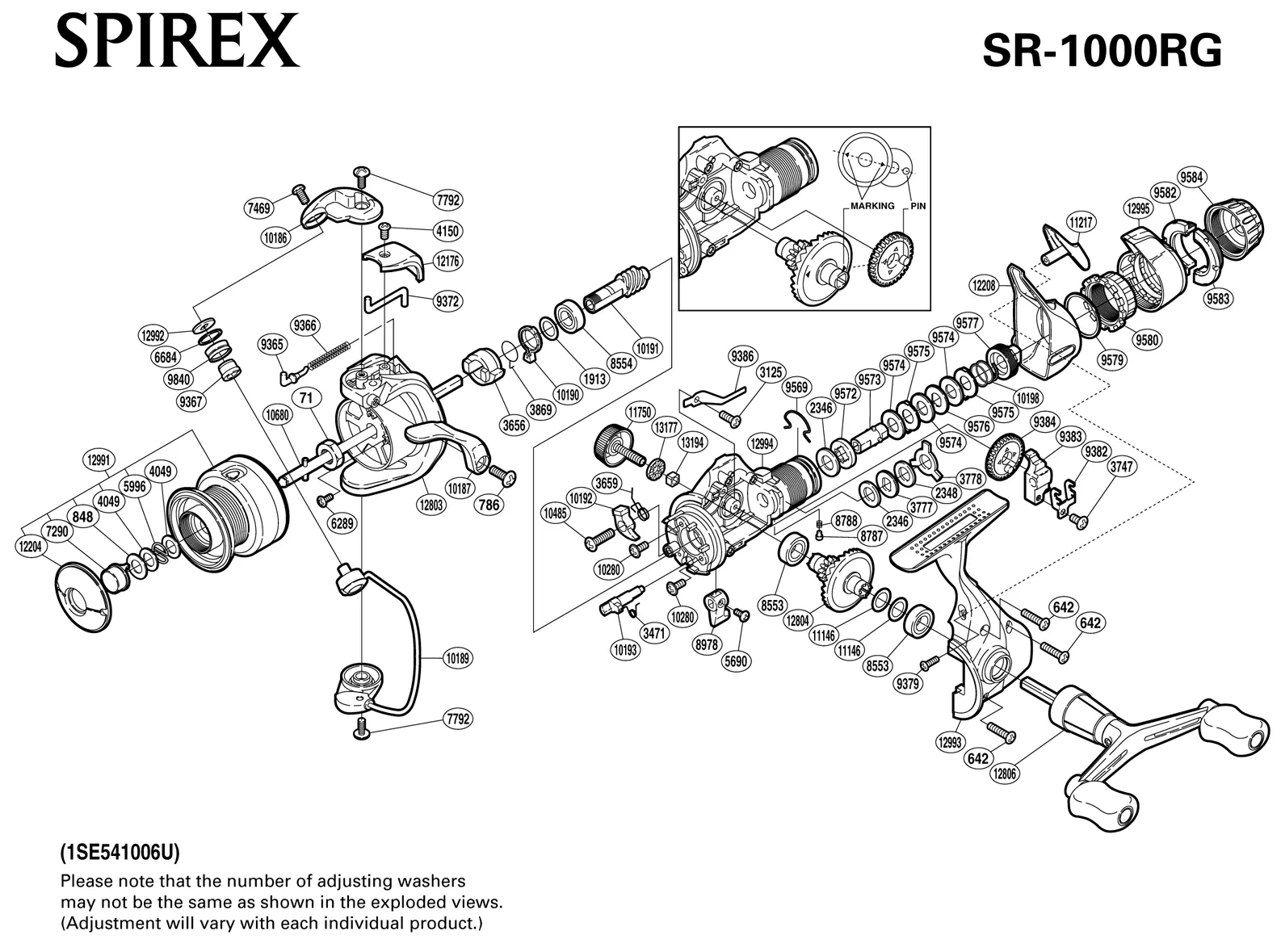

SPIREX REAR DRAG - SR1000RG: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0786 | BAIL ARM SCREW |
| RD 0848 | DRAG SPRING WASHER A |
| RD 1913 | |
| RD 2346 | DRAG WASHER "C2"(WHITE) |
| RD 2348 | DRAG WASHER (C1) |
| RD 3125 | DRAG CLICK SCREW |
| RD 3471 | ANTI-REVERSE CAM SPRING |
| RD 3656 | ANTI-REVERSE RATCHET |
| RD 3659 | ANTI-REVERSE PAWL SPRING |
| RD 3747 | SLIDER RETAINER SCREW |
| RD 3777 | CLICK GEAR |
| RD 3778 | EARED WASHER "BF" |
| RD 3869 | ANTI-REVERSE LOCK OUT SPRING |
| RD 4049 | DRAG SPRING WASHER |
| RD 4150 | BAIL SPRING COVER |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5996 | SPOOL SPRING |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7290 | PUSH BUTTON |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 8787 | CLICK PIN (B) |
| RD 8788 | CLICK SPRING (B) |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 9365 | BAIL SPRING GUIDE |
| RD 9366 | BAIL SPRING |
| RD 9367 | LINE ROLLER BUSHING |
| RD 9372 | BAIL TRIP LEVER |
| RD 9379 | SCREW |
| RD 9382 | OSCILLATING SLIDER RETAINER |
| RD 9383 | OSCILLATING SLIDER |
| RD 9384 | OSCILLATING GEAR |
| RD 9386 | DRAG CLICK |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0786 | BAIL ARM SCREW |
| RD 0848 | DRAG SPRING WASHER A |
| RD 1913 | |
| RD 2346 | DRAG WASHER "C2"(WHITE) |
| RD 2348 | DRAG WASHER (C1) |
| RD 3125 | DRAG CLICK SCREW |
| RD 3471 | ANTI-REVERSE CAM SPRING |
| RD 3656 | ANTI-REVERSE RATCHET |
| RD 3659 | ANTI-REVERSE PAWL SPRING |
| RD 3747 | SLIDER RETAINER SCREW |
| RD 3777 | CLICK GEAR |
| RD 3778 | EARED WASHER "BF" |
| RD 3869 | ANTI-REVERSE LOCK OUT SPRING |
| RD 4049 | DRAG SPRING WASHER |
| RD 4150 | BAIL SPRING COVER |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5996 | SPOOL SPRING |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7290 | PUSH BUTTON |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 8787 | CLICK PIN (B) |
| RD 8788 | CLICK SPRING (B) |
| RD 8978 | ANTI-REVERSE LEVER |
| RD 9365 | BAIL SPRING GUIDE |
| RD 9366 | BAIL SPRING |
| RD 9367 | LINE ROLLER BUSHING |
| RD 9372 | BAIL TRIP LEVER |
| RD 9379 | SCREW |
| RD 9382 | OSCILLATING SLIDER RETAINER |
| RD 9383 | OSCILLATING SLIDER |
| RD 9384 | OSCILLATING GEAR |
| RD 9386 | DRAG CLICK |
