SPIREX REAR DRAG - SR4000RG
SPIREX REAR DRAG

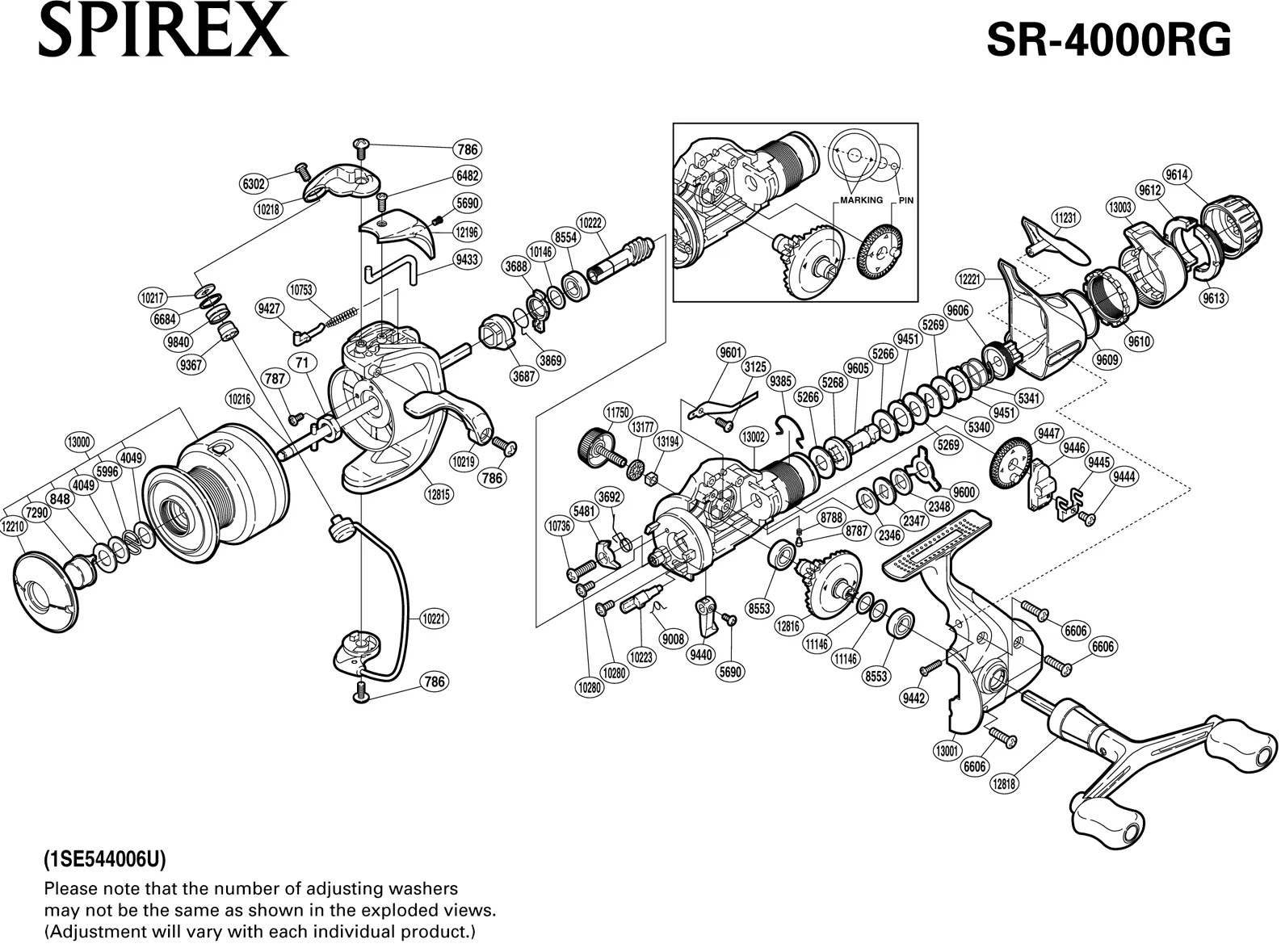

SPIREX REAR DRAG - SR4000RG: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 0848 | DRAG SPRING WASHER A |
| RD 2346 | DRAG WASHER "C2"(WHITE) |
| RD 2347 | CLICK GEAR |
| RD 2348 | DRAG WASHER (C1) |
| RD 3125 | DRAG CLICK SCREW |
| RD 3687 | ANTI-REVERSE RATCHET |
| RD 3688 | ANTI-REVERSE LOCK OUT |
| RD 3692 | ANTI-REVERSE PAWL SPRING |
| RD 3869 | ANTI-REVERSE LOCK OUT SPRING |
| RD 4049 | DRAG SPRING WASHER |
| RD 5266 | DRAG WASHER "H" (CLOTH) |
| RD 5268 | DRAG SHAFT (B) |
| RD 5269 | DRAG WASHER "H" BLUE |
| RD 5340 | KEY WASHER A |
| RD 5341 | DRAG COIL SPRING |
| RD 5481 | ANTI-REVERSE PAWL |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5996 | SPOOL SPRING |
| RD 6302 | LINE ROLLER SCREW |
| RD 6482 | PROTECTOR SCREW |
| RD 6606 | SIDE COVER SCREW (MEDIUM) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7290 | PUSH BUTTON |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 8787 | CLICK PIN (B) |
| RD 8788 | CLICK SPRING (B) |
| RD 9008 | ANTI-REVERSE CAM SPRING |
| RD 9367 | LINE ROLLER BUSHING |
| RD 9385 | HOLD CLICK SPRING |
| RD 9427 | BAIL SPRING GUIDE |
| RD 9433 | BAIL TRIP LEVER |
| RD 9440 | ANTI-REVERSE LEVER |
| RD 9442 | SCREW |
| RD 9444 BNT0011 | SLIDER RETAINER SCREW |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 0848 | DRAG SPRING WASHER A |
| RD 2346 | DRAG WASHER "C2"(WHITE) |
| RD 2347 | CLICK GEAR |
| RD 2348 | DRAG WASHER (C1) |
| RD 3125 | DRAG CLICK SCREW |
| RD 3687 | ANTI-REVERSE RATCHET |
| RD 3688 | ANTI-REVERSE LOCK OUT |
| RD 3692 | ANTI-REVERSE PAWL SPRING |
| RD 3869 | ANTI-REVERSE LOCK OUT SPRING |
| RD 4049 | DRAG SPRING WASHER |
| RD 5266 | DRAG WASHER "H" (CLOTH) |
| RD 5268 | DRAG SHAFT (B) |
| RD 5269 | DRAG WASHER "H" BLUE |
| RD 5340 | KEY WASHER A |
| RD 5341 | DRAG COIL SPRING |
| RD 5481 | ANTI-REVERSE PAWL |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5996 | SPOOL SPRING |
| RD 6302 | LINE ROLLER SCREW |
| RD 6482 | PROTECTOR SCREW |
| RD 6606 | SIDE COVER SCREW (MEDIUM) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7290 | PUSH BUTTON |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 8787 | CLICK PIN (B) |
| RD 8788 | CLICK SPRING (B) |
| RD 9008 | ANTI-REVERSE CAM SPRING |
| RD 9367 | LINE ROLLER BUSHING |
| RD 9385 | HOLD CLICK SPRING |
| RD 9427 | BAIL SPRING GUIDE |
| RD 9433 | BAIL TRIP LEVER |
| RD 9440 | ANTI-REVERSE LEVER |
| RD 9442 | SCREW |
| RD 9444 BNT0011 | SLIDER RETAINER SCREW |
