STELLA FI - STL2500FD
STELLA FI

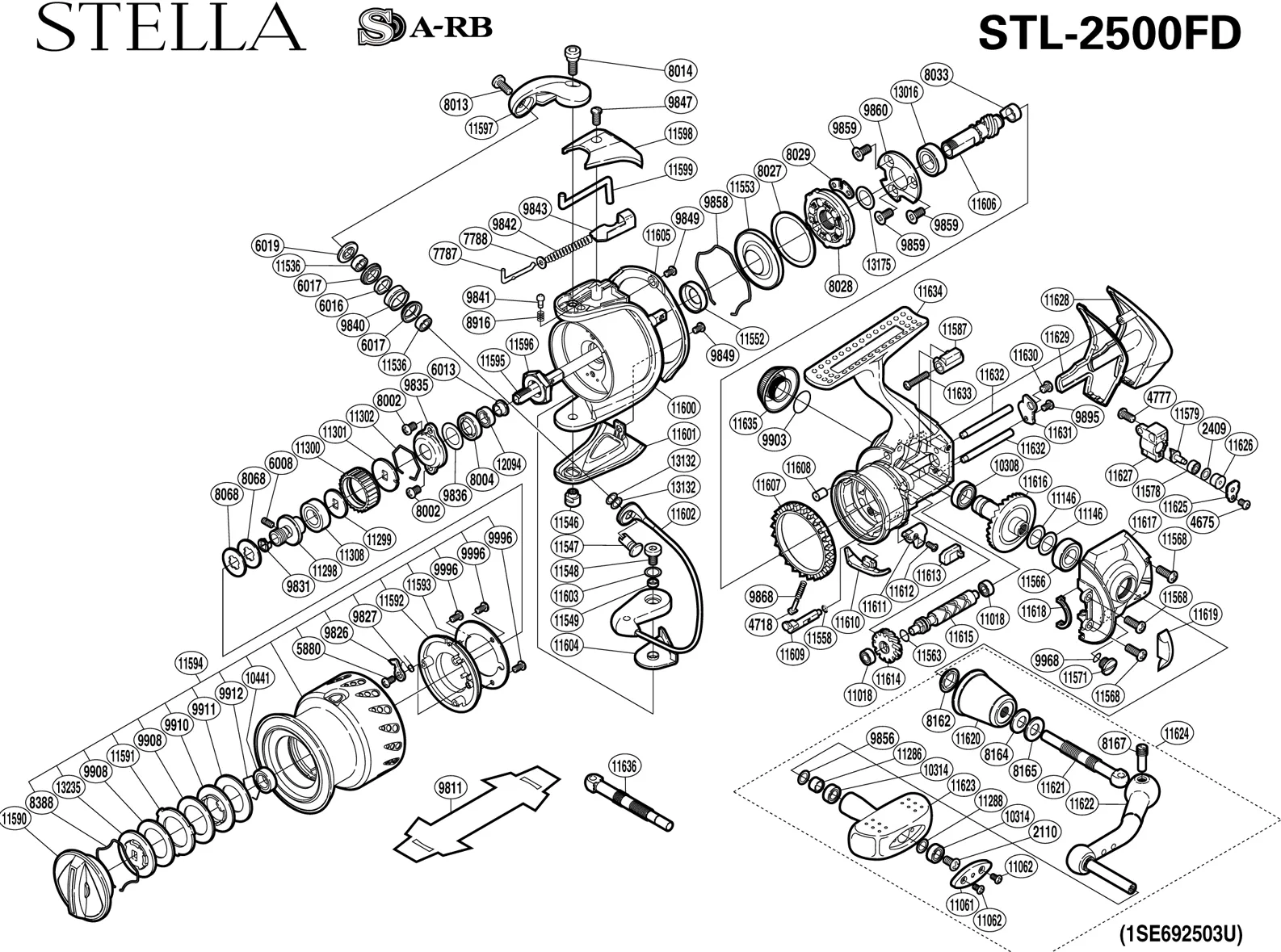

STELLA FI - STL2500FD: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 2110 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4718 | LEVER SPRING GUIDE (A) |
| RD 4777 | OSCILLATING PAWL COVER SCREW |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 6008 | SET SCREW |
| RD 6013 | MAIN SHAFT SPACER |
| RD 6016 | BEARING SPACER |
| RD 6017 | LINE ROLLER BUSHING |
| RD 6019 | LINE ROLLER WASHER |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7788 | SPRING GUIDE (A) SUPPORT |
| RD 8002 | NUT LOCK SCREW |
| RD 8004 | BEARING WATER PROOF |
| RD 8013 | LINE ROLLER SCREW |
| RD 8014 | BAIL ARM SCREW |
| RD 8027 | ROLLER CLUTCH OUTER SPACER |
| RD 8028 | ROLLER CLUTCH ASSEMBLY |
| RD 8029 | CLUTCH LNSOLE |
| RD 8033 | BUSHING |
| RD 8068 | SPOOL WASHER |
| RD 8162 | HANDLE SHAFT SEAL |
| RD 8164 | DISC SPRING |
| RD 8165 | LARGE HANDLE SHANK WASHER |
| RD 8167 | HANDLE SHAFT SCREW |
| RD 8171 | HANDLE KNOB ADJUST WASHER |
| RD 8388 | DRAG WASHER RETAINER |
| RD 8916 | CLICK SPRING |
| RD 8974 | ASJUSTING WASHER |
| RD 9811 | REEL SEAT SPACER |
| RD 9826 | DRAG CLICK |
| RD 9827 | DRAG CLICK SPRING |
| RD 9831 | BEARING BUSHING SPACER |
| RD 9835 | ROTOR NUT LOCK PLATE |
| RD 9836 | WASHER |
| RD 9840 | LINE ROLLER |
| RD 9841 | CLICK PIN |
| RD 9842 | BAIL SPRING |
| RD 9843 | BAIL SPRING SEAT |
| RD 9847 | SCREW |
| RD 9849 | SCREW |
| RD 9856 | WASHER |
| RD 9858 | ROLLER CLUTCH WATER PROOF RETA |
| RD 9859 | SCREW |
| RD 9860 | BEARING RETAINER |
| RD 9868 | ANTI-REVERSE CAM SPRING |
| RD 9895 | SCREW |
| RD 9903 | O RING |
| RD 9907 | KEY WASHER B |
| RD 9908 | DRAG WASHER A |
| RD 9910 | KEY WASHER |
| RD 9911 | DRAG WASHER B |
| RD 9912 BNT0032 | BEARING RETAINER |
| RD 9968 | O RING |
| RD 9996 | SCREW |
| RD10308 | BALL BEARING MADE IN JAPAN |
| RD10314 | BALL BEARING |
| RD10320 RD13241 | BALL BEARING |
| RD10441 | BALL BEARING MADE IN JAPAN |
| RD11018 | BALL BEARING MADE IN JAPAN |
| RD11061 | HANDLE KNOB I.D. PLATE |
| RD11062 | SCREW |
| RD11146 | WASHER |
| RD11286 | HANDLE KNOB SHAFT COLLAR |
| RD11288 | WASHER |
| RD11298 | BEARING BUSHING |
| Part Number | Part Description |
| RD 2110 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4718 | LEVER SPRING GUIDE (A) |
| RD 4777 | OSCILLATING PAWL COVER SCREW |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 6008 | SET SCREW |
| RD 6013 | MAIN SHAFT SPACER |
| RD 6016 | BEARING SPACER |
| RD 6017 | LINE ROLLER BUSHING |
| RD 6019 | LINE ROLLER WASHER |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7788 | SPRING GUIDE (A) SUPPORT |
| RD 8002 | NUT LOCK SCREW |
| RD 8004 | BEARING WATER PROOF |
| RD 8013 | LINE ROLLER SCREW |
| RD 8014 | BAIL ARM SCREW |
| RD 8027 | ROLLER CLUTCH OUTER SPACER |
| RD 8028 | ROLLER CLUTCH ASSEMBLY |
| RD 8029 | CLUTCH LNSOLE |
| RD 8033 | BUSHING |
| RD 8068 | SPOOL WASHER |
| RD 8162 | HANDLE SHAFT SEAL |
| RD 8164 | DISC SPRING |
| RD 8165 | LARGE HANDLE SHANK WASHER |
| RD 8167 | HANDLE SHAFT SCREW |
| RD 8171 | HANDLE KNOB ADJUST WASHER |
| RD 8388 | DRAG WASHER RETAINER |
| RD 8916 | CLICK SPRING |
| RD 8974 | ASJUSTING WASHER |
| RD 9811 | REEL SEAT SPACER |
| RD 9826 | DRAG CLICK |
| RD 9827 | DRAG CLICK SPRING |
| RD 9831 | BEARING BUSHING SPACER |
| RD 9835 | ROTOR NUT LOCK PLATE |
| RD 9836 | WASHER |
| RD 9840 | LINE ROLLER |
| RD 9841 | CLICK PIN |
| RD 9842 | BAIL SPRING |
| RD 9843 | BAIL SPRING SEAT |
| RD 9847 | SCREW |
| RD 9849 | SCREW |
| RD 9856 | WASHER |
| RD 9858 | ROLLER CLUTCH WATER PROOF RETA |
| RD 9859 | SCREW |
| RD 9860 | BEARING RETAINER |
| RD 9868 | ANTI-REVERSE CAM SPRING |
| RD 9895 | SCREW |
| RD 9903 | O RING |
| RD 9907 | KEY WASHER B |
| RD 9908 | DRAG WASHER A |
| RD 9910 | KEY WASHER |
| RD 9911 | DRAG WASHER B |
| RD 9912 BNT0032 | BEARING RETAINER |
| RD 9968 | O RING |
| RD 9996 | SCREW |
| RD10308 | BALL BEARING MADE IN JAPAN |
| RD10314 | BALL BEARING |
| RD10320 RD13241 | BALL BEARING |
| RD10441 | BALL BEARING MADE IN JAPAN |
| RD11018 | BALL BEARING MADE IN JAPAN |
| RD11061 | HANDLE KNOB I.D. PLATE |
| RD11062 | SCREW |
| RD11146 | WASHER |
| RD11286 | HANDLE KNOB SHAFT COLLAR |
| RD11288 | WASHER |
| RD11298 | BEARING BUSHING |
