STELLA FI - STL6000FA
STELLA FI

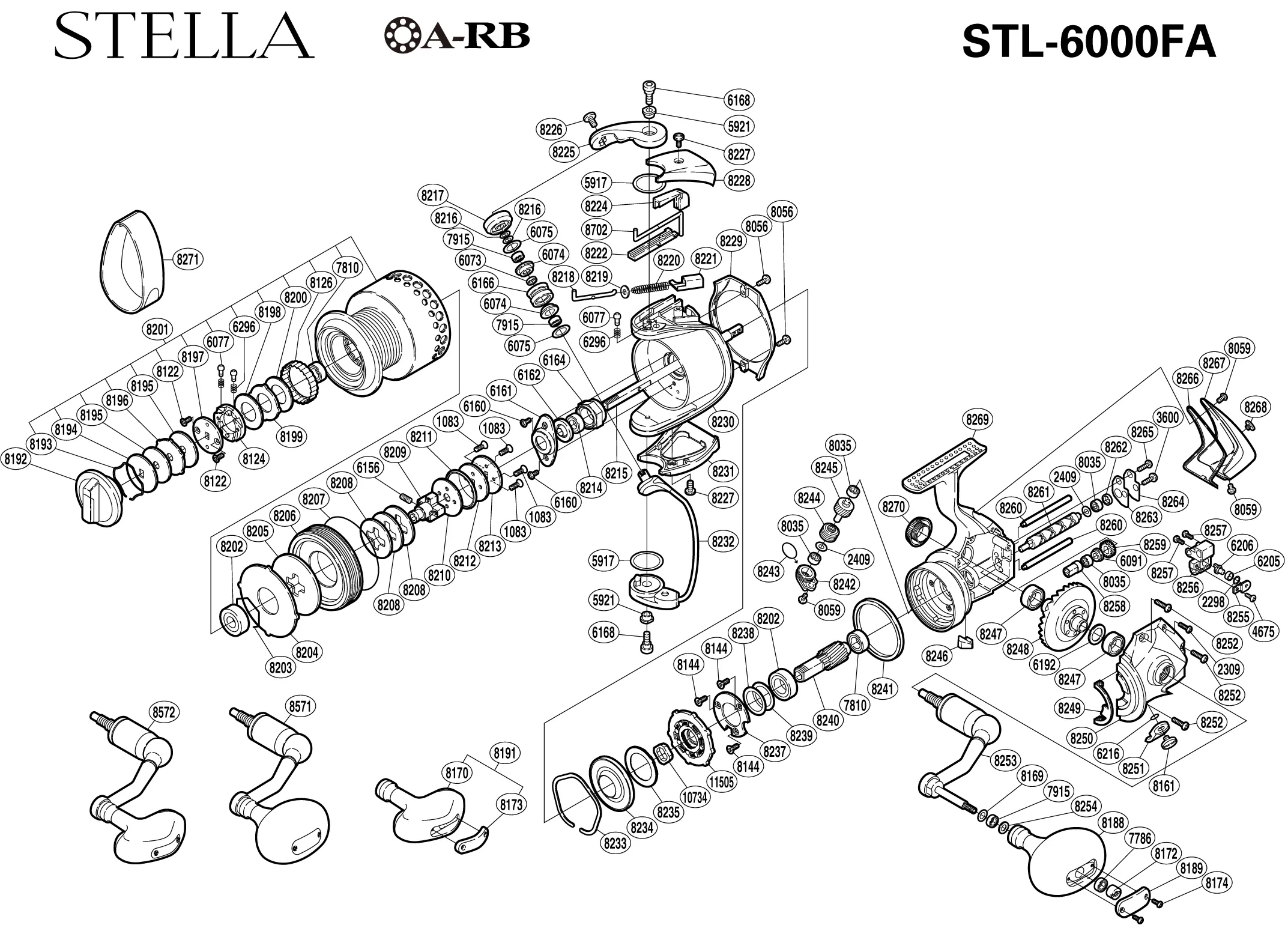

STELLA FI - STL6000FA: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 1083 | SLIDER RETAINER SCREW |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 5917 | BAIL ARM WASHER |
| RD 5921 | BAIL ARM SCREW COLLAR |
| RD 6073 | BEARING SPACER |
| RD 6074 | LINE ROLLER BUSHING |
| RD 6075 | |
| RD 6077 TT 0479 | CLICK PIN |
| RD 6091 | IDLE GEAR SPACER |
| RD 6156 | |
| RD 6160 BNT3148 | NUT LOCK SCREW |
| RD 6161 | ROTOR NUT LOCK PLATE |
| RD 6162 | BEARING WATER PROOF (B) |
| RD 6164 | ROTOR NUT |
| RD 6166 | LINE ROLLER |
| RD 6168 | BAIL ARM SCREW |
| RD 6192 | DRIVE GEAR WASHER |
| RD 6205 | OSCILLATING BUSHING |
| RD 6206 | OSCILLATING PAWL |
| RD 6216 BNT2427 | """O"" RING" |
| RD 6296 | CLICK SPRING |
| RD 7786 BNT3008 | BALL BEARING (ARB) |
| RD 7810 | |
| RD 7915 | BALL BEARING (ARB) |
| RD 8035 BNT3391 | BALL BEARING (ARB) |
| RD 8056 | PROTECTOR SCREW (C) |
| RD 8059 | PROTECTOR SCREW |
| RD 8122 | DRAG CLICK HOLDER COVER SCREW |
| RD 8124 | DRAG CLICK HOLDER |
| RD 8126 | DRAG CLICK COLLAR |
| RD 8144 | BEARING RETAINER SCREW |
| RD 8161 | OIL CAP |
| RD 8169 | HANDLE KNOB ADJUST WASHER |
| RD 8170 | HANDLE KNOB (T TYPE A) |
| RD 8172 | HANDLE KNOB NUT |
| RD 8173 | HANDLE KNOB I.D. PLATE |
| RD 8174 | HANDLE KNOB SCREW |
| RD 8188 | |
| RD 8189 | |
| RD 8191 | |
| RD 8192 | |
| RD 8193 | DRAG WASHER RETAINER |
| RD 8194 | KEY WASHER |
| RD 8195 | DRAG WASHER (C) |
| RD 8196 | EARED WASHER (A) |
| RD 8197 | DRAG CLICK HOLDER COVER |
| RD 8198 | DRAG WASHER (B) |
| RD 8199 | EARED WASHER (B) |
| RD 8200 | SPOOL UNDER WASHER |
| RD 8201 | SPOOL ASSEMBLY |
| RD 8202 TGT1151 | BALL BEARING (ARB) |
| RD 8203 | CLICK SPRING RETAINER |
| RD 8204 | DRAG WASHER |
| RD 8205 | SPOOL DRAG DISC |
| RD 8206 | DRAG COVER |
| RD 8207 | O RING |
| RD 8208 | |
| RD 8209 | BEARING BUSHING |
| RD 8210 | SPOOL SUPPORT (C) |
| Part Number | Part Description |
| RD 1083 | SLIDER RETAINER SCREW |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3600 TT 0627 | NUT LOCK SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 5917 | BAIL ARM WASHER |
| RD 5921 | BAIL ARM SCREW COLLAR |
| RD 6073 | BEARING SPACER |
| RD 6074 | LINE ROLLER BUSHING |
| RD 6075 | |
| RD 6077 TT 0479 | CLICK PIN |
| RD 6091 | IDLE GEAR SPACER |
| RD 6156 | |
| RD 6160 BNT3148 | NUT LOCK SCREW |
| RD 6161 | ROTOR NUT LOCK PLATE |
| RD 6162 | BEARING WATER PROOF (B) |
| RD 6164 | ROTOR NUT |
| RD 6166 | LINE ROLLER |
| RD 6168 | BAIL ARM SCREW |
| RD 6192 | DRIVE GEAR WASHER |
| RD 6205 | OSCILLATING BUSHING |
| RD 6206 | OSCILLATING PAWL |
| RD 6216 BNT2427 | """O"" RING" |
| RD 6296 | CLICK SPRING |
| RD 7786 BNT3008 | BALL BEARING (ARB) |
| RD 7810 | |
| RD 7915 | BALL BEARING (ARB) |
| RD 8035 BNT3391 | BALL BEARING (ARB) |
| RD 8056 | PROTECTOR SCREW (C) |
| RD 8059 | PROTECTOR SCREW |
| RD 8122 | DRAG CLICK HOLDER COVER SCREW |
| RD 8124 | DRAG CLICK HOLDER |
| RD 8126 | DRAG CLICK COLLAR |
| RD 8144 | BEARING RETAINER SCREW |
| RD 8161 | OIL CAP |
| RD 8169 | HANDLE KNOB ADJUST WASHER |
| RD 8170 | HANDLE KNOB (T TYPE A) |
| RD 8172 | HANDLE KNOB NUT |
| RD 8173 | HANDLE KNOB I.D. PLATE |
| RD 8174 | HANDLE KNOB SCREW |
| RD 8188 | |
| RD 8189 | |
| RD 8191 | |
| RD 8192 | |
| RD 8193 | DRAG WASHER RETAINER |
| RD 8194 | KEY WASHER |
| RD 8195 | DRAG WASHER (C) |
| RD 8196 | EARED WASHER (A) |
| RD 8197 | DRAG CLICK HOLDER COVER |
| RD 8198 | DRAG WASHER (B) |
| RD 8199 | EARED WASHER (B) |
| RD 8200 | SPOOL UNDER WASHER |
| RD 8201 | SPOOL ASSEMBLY |
| RD 8202 TGT1151 | BALL BEARING (ARB) |
| RD 8203 | CLICK SPRING RETAINER |
| RD 8204 | DRAG WASHER |
| RD 8205 | SPOOL DRAG DISC |
| RD 8206 | DRAG COVER |
| RD 8207 | O RING |
| RD 8208 | |
| RD 8209 | BEARING BUSHING |
| RD 8210 | SPOOL SUPPORT (C) |
