STRADIC CI4+ - STCI41000FAML
STRADIC CI4+

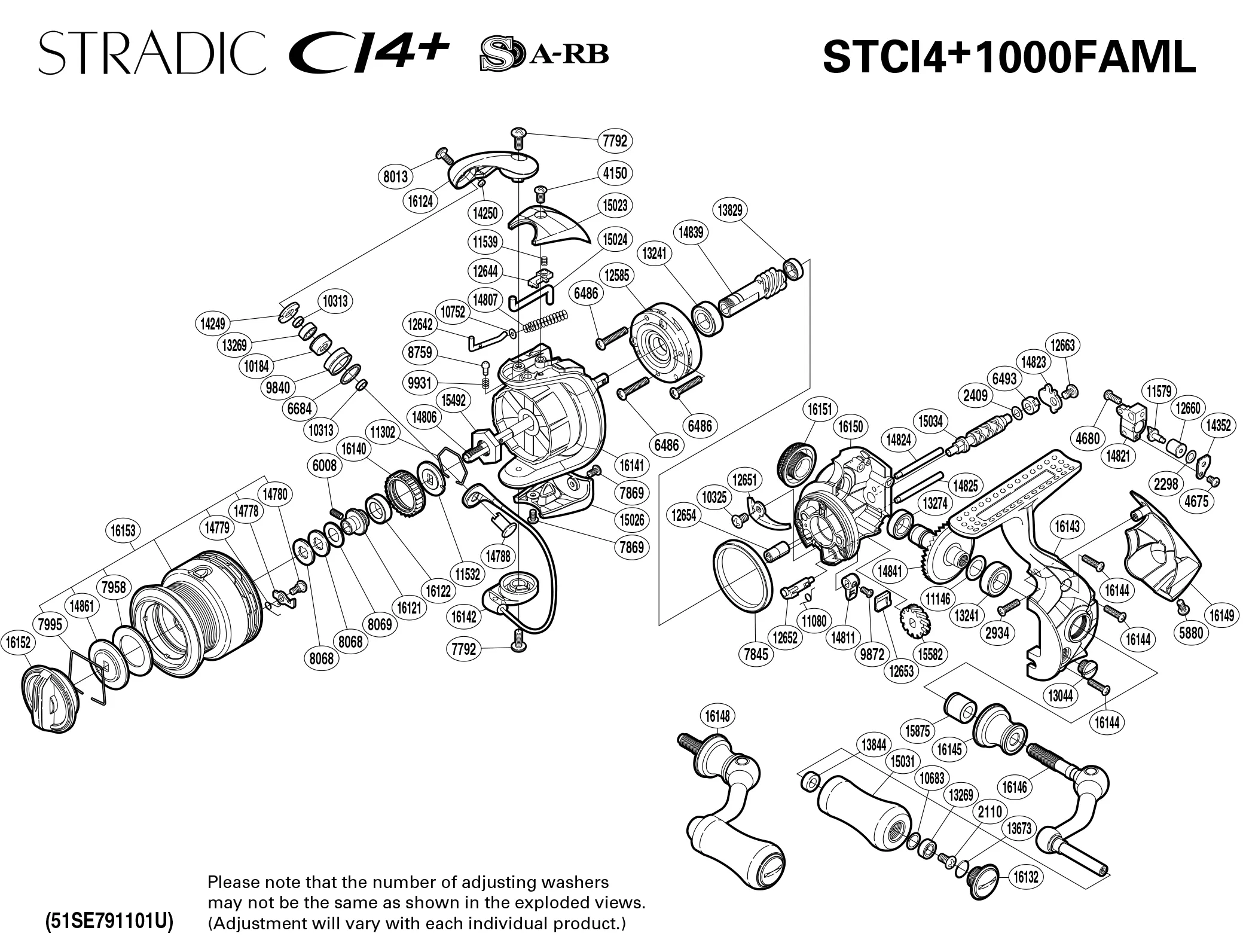

STRADIC CI4+ - STCI41000FAML: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 2110 | SLIDER RETAINER SCREW |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 2934 TGT0792 | DIAL CLICK SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4680 | SLIDER RETAINER SCREW |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 6008 | SET SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7845 | FRICTION RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 7958 | DRAG WASHER |
| RD 7995 | DRAG WASHER RETAINER |
| RD 8013 | LINE ROLLER SCREW |
| RD 8068 | SPOOL WASHER |
| RD 8069 | BEARING GUIDE PIN RETAINER |
| RD 8759 | CLICK PIN |
| RD 9840 | LINE ROLLER |
| RD 9872 | SCREW |
| RD 9931 | CLICK SPRING |
| RD10184 | LINE ROLLER BUSHING |
| RD10313 | BEARING SPACER |
| RD10325 | SCREW |
| RD10683 | WASHER |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD11080 | ANTI-REVERSE CAM SPRING |
| RD11146 | WASHER |
| RD11302 | RATCHET SPRING |
| RD11532 | SPOOL SUPPORT |
| RD11539 | BAIL TRIP LEVER SPRING |
| RD11579 | OSCILLATING PAWL |
| RD12585 | ROLLER CLUTCH ASSEMBLY |
| RD12642 | BAIL SPRING GUIDE A |
| RD12644 | BAIL TRIP COVER |
| RD12651 | BAIL TRIP STRIKE |
| RD12652 | ANTI-REVERSE CAM |
| RD12653 | ANTI-REVERSE LEVER COVER |
| RD12654 | WORM BUSHING (FRONT) |
| RD12660 | OSCILLATING SLIDER BUSHING |
| RD12663 | SCREW |
| RD13044 | OIL CAP |
| RD13241 | BALL BEARING |
| Part Number | Part Description |
| RD 2110 | SLIDER RETAINER SCREW |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 2934 TGT0792 | DIAL CLICK SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4680 | SLIDER RETAINER SCREW |
| RD 5880 BNT0609 | BEARING RETAINER SCREW |
| RD 6008 | SET SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7845 | FRICTION RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 7958 | DRAG WASHER |
| RD 7995 | DRAG WASHER RETAINER |
| RD 8013 | LINE ROLLER SCREW |
| RD 8068 | SPOOL WASHER |
| RD 8069 | BEARING GUIDE PIN RETAINER |
| RD 8759 | CLICK PIN |
| RD 9840 | LINE ROLLER |
| RD 9872 | SCREW |
| RD 9931 | CLICK SPRING |
| RD10184 | LINE ROLLER BUSHING |
| RD10313 | BEARING SPACER |
| RD10325 | SCREW |
| RD10683 | WASHER |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD11080 | ANTI-REVERSE CAM SPRING |
| RD11146 | WASHER |
| RD11302 | RATCHET SPRING |
| RD11532 | SPOOL SUPPORT |
| RD11539 | BAIL TRIP LEVER SPRING |
| RD11579 | OSCILLATING PAWL |
| RD12585 | ROLLER CLUTCH ASSEMBLY |
| RD12642 | BAIL SPRING GUIDE A |
| RD12644 | BAIL TRIP COVER |
| RD12651 | BAIL TRIP STRIKE |
| RD12652 | ANTI-REVERSE CAM |
| RD12653 | ANTI-REVERSE LEVER COVER |
| RD12654 | WORM BUSHING (FRONT) |
| RD12660 | OSCILLATING SLIDER BUSHING |
| RD12663 | SCREW |
| RD13044 | OIL CAP |
| RD13241 | BALL BEARING |
