STRADIC CI4+ - STCI44000F
STRADIC CI4+

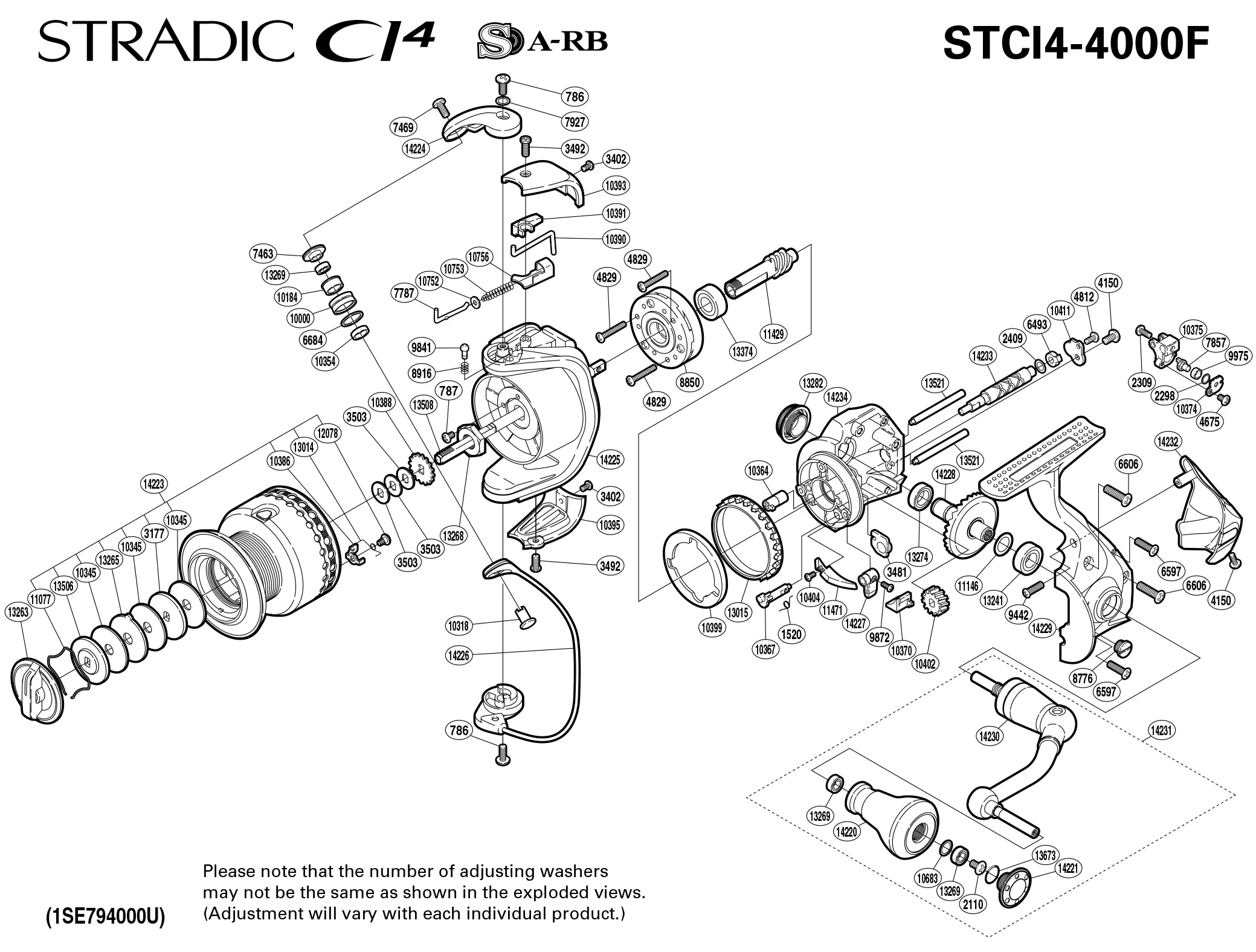

STRADIC CI4+ - STCI44000F: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 2110 | SLIDER RETAINER SCREW |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3177 | KEY WASHER |
| RD 3402 | COVER SCREW |
| RD 3481 | BUSHING |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 4150 | BAIL SPRING COVER |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 4829 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 6606 | SIDE COVER SCREW (MEDIUM) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7463 | LINE ROLLER WASHER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7857 | OSCILLATING PAWL |
| RD 7927 | ADJUSTING WASHER |
| RD 8776 | OIL CAP |
| RD 8850 | |
| RD 8916 | CLICK SPRING |
| RD 9442 | SCREW |
| RD 9841 | CLICK PIN |
| RD 9872 | SCREW |
| RD 9975 | OSCILLATING SLIDER BUSHING |
| RD10000 | LINE ROLLER |
| RD10184 | LINE ROLLER BUSHING |
| RD10318 | LINE ROLLER SUPPORT |
| RD10345 | DRAG WASHER |
| RD10354 | BEARING SPACER |
| RD10364 | WORM BUSHING (FRONT) |
| RD10367 | ANTI-REVERSE CAM |
| RD10370 | ANTI-REVERSE LEVER COVER |
| RD10374 | OSCILLATING PAWL COVER |
| RD10375 | OSCILLATING SLIDER |
| RD10386 | DRAG CLICK |
| RD10388 | SPOOL SUPPORT |
| Part Number | Part Description |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 2110 | SLIDER RETAINER SCREW |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3177 | KEY WASHER |
| RD 3402 | COVER SCREW |
| RD 3481 | BUSHING |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 4150 | BAIL SPRING COVER |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 4812 | REAR COVER SCREW (SMALL) |
| RD 4829 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6597 | SIDE COVER SCREW (LONG) |
| RD 6606 | SIDE COVER SCREW (MEDIUM) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7463 | LINE ROLLER WASHER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7857 | OSCILLATING PAWL |
| RD 7927 | ADJUSTING WASHER |
| RD 8776 | OIL CAP |
| RD 8850 | |
| RD 8916 | CLICK SPRING |
| RD 9442 | SCREW |
| RD 9841 | CLICK PIN |
| RD 9872 | SCREW |
| RD 9975 | OSCILLATING SLIDER BUSHING |
| RD10000 | LINE ROLLER |
| RD10184 | LINE ROLLER BUSHING |
| RD10318 | LINE ROLLER SUPPORT |
| RD10345 | DRAG WASHER |
| RD10354 | BEARING SPACER |
| RD10364 | WORM BUSHING (FRONT) |
| RD10367 | ANTI-REVERSE CAM |
| RD10370 | ANTI-REVERSE LEVER COVER |
| RD10374 | OSCILLATING PAWL COVER |
| RD10375 | OSCILLATING SLIDER |
| RD10386 | DRAG CLICK |
| RD10388 | SPOOL SUPPORT |
