STRADIC - ST1000MGFB
STRADIC

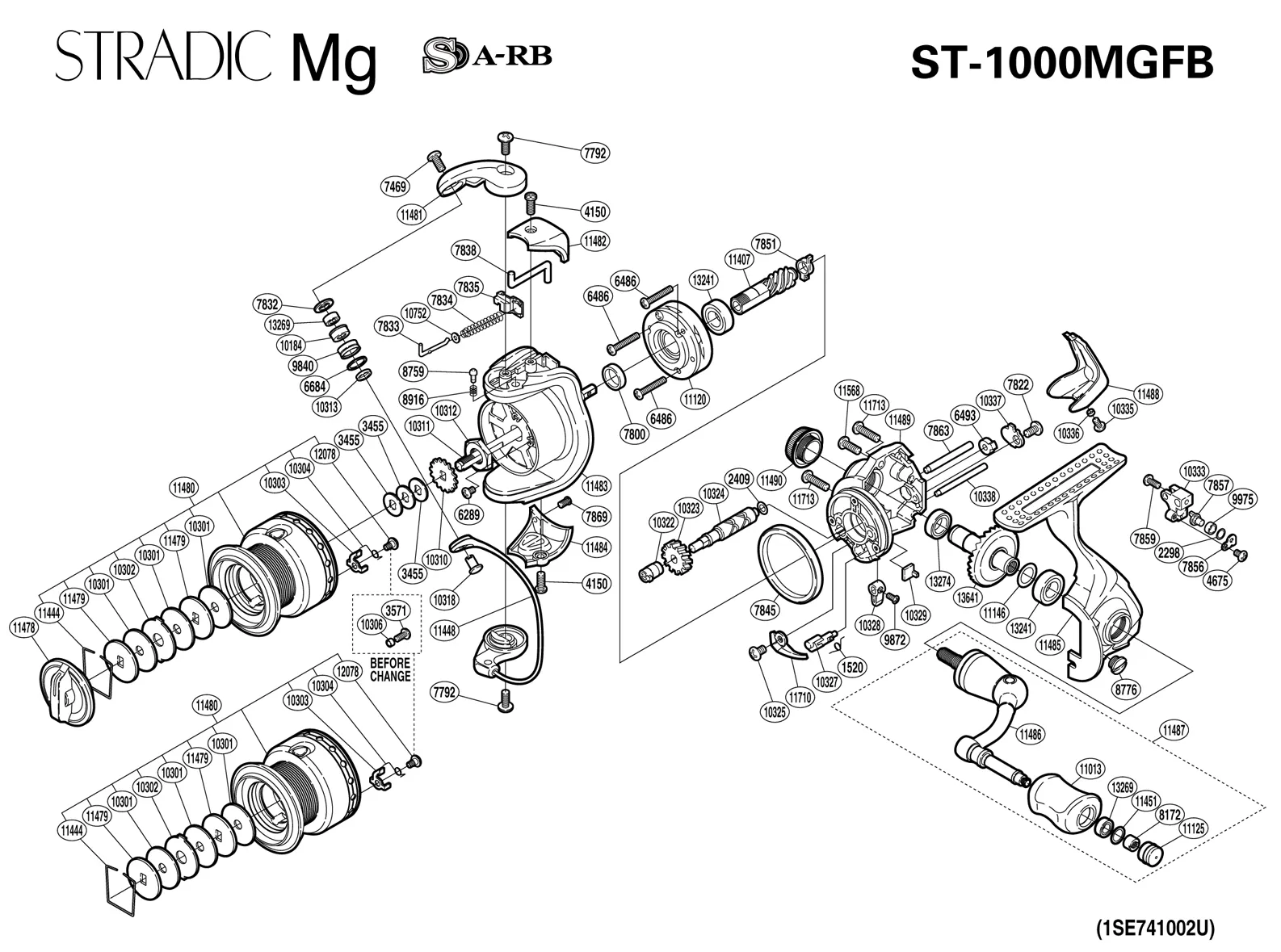

STRADIC - ST1000MGFB: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3571 TGT0312 | TRIP CAM SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7822 | WORM SHAFT RETAINER SCREW |
| RD 7832 | LINE ROLLER WASHER |
| RD 7833 | BAIL SPRING GUIDE (A) |
| RD 7834 | BAIL SPRING |
| RD 7835 | BAIL SPRING SEAT |
| RD 7838 | BAIL TRIP LEVER |
| RD 7845 | FRICTION RING |
| RD 7851 | BUSHING |
| RD 7856 | OSCILLATING PAWL COVER |
| RD 7857 | OSCILLATING PAWL |
| RD 7859 | SLIDER RETAINER SCREW |
| RD 7863 | 0SCILLATING GUIDE (A) |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8172 | HANDLE KNOB NUT |
| RD 8759 | CLICK PIN |
| RD 8776 | OIL CAP |
| RD 8916 | CLICK SPRING |
| RD 9840 | LINE ROLLER |
| RD 9872 | SCREW |
| RD 9975 | OSCILLATING SLIDER BUSHING |
| RD10184 | LINE ROLLER BUSHING |
| RD10301 | DRAG WASHER |
| RD10302 | EARED WASHER |
| RD10303 | DRAG CLICK |
| RD10304 | DRAG COIL SPRING |
| RD10306 | DRAG CLICK HOLDER |
| RD10308 | BALL BEARING MADE IN JAPAN |
| RD10310 | SPOOL SUPPORT |
| RD10311 | MAIN SHAFT |
| Part Number | Part Description |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3571 TGT0312 | TRIP CAM SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7822 | WORM SHAFT RETAINER SCREW |
| RD 7832 | LINE ROLLER WASHER |
| RD 7833 | BAIL SPRING GUIDE (A) |
| RD 7834 | BAIL SPRING |
| RD 7835 | BAIL SPRING SEAT |
| RD 7838 | BAIL TRIP LEVER |
| RD 7845 | FRICTION RING |
| RD 7851 | BUSHING |
| RD 7856 | OSCILLATING PAWL COVER |
| RD 7857 | OSCILLATING PAWL |
| RD 7859 | SLIDER RETAINER SCREW |
| RD 7863 | 0SCILLATING GUIDE (A) |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8172 | HANDLE KNOB NUT |
| RD 8759 | CLICK PIN |
| RD 8776 | OIL CAP |
| RD 8916 | CLICK SPRING |
| RD 9840 | LINE ROLLER |
| RD 9872 | SCREW |
| RD 9975 | OSCILLATING SLIDER BUSHING |
| RD10184 | LINE ROLLER BUSHING |
| RD10301 | DRAG WASHER |
| RD10302 | EARED WASHER |
| RD10303 | DRAG CLICK |
| RD10304 | DRAG COIL SPRING |
| RD10306 | DRAG CLICK HOLDER |
| RD10308 | BALL BEARING MADE IN JAPAN |
| RD10310 | SPOOL SUPPORT |
| RD10311 | MAIN SHAFT |
