STRADIC - ST3000MGFB
STRADIC

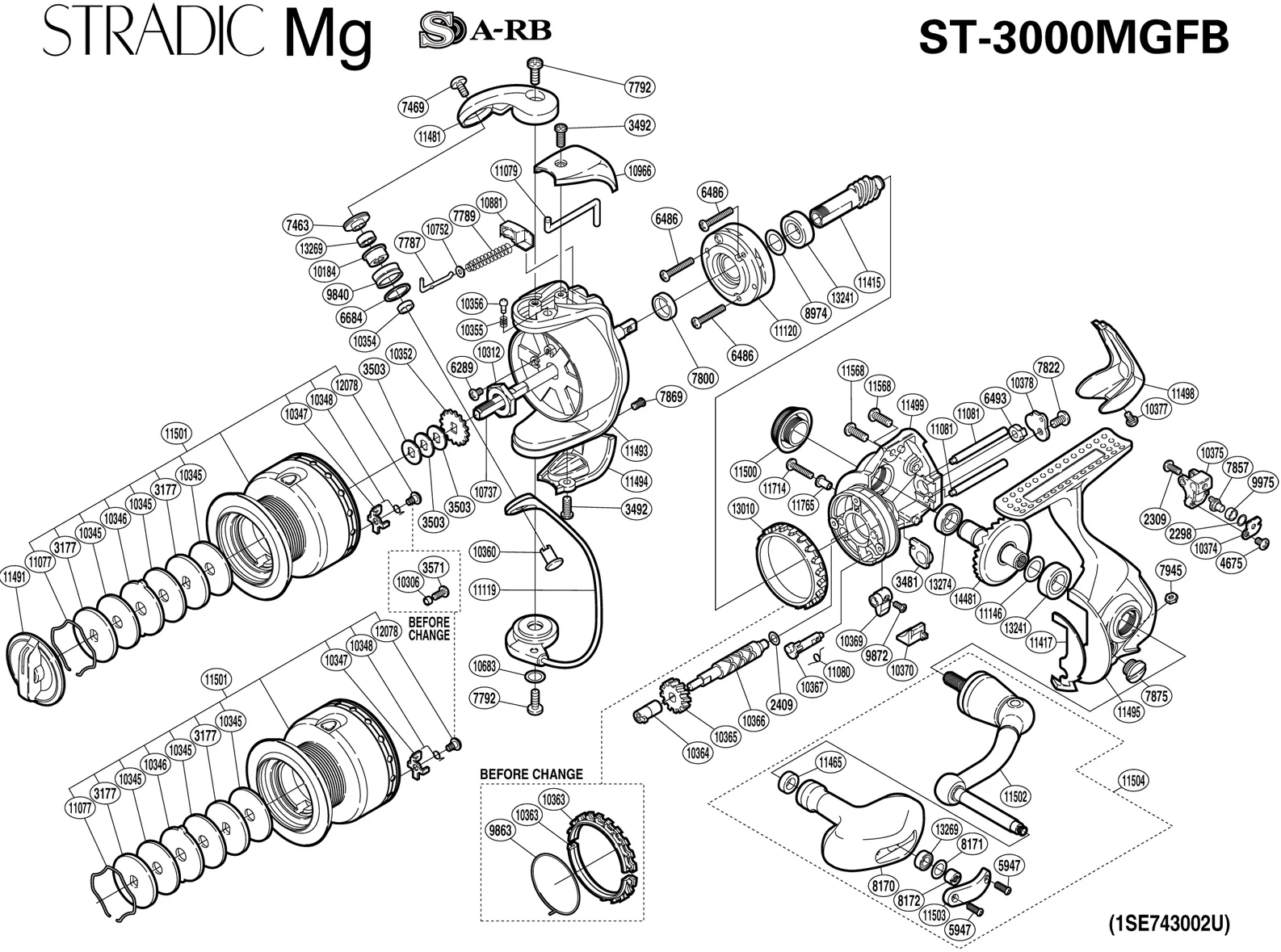

STRADIC - ST3000MGFB: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3177 | KEY WASHER |
| RD 3481 | BUSHING |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3571 TGT0312 | TRIP CAM SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 5947 | DIAL CLICK SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7463 | LINE ROLLER WASHER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7822 | WORM SHAFT RETAINER SCREW |
| RD 7857 | OSCILLATING PAWL |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 7875 | OIL CAP |
| RD 7945 | REAR PROTECTOR NUT (A) |
| RD 8170 | HANDLE KNOB (T TYPE A) |
| RD 8171 | HANDLE KNOB ADJUST WASHER |
| RD 8172 | HANDLE KNOB NUT |
| RD 8974 | ASJUSTING WASHER |
| RD 9840 | LINE ROLLER |
| RD 9863 | FRICTION SPRING |
| RD 9872 | SCREW |
| RD 9975 | OSCILLATING SLIDER BUSHING |
| RD10184 | LINE ROLLER BUSHING |
| RD10306 | DRAG CLICK HOLDER |
| RD10308 | BALL BEARING MADE IN JAPAN |
| RD10312 | ROTOR NUT |
| RD10314 | BALL BEARING |
| RD10320 RD13241 | BALL BEARING |
| RD10345 | DRAG WASHER |
| RD10346 | EARED WASHER |
| RD10347 | DRAG CLICK |
| RD10348 | CLICK SPRING |
| RD10352 | SPOOL SUPPORT |
| RD10354 | BEARING SPACER |
| Part Number | Part Description |
| RD 2298 | SPACER |
| RD 2309 | SLIDER RETAINER SCREW |
| RD 2409 | WORM SHAFT SPACER |
| RD 3177 | KEY WASHER |
| RD 3481 | BUSHING |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3571 TGT0312 | TRIP CAM SCREW |
| RD 4675 | OSCILLATING PAWL COVER SCREW |
| RD 5947 | DIAL CLICK SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6493 | WORM BUSHING (REAR) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7463 | LINE ROLLER WASHER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7822 | WORM SHAFT RETAINER SCREW |
| RD 7857 | OSCILLATING PAWL |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 7875 | OIL CAP |
| RD 7945 | REAR PROTECTOR NUT (A) |
| RD 8170 | HANDLE KNOB (T TYPE A) |
| RD 8171 | HANDLE KNOB ADJUST WASHER |
| RD 8172 | HANDLE KNOB NUT |
| RD 8974 | ASJUSTING WASHER |
| RD 9840 | LINE ROLLER |
| RD 9863 | FRICTION SPRING |
| RD 9872 | SCREW |
| RD 9975 | OSCILLATING SLIDER BUSHING |
| RD10184 | LINE ROLLER BUSHING |
| RD10306 | DRAG CLICK HOLDER |
| RD10308 | BALL BEARING MADE IN JAPAN |
| RD10312 | ROTOR NUT |
| RD10314 | BALL BEARING |
| RD10320 RD13241 | BALL BEARING |
| RD10345 | DRAG WASHER |
| RD10346 | EARED WASHER |
| RD10347 | DRAG CLICK |
| RD10348 | CLICK SPRING |
| RD10352 | SPOOL SUPPORT |
| RD10354 | BEARING SPACER |
