STRADIC - ST5000FI
STRADIC

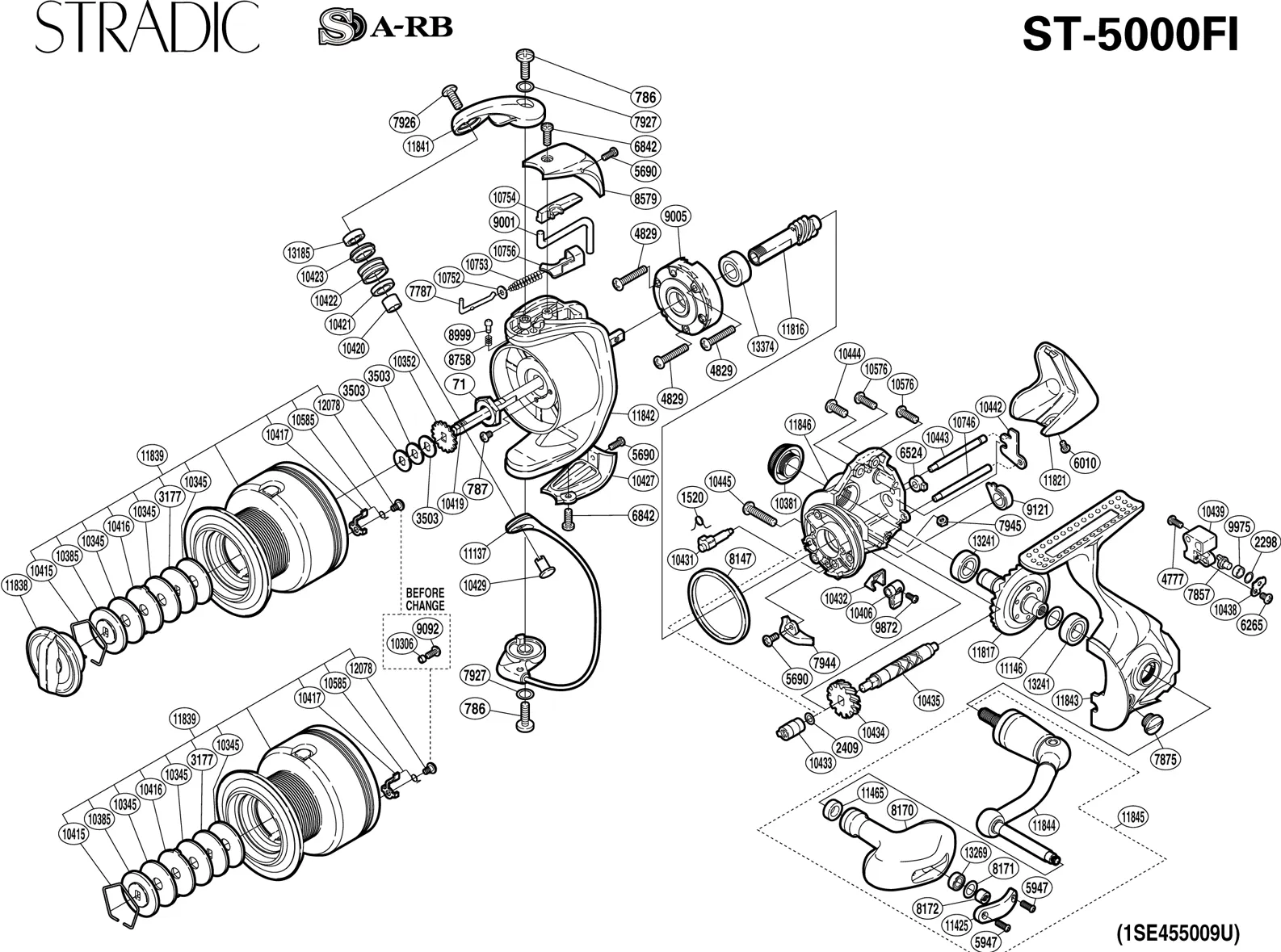

STRADIC - ST5000FI: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 3177 | KEY WASHER |
| RD 3503 | SPOOL WASHER |
| RD 4777 | OSCILLATING PAWL COVER SCREW |
| RD 4829 | ROLLER CLUTCH SCREW |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5947 | DIAL CLICK SCREW |
| RD 6010 | NUT LOCK SCREW |
| RD 6265 | OSCILLATING PAWL COVER SCREW |
| RD 6482 | PROTECTOR SCREW |
| RD 6524 | WORM SHAFT BUSHING (REAR) |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7857 | OSCILLATING PAWL |
| RD 7875 | OIL CAP |
| RD 7926 | LINE ROLLER SCREW |
| RD 7927 | ADJUSTING WASHER |
| RD 7944 | BAIL TRIP STRIKE |
| RD 7945 | REAR PROTECTOR NUT (A) |
| RD 8147 | FRICTION RING |
| RD 8170 | HANDLE KNOB (T TYPE A) |
| RD 8171 | HANDLE KNOB ADJUST WASHER |
| RD 8172 | HANDLE KNOB NUT |
| RD 8579 | BAIL SPRING COVER |
| RD 8758 | CLICK SPRING |
| RD 8999 | CLICK PIN |
| RD 9001 | BAIL TRIP LEVER |
| RD 9005 | |
| RD 9092 | SCREW |
| RD 9121 | BUSHING |
| RD 9872 | SCREW |
| RD 9975 | OSCILLATING SLIDER BUSHING |
| RD10306 | DRAG CLICK HOLDER |
| RD10314 | BALL BEARING |
| RD10320 RD13241 | BALL BEARING |
| RD10345 | DRAG WASHER |
| RD10352 | SPOOL SUPPORT |
| RD10381 | HANDLE SCREW CAP |
| RD10385 | KEY WASHER |
| RD10397 | BALL BEARING |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 3177 | KEY WASHER |
| RD 3503 | SPOOL WASHER |
| RD 4777 | OSCILLATING PAWL COVER SCREW |
| RD 4829 | ROLLER CLUTCH SCREW |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5947 | DIAL CLICK SCREW |
| RD 6010 | NUT LOCK SCREW |
| RD 6265 | OSCILLATING PAWL COVER SCREW |
| RD 6482 | PROTECTOR SCREW |
| RD 6524 | WORM SHAFT BUSHING (REAR) |
| RD 7787 | BAIL SPRING GUIDE (A) |
| RD 7857 | OSCILLATING PAWL |
| RD 7875 | OIL CAP |
| RD 7926 | LINE ROLLER SCREW |
| RD 7927 | ADJUSTING WASHER |
| RD 7944 | BAIL TRIP STRIKE |
| RD 7945 | REAR PROTECTOR NUT (A) |
| RD 8147 | FRICTION RING |
| RD 8170 | HANDLE KNOB (T TYPE A) |
| RD 8171 | HANDLE KNOB ADJUST WASHER |
| RD 8172 | HANDLE KNOB NUT |
| RD 8579 | BAIL SPRING COVER |
| RD 8758 | CLICK SPRING |
| RD 8999 | CLICK PIN |
| RD 9001 | BAIL TRIP LEVER |
| RD 9005 | |
| RD 9092 | SCREW |
| RD 9121 | BUSHING |
| RD 9872 | SCREW |
| RD 9975 | OSCILLATING SLIDER BUSHING |
| RD10306 | DRAG CLICK HOLDER |
| RD10314 | BALL BEARING |
| RD10320 RD13241 | BALL BEARING |
| RD10345 | DRAG WASHER |
| RD10352 | SPOOL SUPPORT |
| RD10381 | HANDLE SCREW CAP |
| RD10385 | KEY WASHER |
| RD10397 | BALL BEARING |
