STRADIC - ST6000FJ
STRADIC

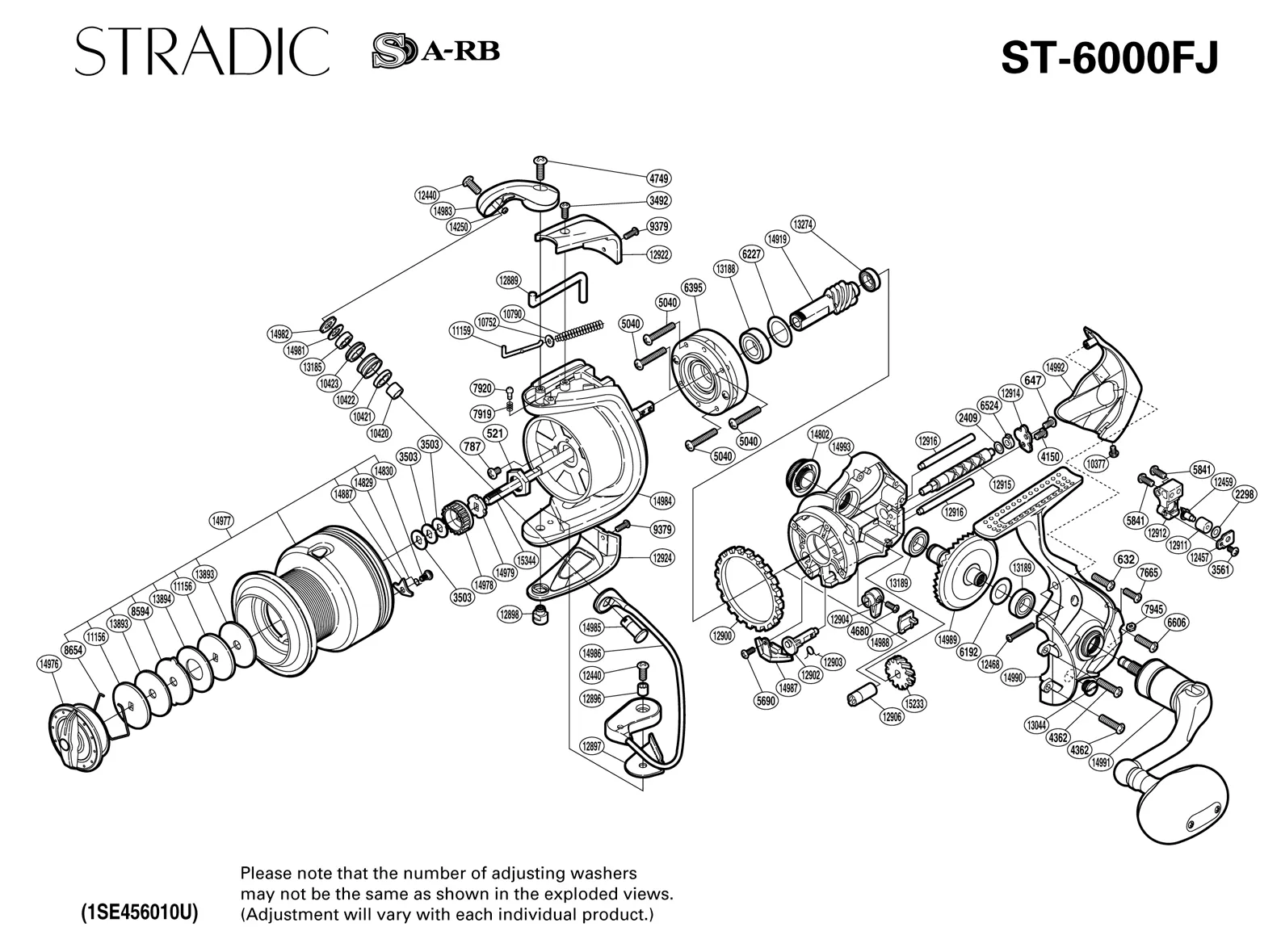

STRADIC - ST6000FJ: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0521 | ROTOR NUT |
| RD 0632 | |
| RD 0647 | NUT LOCK SCREW |
| RD 0787 | |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3561 TT 0632 | ANTI-REVERSE CAM SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4680 | SLIDER RETAINER SCREW |
| RD 4749 | BAIL ARM SCREW |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5841 | SLIDER RETAINER SCREW |
| RD 6192 | DRIVE GEAR WASHER |
| RD 6395 | ROLLER CLUTCH ASSEMBLY |
| RD 6524 | WORM SHAFT BUSHING (REAR) |
| RD 6606 | SIDE COVER SCREW (MEDIUM) |
| RD 7665 | BAIL SPRING COVER SCREW (LARGE |
| RD 7919 | CLICK SPRING |
| RD 7920 | CLICK PIN |
| RD 7945 | REAR PROTECTOR NUT (A) |
| RD 8594 | EARED WASHER |
| RD 8654 | DRAG WASHER RETAINER |
| RD 9379 | SCREW |
| RD10377 | SCREW |
| RD10420 | BEARING SPACER |
| RD10421 | LINE ROLLER COLLAR |
| RD10422 | LINE ROLLER |
| RD10423 | LINE ROLLER BUSHING |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10790 | BAIL SPRING |
| RD11156 | KEY WASHER |
| RD11159 | BAIL SPRING GUIDE A |
| RD12440 | SCREW |
| RD12457 | OSCILLATING PAWL COVER |
| RD12459 | OSCILLATING PAWL |
| RD12468 | SCREW |
| RD12889 | BAIL TRIP LEVER |
| RD12896 | SCREW COLLAR |
| RD12897 | BAIL HOLD SUPPORT SPACER |
| RD12898 | BAIL HOLD SUPPORT SHAFT |
| Part Number | Part Description |
| RD 0521 | ROTOR NUT |
| RD 0632 | |
| RD 0647 | NUT LOCK SCREW |
| RD 0787 | |
| RD 2298 | SPACER |
| RD 2409 | WORM SHAFT SPACER |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3503 | SPOOL WASHER |
| RD 3561 TT 0632 | ANTI-REVERSE CAM SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4362 | SIDE COVER SCREW (LARGE-SILVR) |
| RD 4680 | SLIDER RETAINER SCREW |
| RD 4749 | BAIL ARM SCREW |
| RD 5040 | ROLLER CLUTCH SCREW |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 5841 | SLIDER RETAINER SCREW |
| RD 6192 | DRIVE GEAR WASHER |
| RD 6395 | ROLLER CLUTCH ASSEMBLY |
| RD 6524 | WORM SHAFT BUSHING (REAR) |
| RD 6606 | SIDE COVER SCREW (MEDIUM) |
| RD 7665 | BAIL SPRING COVER SCREW (LARGE |
| RD 7919 | CLICK SPRING |
| RD 7920 | CLICK PIN |
| RD 7945 | REAR PROTECTOR NUT (A) |
| RD 8594 | EARED WASHER |
| RD 8654 | DRAG WASHER RETAINER |
| RD 9379 | SCREW |
| RD10377 | SCREW |
| RD10420 | BEARING SPACER |
| RD10421 | LINE ROLLER COLLAR |
| RD10422 | LINE ROLLER |
| RD10423 | LINE ROLLER BUSHING |
| RD10752 | BAIL SPRING GUIDE A SUPPORT |
| RD10790 | BAIL SPRING |
| RD11156 | KEY WASHER |
| RD11159 | BAIL SPRING GUIDE A |
| RD12440 | SCREW |
| RD12457 | OSCILLATING PAWL COVER |
| RD12459 | OSCILLATING PAWL |
| RD12468 | SCREW |
| RD12889 | BAIL TRIP LEVER |
| RD12896 | SCREW COLLAR |
| RD12897 | BAIL HOLD SUPPORT SPACER |
| RD12898 | BAIL HOLD SUPPORT SHAFT |
