SYMETRE FRONT DRAG - SY1000FJ
SYMETRE FRONT DRAG

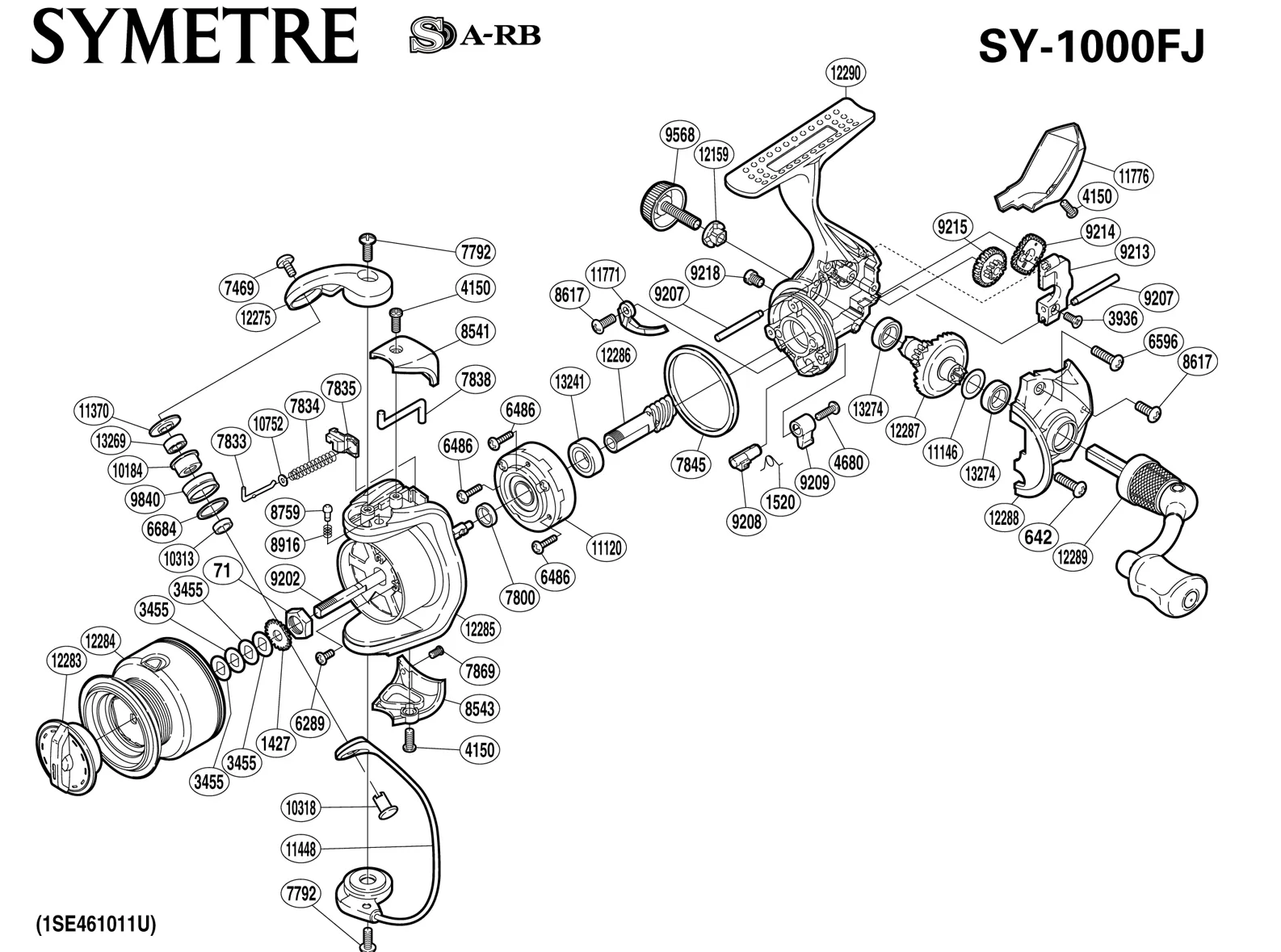

SYMETRE FRONT DRAG - SY1000FJ: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 1427 | SPOOL SUPPORT |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3936 TGT1167 | OSCILLATING PAWL COVER SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4680 | SLIDER RETAINER SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6596 | SIDE COVER SCREW (SHORT) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7833 | BAIL SPRING GUIDE (A) |
| RD 7834 | BAIL SPRING |
| RD 7835 | BAIL SPRING SEAT |
| RD 7838 | BAIL TRIP LEVER |
| RD 7845 | FRICTION RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8541 | BAIL SPRING COVER |
| RD 8543 | BAIL HOLD SUPPORT GUARD |
| RD 8617 | SIDE COVER SCREW (SMALL) |
| RD 8759 | CLICK PIN |
| RD 8916 | CLICK SPRING |
| RD 9202 | MAIN SHAFT |
| RD 9207 | OSCILLATING GUIDE |
| RD 9208 | ANTI-REVERSE CAM |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 1427 | SPOOL SUPPORT |
| RD 1520 | ANTI-REVERSE CAM SPRING |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3936 TGT1167 | OSCILLATING PAWL COVER SCREW |
| RD 4150 | BAIL SPRING COVER |
| RD 4680 | SLIDER RETAINER SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6486 | ROLLER CLUTCH SCREW |
| RD 6596 | SIDE COVER SCREW (SHORT) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7800 | ROTOR RING |
| RD 7833 | BAIL SPRING GUIDE (A) |
| RD 7834 | BAIL SPRING |
| RD 7835 | BAIL SPRING SEAT |
| RD 7838 | BAIL TRIP LEVER |
| RD 7845 | FRICTION RING |
| RD 7869 | ROTOR SIDE COVER SCREW |
| RD 8541 | BAIL SPRING COVER |
| RD 8543 | BAIL HOLD SUPPORT GUARD |
| RD 8617 | SIDE COVER SCREW (SMALL) |
| RD 8759 | CLICK PIN |
| RD 8916 | CLICK SPRING |
| RD 9202 | MAIN SHAFT |
| RD 9207 | OSCILLATING GUIDE |
| RD 9208 | ANTI-REVERSE CAM |
