SYMETRE FRONT DRAG - SY1000FL

SYMETRE FRONT DRAG - SY1000FL

SYMETRE FRONT DRAG

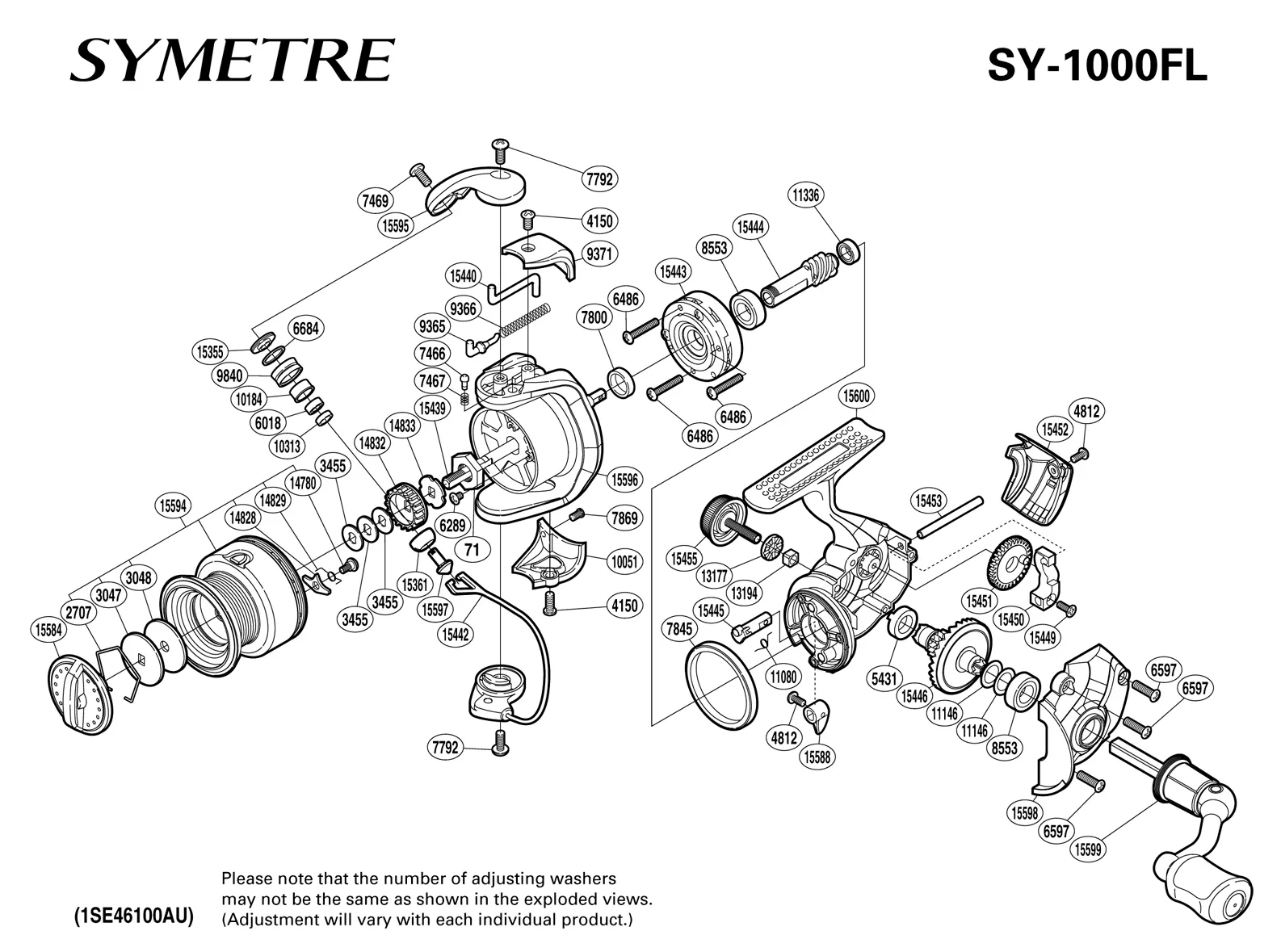

SYMETRE FRONT DRAG - SY1000FL: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
RD 0071ROTOR NUT
RD 2707DRAG WASHERS RETAINER
RD 3047KEY WASHER
RD 3048
RD 3455SPOOL WASHER (3PK)
RD 4150BAIL SPRING COVER
RD 4812REAR COVER SCREW (SMALL)
RD 5431DRIVE GEAR BUSHING
RD 6018BALL BEARING
RD 6289NUT LOCK SCREW
RD 6486ROLLER CLUTCH SCREW
RD 6597SIDE COVER SCREW (LONG)
RD 6684LINE ROLLER SPACER
RD 7466CLICK PIN
RD 7467CLICK SPRING
RD 7469LINE ROLLER SCREW
RD 7792MULIT-PURPOSE SCREW
RD 7800ROTOR RING
RD 7845FRICTION RING
RD 7869ROTOR SIDE COVER SCREW
RD 8553BALL BEARING
RD 9365BAIL SPRING GUIDE
RD 9366BAIL SPRING
RD 9371BAIL SPRING COVER
RD 9840LINE ROLLER
RD10051BAIL HOLD SUPPORT GUARD
RD10184LINE ROLLER BUSHING
RD10313BEARING SPACER
RD11080ANTI-REVERSE CAM SPRING
RD11146WASHER
RD11336BALL BEARING
Part NumberPart Description
RD 0071ROTOR NUT
RD 2707DRAG WASHERS RETAINER
RD 3047KEY WASHER
RD 3048
RD 3455SPOOL WASHER (3PK)
RD 4150BAIL SPRING COVER
RD 4812REAR COVER SCREW (SMALL)
RD 5431DRIVE GEAR BUSHING
RD 6018BALL BEARING
RD 6289NUT LOCK SCREW
RD 6486ROLLER CLUTCH SCREW
RD 6597SIDE COVER SCREW (LONG)
RD 6684LINE ROLLER SPACER
RD 7466CLICK PIN
RD 7467CLICK SPRING
RD 7469LINE ROLLER SCREW
RD 7792MULIT-PURPOSE SCREW
RD 7800ROTOR RING
RD 7845FRICTION RING
RD 7869ROTOR SIDE COVER SCREW
RD 8553BALL BEARING
RD 9365BAIL SPRING GUIDE
RD 9366BAIL SPRING
RD 9371BAIL SPRING COVER
RD 9840LINE ROLLER
RD10051BAIL HOLD SUPPORT GUARD
RD10184LINE ROLLER BUSHING
RD10313BEARING SPACER
RD11080ANTI-REVERSE CAM SPRING
RD11146WASHER
RD11336BALL BEARING
