SYNCOPATE - SC1000FG

SYNCOPATE - SC1000FG

SYNCOPATE

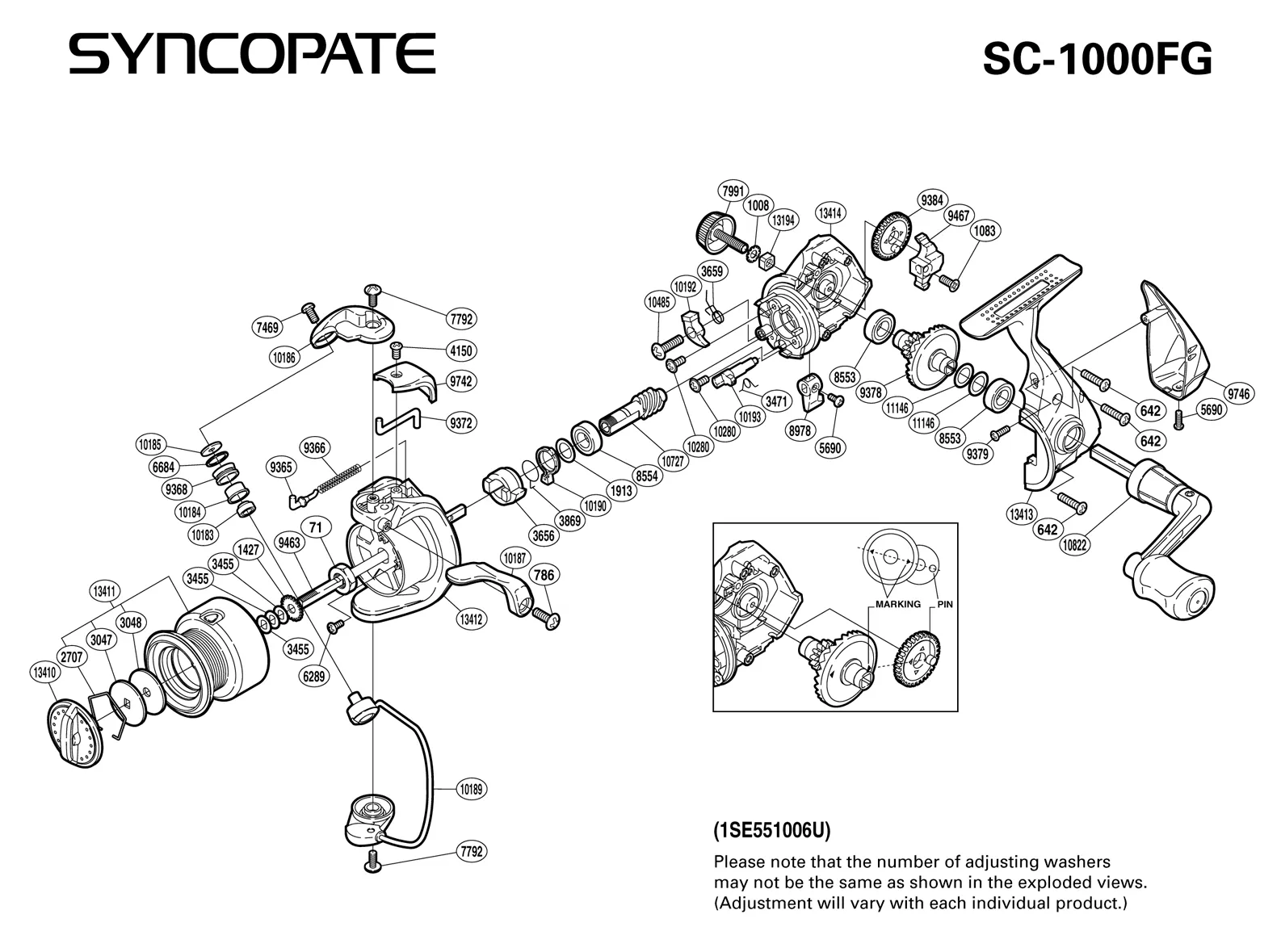

SYNCOPATE - SC1000FG: schema di montaggio (esploso) e parti di ricambio.

Part NumberPart Description
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 0786BAIL ARM SCREW
RD 1008HANDLE LOCK WASHER
RD 1083SLIDER RETAINER SCREW
RD 1427SPOOL SUPPORT
RD 1913
RD 2707DRAG WASHERS RETAINER
RD 3047KEY WASHER
RD 3048
RD 3455SPOOL WASHER (3PK)
RD 3471ANTI-REVERSE CAM SPRING
RD 3656ANTI-REVERSE RATCHET
RD 3659ANTI-REVERSE PAWL SPRING
RD 3869ANTI-REVERSE LOCK OUT SPRING
RD 4150BAIL SPRING COVER
RD 5690MULTI-PURPOSE SCREW
RD 6289NUT LOCK SCREW
RD 6684LINE ROLLER SPACER
RD 7469LINE ROLLER SCREW
RD 7792MULIT-PURPOSE SCREW
RD 7991HANDLE SCREW CAP
RD 8553BALL BEARING
RD 8554BALL BEARING
RD 8978ANTI-REVERSE LEVER
RD 9365BAIL SPRING GUIDE
RD 9366BAIL SPRING
RD 9368LINE ROLLER
Part NumberPart Description
RD 0071ROTOR NUT
RD 0642SIDE COVER SCREW (B)
RD 0786BAIL ARM SCREW
RD 1008HANDLE LOCK WASHER
RD 1083SLIDER RETAINER SCREW
RD 1427SPOOL SUPPORT
RD 1913
RD 2707DRAG WASHERS RETAINER
RD 3047KEY WASHER
RD 3048
RD 3455SPOOL WASHER (3PK)
RD 3471ANTI-REVERSE CAM SPRING
RD 3656ANTI-REVERSE RATCHET
RD 3659ANTI-REVERSE PAWL SPRING
RD 3869ANTI-REVERSE LOCK OUT SPRING
RD 4150BAIL SPRING COVER
RD 5690MULTI-PURPOSE SCREW
RD 6289NUT LOCK SCREW
RD 6684LINE ROLLER SPACER
RD 7469LINE ROLLER SCREW
RD 7792MULIT-PURPOSE SCREW
RD 7991HANDLE SCREW CAP
RD 8553BALL BEARING
RD 8554BALL BEARING
RD 8978ANTI-REVERSE LEVER
RD 9365BAIL SPRING GUIDE
RD 9366BAIL SPRING
RD 9368LINE ROLLER
