SYNCOPATE - SC2500FG
SYNCOPATE

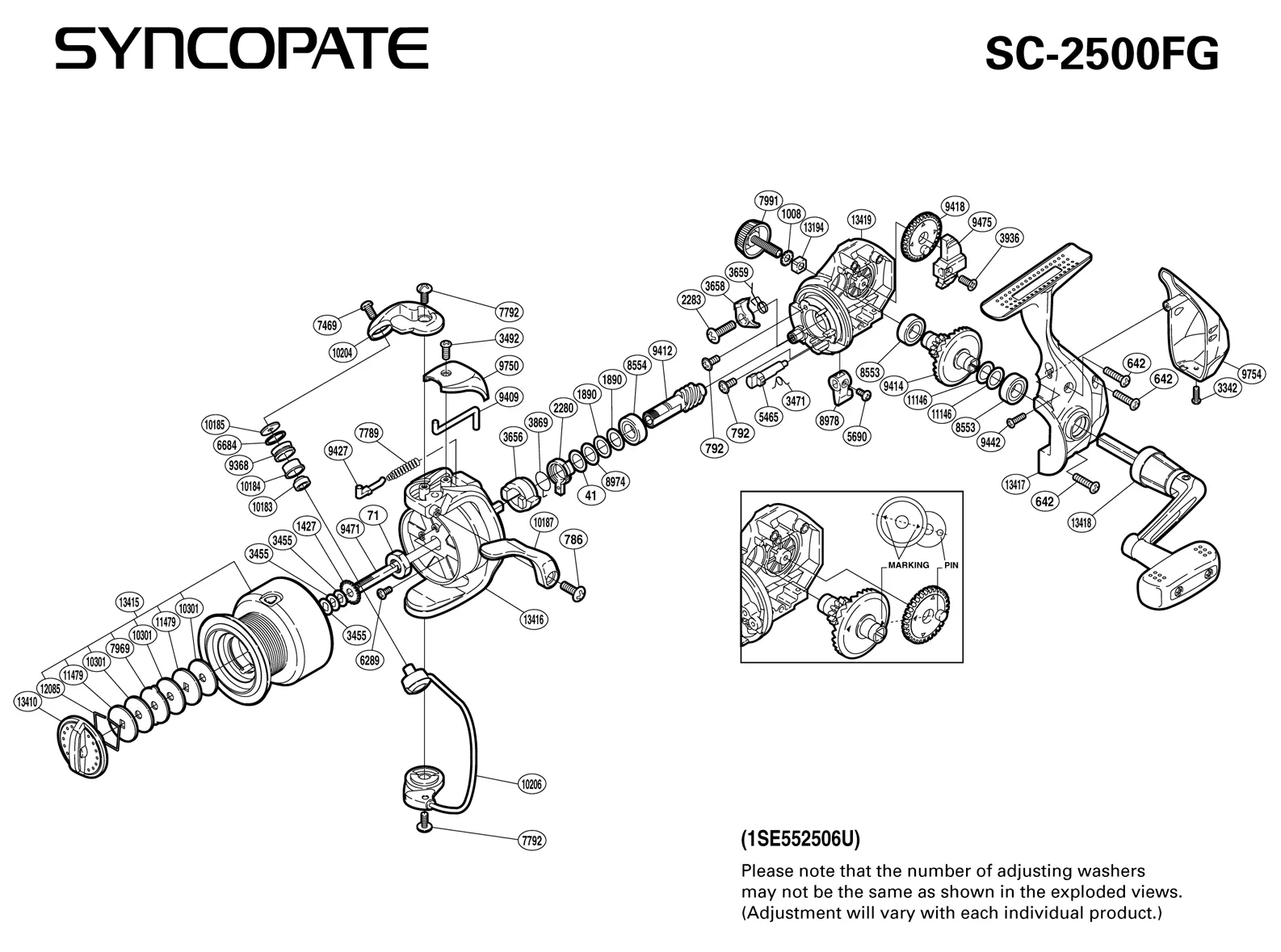

SYNCOPATE - SC2500FG: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0041 | DRIVE GEAR WASHER |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0786 | BAIL ARM SCREW |
| RD 0792 | BEARING RETAINER SCREW |
| RD 1008 | HANDLE LOCK WASHER |
| RD 1427 | SPOOL SUPPORT |
| RD 1890 TGT0224 | BUSHING WASHER |
| RD 2280 | ANTI-REVERSE LOCK OUT |
| RD 2283 | ANTI-REVERSE PAWL SCREW |
| RD 3342 | BEARING RETAINER SCREW |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3471 | ANTI-REVERSE CAM SPRING |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3656 | ANTI-REVERSE RATCHET |
| RD 3658 | ANTI-REVERSE PAWL |
| RD 3659 | ANTI-REVERSE PAWL SPRING |
| RD 3869 | ANTI-REVERSE LOCK OUT SPRING |
| RD 3936 TGT1167 | OSCILLATING PAWL COVER SCREW |
| RD 5465 | ANTI-REVERSE CAM |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7969 | EARED WASHER |
| RD 7991 | HANDLE SCREW CAP |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| Part Number | Part Description |
| RD 0041 | DRIVE GEAR WASHER |
| RD 0071 | ROTOR NUT |
| RD 0642 | SIDE COVER SCREW (B) |
| RD 0786 | BAIL ARM SCREW |
| RD 0792 | BEARING RETAINER SCREW |
| RD 1008 | HANDLE LOCK WASHER |
| RD 1427 | SPOOL SUPPORT |
| RD 1890 TGT0224 | BUSHING WASHER |
| RD 2280 | ANTI-REVERSE LOCK OUT |
| RD 2283 | ANTI-REVERSE PAWL SCREW |
| RD 3342 | BEARING RETAINER SCREW |
| RD 3455 | SPOOL WASHER (3PK) |
| RD 3471 | ANTI-REVERSE CAM SPRING |
| RD 3492 | REAR PROTECTOR SCREW |
| RD 3656 | ANTI-REVERSE RATCHET |
| RD 3658 | ANTI-REVERSE PAWL |
| RD 3659 | ANTI-REVERSE PAWL SPRING |
| RD 3869 | ANTI-REVERSE LOCK OUT SPRING |
| RD 3936 TGT1167 | OSCILLATING PAWL COVER SCREW |
| RD 5465 | ANTI-REVERSE CAM |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6289 | NUT LOCK SCREW |
| RD 6684 | LINE ROLLER SPACER |
| RD 7469 | LINE ROLLER SCREW |
| RD 7789 | BAIL SPRING |
| RD 7792 | MULIT-PURPOSE SCREW |
| RD 7969 | EARED WASHER |
| RD 7991 | HANDLE SCREW CAP |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
