SYNCOPATE - SC4000FG
SYNCOPATE

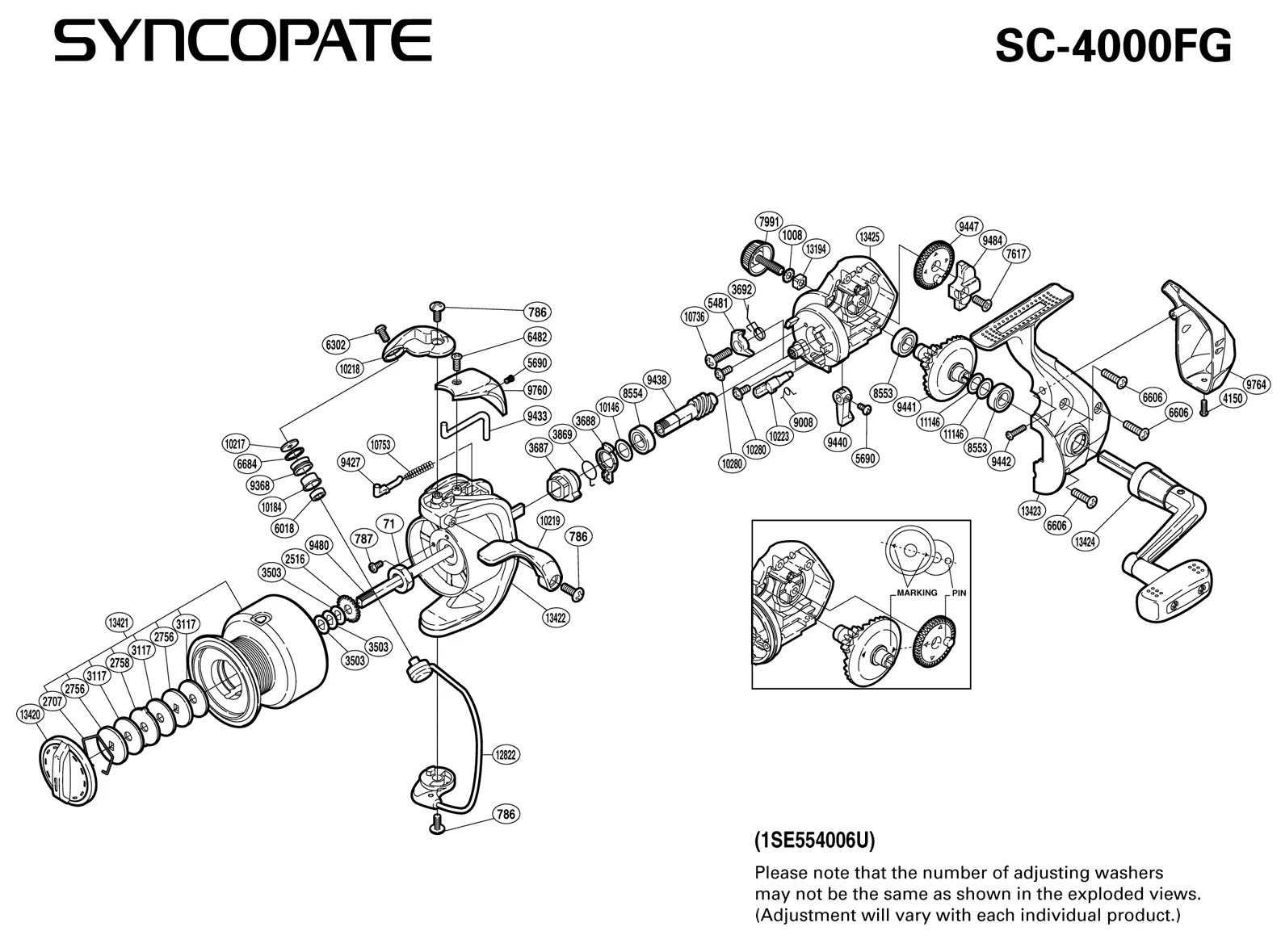

SYNCOPATE - SC4000FG: schema di montaggio (esploso) e parti di ricambio.
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 1008 | HANDLE LOCK WASHER |
| RD 2516 | SPOOL SUPPORT |
| RD 2707 | DRAG WASHERS RETAINER |
| RD 2756 | KEY WASHER |
| RD 2758 | |
| RD 3117 | |
| RD 3503 | SPOOL WASHER |
| RD 3687 | ANTI-REVERSE RATCHET |
| RD 3688 | ANTI-REVERSE LOCK OUT |
| RD 3692 | ANTI-REVERSE PAWL SPRING |
| RD 3869 | ANTI-REVERSE LOCK OUT SPRING |
| RD 4150 | BAIL SPRING COVER |
| RD 5481 | ANTI-REVERSE PAWL |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6018 | BALL BEARING |
| RD 6302 | LINE ROLLER SCREW |
| RD 6482 | PROTECTOR SCREW |
| RD 6606 | SIDE COVER SCREW (MEDIUM) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7617 | SLIDER RETAINER SCREW |
| RD 7991 | HANDLE SCREW CAP |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 9008 | ANTI-REVERSE CAM SPRING |
| RD 9368 | LINE ROLLER |
| Part Number | Part Description |
| RD 0071 | ROTOR NUT |
| RD 0786 | BAIL ARM SCREW |
| RD 0787 | |
| RD 1008 | HANDLE LOCK WASHER |
| RD 2516 | SPOOL SUPPORT |
| RD 2707 | DRAG WASHERS RETAINER |
| RD 2756 | KEY WASHER |
| RD 2758 | |
| RD 3117 | |
| RD 3503 | SPOOL WASHER |
| RD 3687 | ANTI-REVERSE RATCHET |
| RD 3688 | ANTI-REVERSE LOCK OUT |
| RD 3692 | ANTI-REVERSE PAWL SPRING |
| RD 3869 | ANTI-REVERSE LOCK OUT SPRING |
| RD 4150 | BAIL SPRING COVER |
| RD 5481 | ANTI-REVERSE PAWL |
| RD 5690 | MULTI-PURPOSE SCREW |
| RD 6018 | BALL BEARING |
| RD 6302 | LINE ROLLER SCREW |
| RD 6482 | PROTECTOR SCREW |
| RD 6606 | SIDE COVER SCREW (MEDIUM) |
| RD 6684 | LINE ROLLER SPACER |
| RD 7617 | SLIDER RETAINER SCREW |
| RD 7991 | HANDLE SCREW CAP |
| RD 8553 | BALL BEARING |
| RD 8554 | BALL BEARING |
| RD 9008 | ANTI-REVERSE CAM SPRING |
| RD 9368 | LINE ROLLER |
